Description

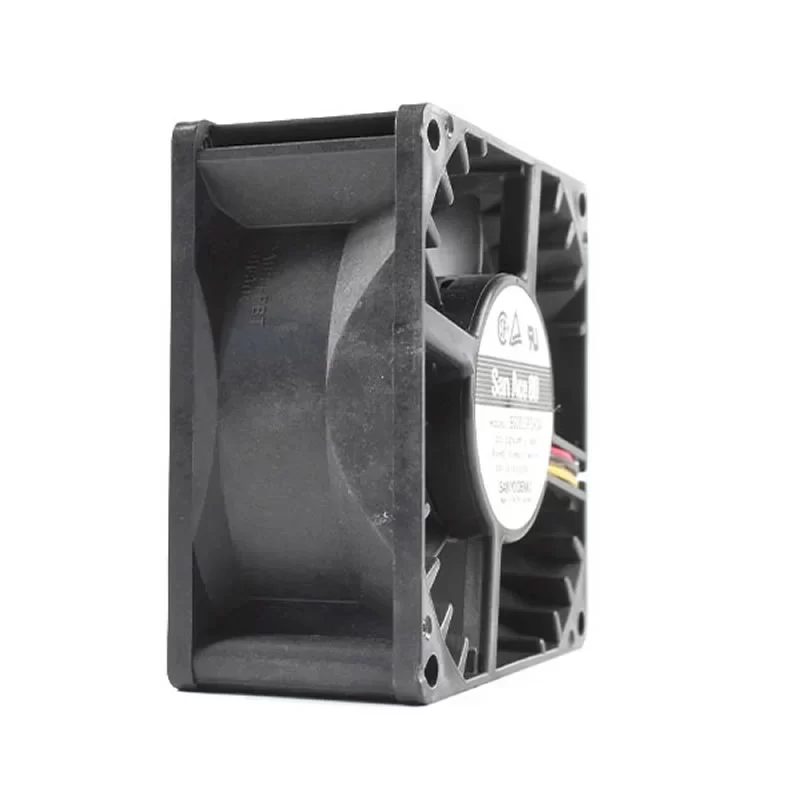

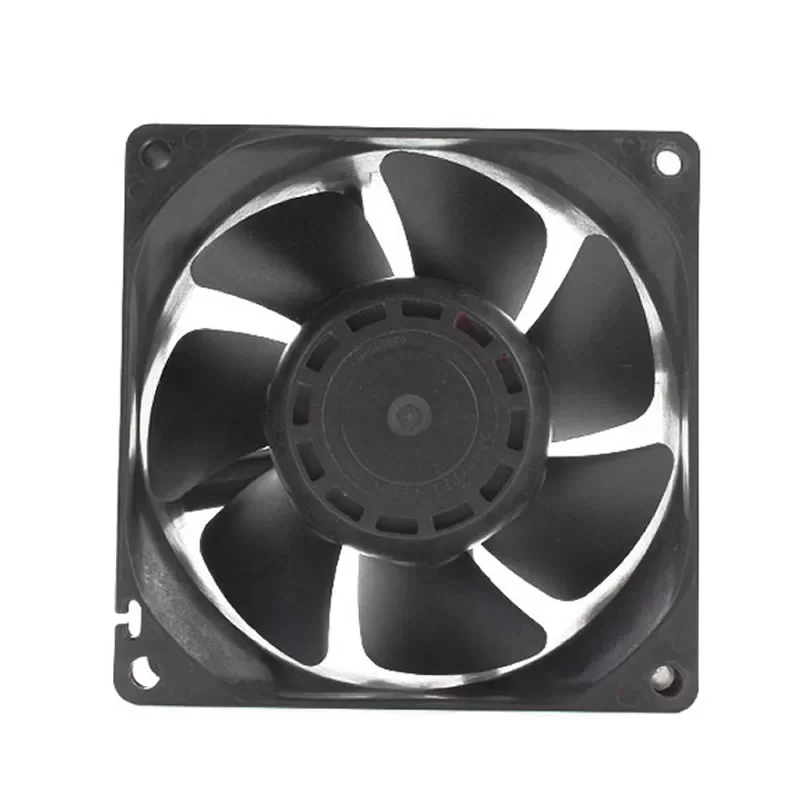

The Sanyo Denki 9G0812P1K04 is a high-performance 12VDC 80 x 80 x 38 mm DC axial fan, engineered for reliable thermal management in industrial and IT systems. Featuring dual ball bearings, PWM speed control, and a flame-retardant PBT plastic frame and impeller (UL 94V-0), this compact cooling fan delivers an airflow of 91.0 CFM (154.6 m³/h / 2.58 m³/min) and a static pressure of 23.45 mmH₂O (230 Pa / 0.923 inH₂O) at a rated speed of 6,300 RPM. Operating on a voltage range of 10.8 – 13.2 VDC, it draws a maximum current of 1.8 A with a power consumption of 21.6 W and includes 4-wire lead connections with PWM speed control and an integrated pulse sensor (tachometer). Built for continuous high-reliability cooling, it weighs 0.22 kg, operates quietly at 51 dBA within a temperature range of -20 to +70 °C, offers a life expectancy of 50,000 hours, and holds safety certifications including UL, CSA, TUV, and CE.
9G0812P1K04 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9G0812P1K04
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Dimensions: 80 x 80 x 38 mm
Weight: 0.22 kg
Frame Material: Plastic (PBT UL 94V-0)
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (4 Wires)
Control / Sensor Signal: PWM Speed Control & Pulse Sensor (Tachometer)
Rated Speed: 6,300 RPM (min⁻¹)
Max. Current Draw: 1.8 A
Max. Power Consumption: 21.6 W
Max. Air Flow: 91.0 CFM (154.6 m³/h / 2.58 m³/min)
Max. Static Pressure: 23.45 mmH₂O (230 Pa / 0.923 inH₂O)
Noise Level: 51 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 50,000 hours
Safety Approvals: UL, CSA, TUV, CE
Application
The Sanyo Denki 9G0812P1K04 is deployed in server enclosures, telecommunication power systems, networking equipment, industrial control cabinets, power distribution units, and medical electronic devices.
