Description

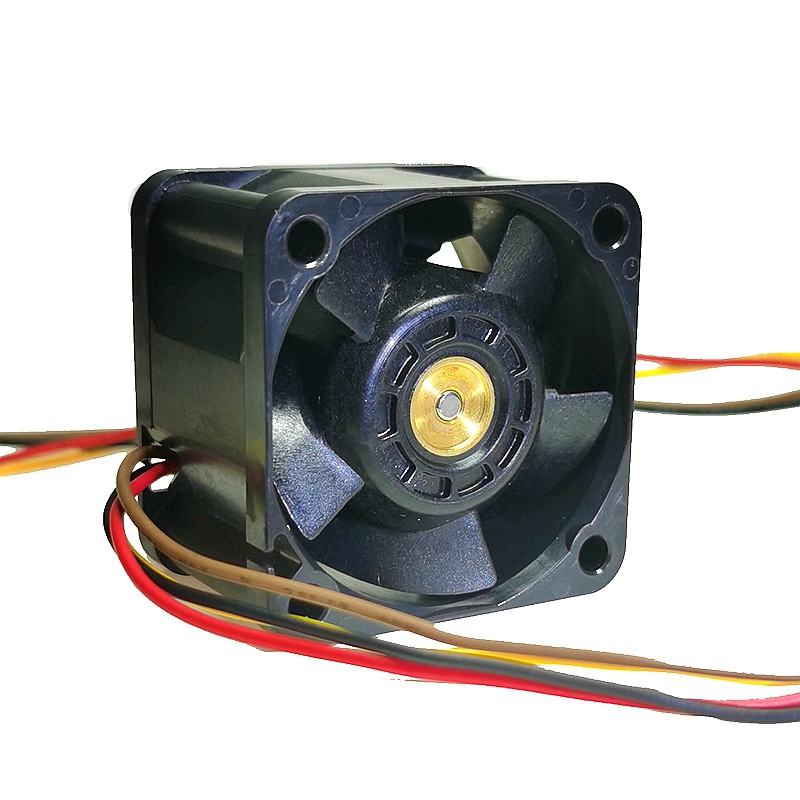

The Sanyo Denki 9GA0424P3J001 is an exceptionally compact and powerful DC Axial Cooling Fan from the renowned San Ace 40 series. Measuring just 40mm x 40mm x 28mm, it operates on 24V DC power, drawing 0.27A of current for a 6.48W power consumption. This fan is distinguished by its incredibly high speed of 18,000 RPM, which enables it to deliver a substantial airflow of 23.7 CFM and an impressive static pressure of 2.15 inch-H2O. While powerful, it produces a noise level of 54 dBA. Equipped with 4-wire leads, it offers advanced control capabilities including a pulse sensor for speed monitoring and PWM input for precise speed adjustment. Utilizing ball bearings for enhanced durability, the 9GA0424P3J001 has a long life expectancy and incorporates safety features like reverse polarity and locked rotor protection, making it ideal for high-density electronic systems, inverters, and equipment requiring extreme cooling performance in limited space.
9GA0424P3J001 new original Sanyo 4028/24V DC cooling fan 4-wire PWM fan
Manufacturer: Sanyo Denki
Model Number: 9GA0424P3J001
Series: San Ace 40
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 21.6V to 26.4V DC
Rated Current: 0.27A
Rated Power: 6.48W
Speed: 18,000 RPM
Airflow: 23.7 CFM (or 0.67 m³/min)
Static Pressure: 2.15 inch-H2O (or 535 Pa)
Noise Level: 54 dBA
Dimensions: 40mm x 40mm x 28mm
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (70,000 hours at 40°C)
Features: Pulse Sensor (Tachometer output), PWM control input, Reverse Polarity Protection, Locked Rotor Burnout Protection
