The ebmpapst A6D630-AN01-01 is a high-performance 400VAC three-phase AC axial fan with an impeller size of 630 mm, specifically engineered for heavy-duty thermal management in commercial and industrial HVAC systems. Featuring a robust M6D110-GF motor and a 5-blade sickle-shaped HyBlade design (press-fitted sheet steel blank sprayed with PP plastic), it delivers optimized aerodynamic throughput and high durability. Operating at a nominal speed of 890 RPM under a 400V 50Hz Delta connection, it achieves an optimum ErP air flow of 4423.19 CFM (7515 m³/h) and a maximum static pressure of 0.42 inAq (105 Pa). The fan integrates a terminal box for Δ/Y dual-speed motor connections and is built with an IP54 protection class, H2 moisture protection, and precision ball bearings for superior reliability. This model ensures stable cooling performance across demanding continuous-duty condenser, chiller, and large-scale ventilation applications.

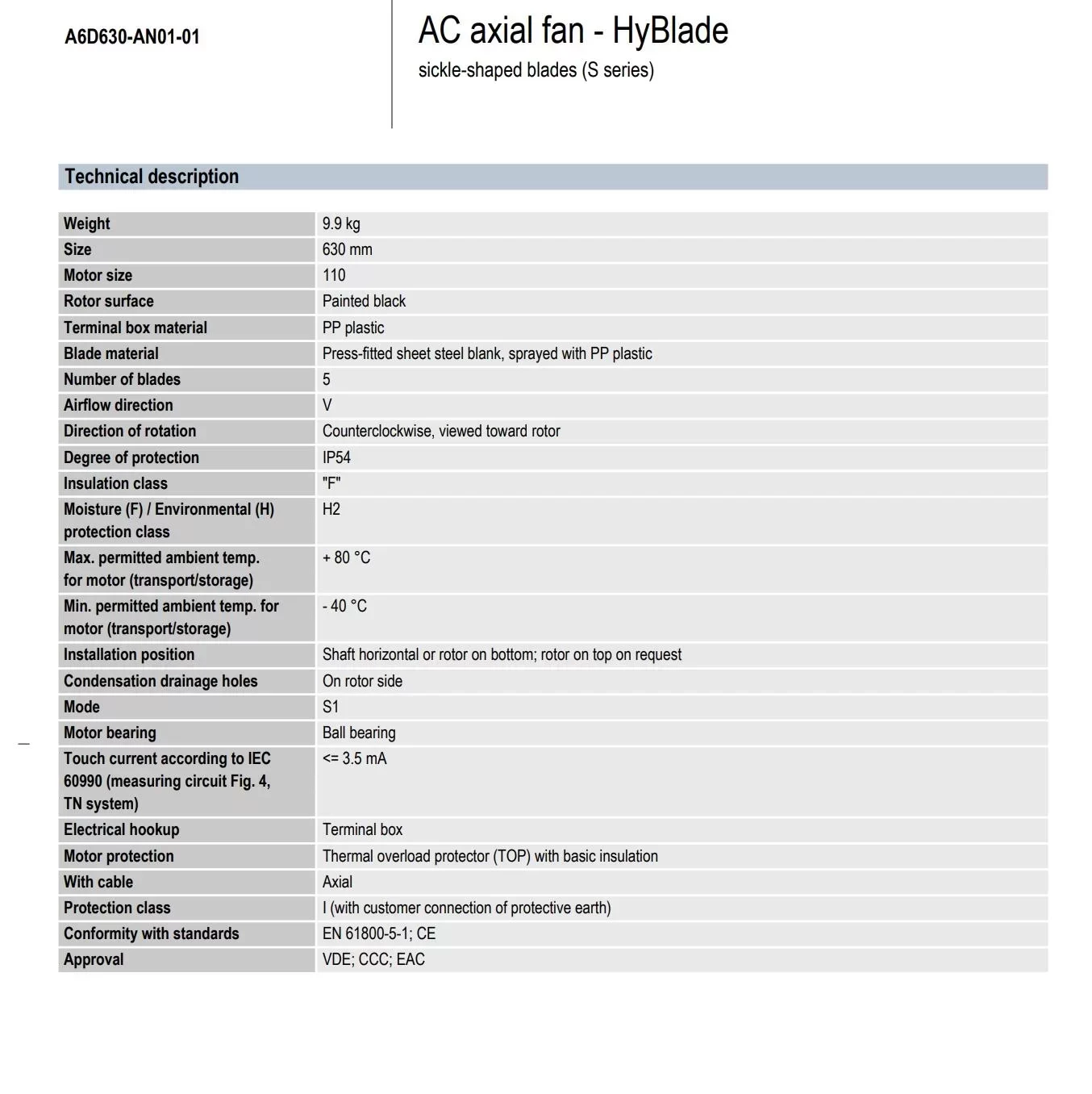

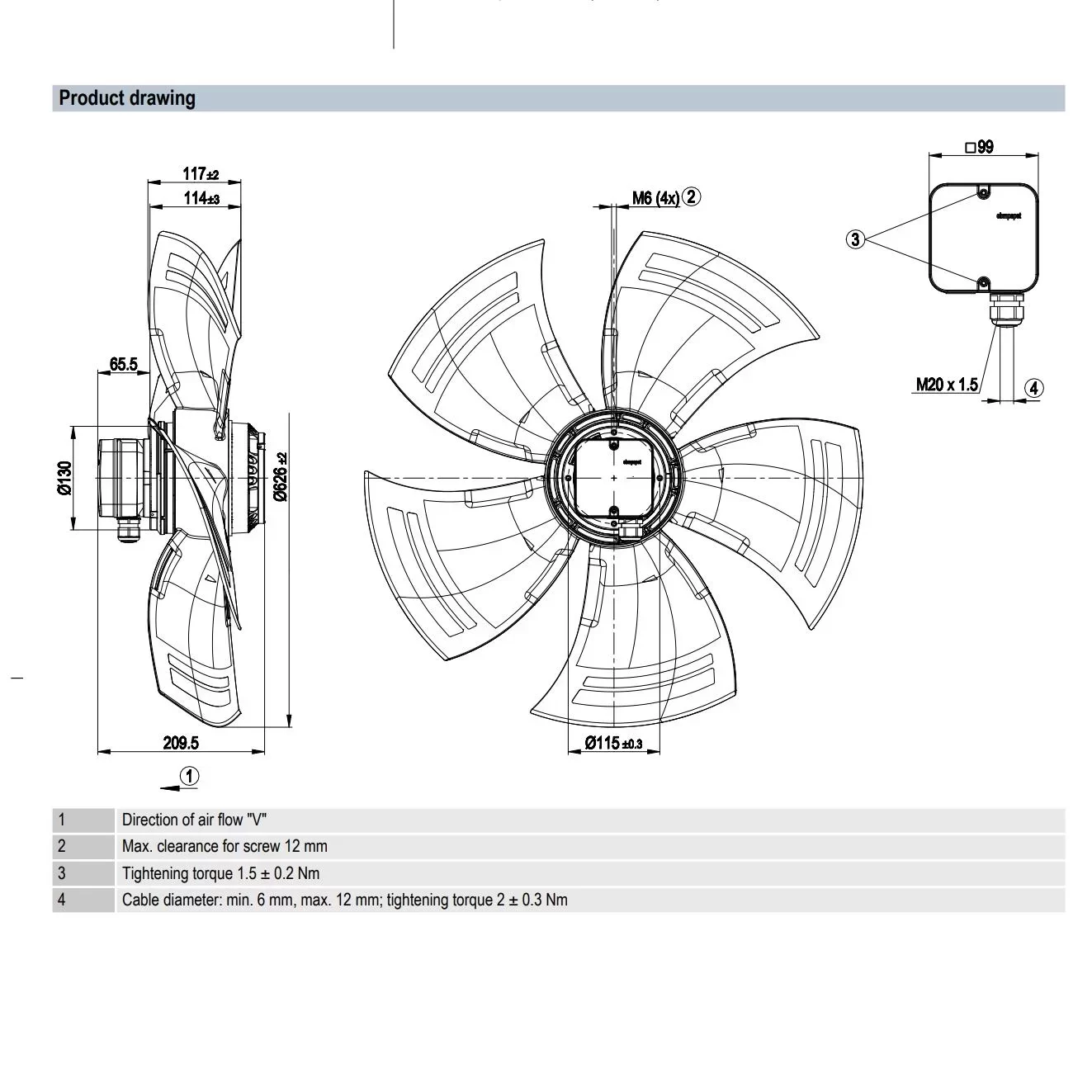

A6D630-AN01-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: A6D630-AN01-01
Type: AC Axial Fan
Motor Model: M6D110-GF
Impeller Size: Ø 630 mm
Weight: 9.9 kg
Blade Material: Press-fitted sheet steel blank, sprayed with PP plastic
Rotor Surface: Painted black
Terminal Box Material: PP plastic
Number of Blades: 5 (Sickle-shaped)
Direction of Rotation: Counterclockwise, viewed toward rotor
Direction of Airflow: “V” (Sucking over blades)
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation Drainage Holes: On rotor side
Motor Bearing: Ball Bearing
Phase: 3~ (Three-Phase)

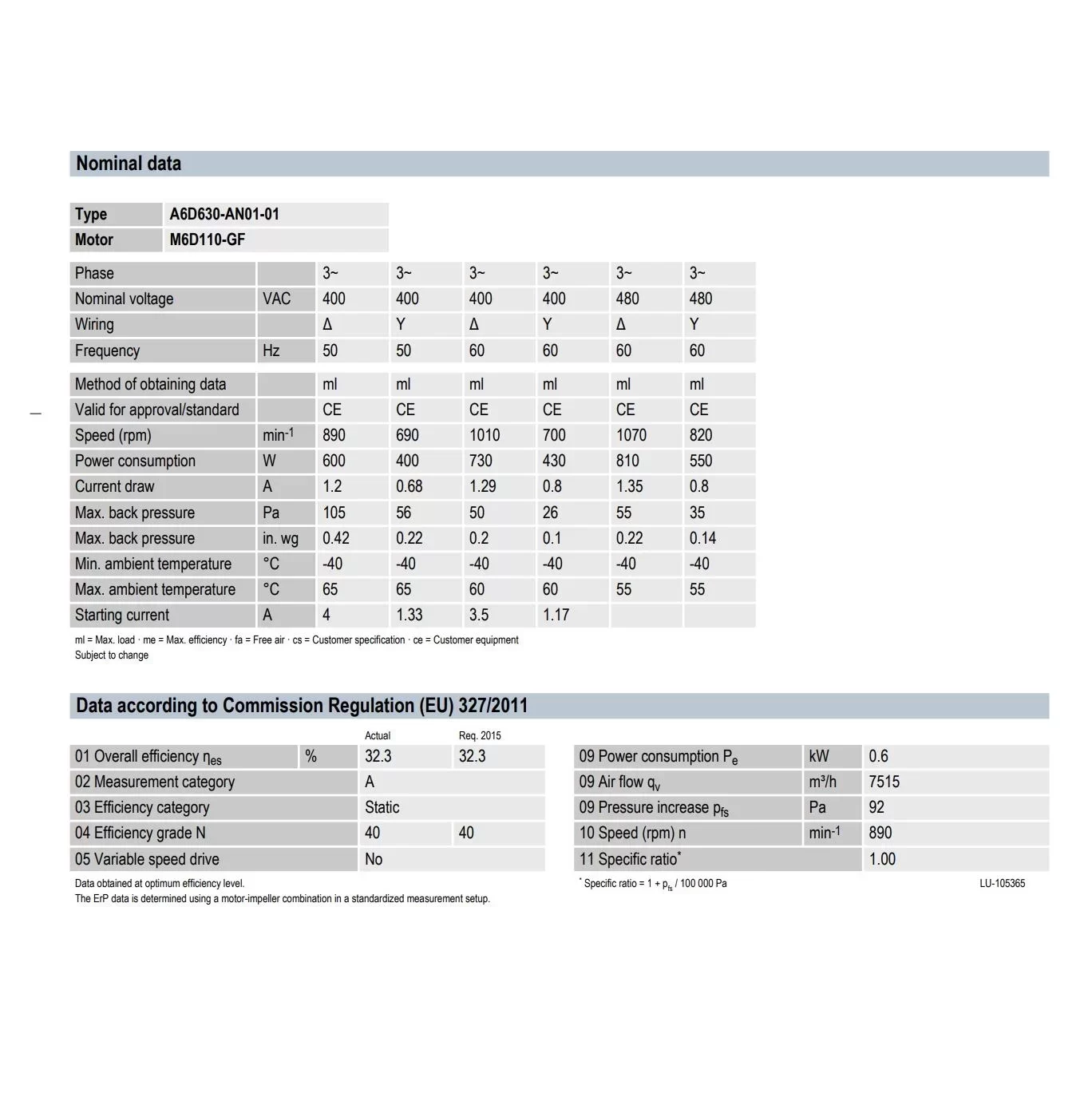

Data Sequence: (400V 50Hz Δ / 400V 50Hz Y / 400V 60Hz Δ / 400V 60Hz Y / 480V 60Hz Δ / 480V 60Hz Y)
Nominal Voltage: 400 / 400 / 400 / 400 / 480 / 480 VAC
Frequency: 50 / 50 / 60 / 60 / 60 / 60 Hz
Wiring: Δ / Y / Δ / Y / Δ / Y
Rated Speed: 890 / 690 / 1010 / 700 / 1070 / 820 RPM (min⁻¹)
Max. Power Consumption: 600 / 400 / 730 / 430 / 810 / 550 W
Max. Current Draw: 1.20 / 0.68 / 1.29 / 0.80 / 1.35 / 0.80 A
Starting Current: 4.0 / 1.33 / 3.5 / 1.17 / – / – A
Max. Air Flow (ErP Optimum): 4423.19 CFM (7515 m³/h / 125.25 m³/min)
Max. Static Pressure: 10.71 / 5.71 / 5.10 / 2.65 / 5.61 / 3.57 mmH₂O (105 / 56 / 50 / 26 / 55 / 35 Pa / 0.42 / 0.22 / 0.20 / 0.10 / 0.22 / 0.14 inAq)
Overall Efficiency (Actual): 32.3 %
Measurement Category: A
Efficiency Category: Static
Efficiency Grade N: 40
Operating Mode: S1
Ingress Protection: IP54
Insulation Class: F
Moisture / Environmental Protection Class: H2
Motor Protection: Thermal overload protector (TOP) with basic insulation
Electrical Hookup: Terminal box (Axial cable entry)
Protection Class: I (with customer connection of protective earth)
Touch Current: <= 3.5 mA
Min. Ambient Temperature: -40 °C (Across all operations)
Max. Ambient Temperature: 65 / 65 / 60 / 60 / 55 / 55 °C
Conformity with Standards: EN 61800-5-1, CE
Safety Approvals: VDE, CCC, EAC
Application
The ebmpapst A6D630-AN01-01 AC axial fan is specifically designed for cooling commercial refrigeration condensers, evaporators, industrial fluid coolers, HVAC heat exchangers, livestock ventilation systems, and large electronic cabinet exhaust assemblies requiring heavy-duty continuous ventilation.
