Description

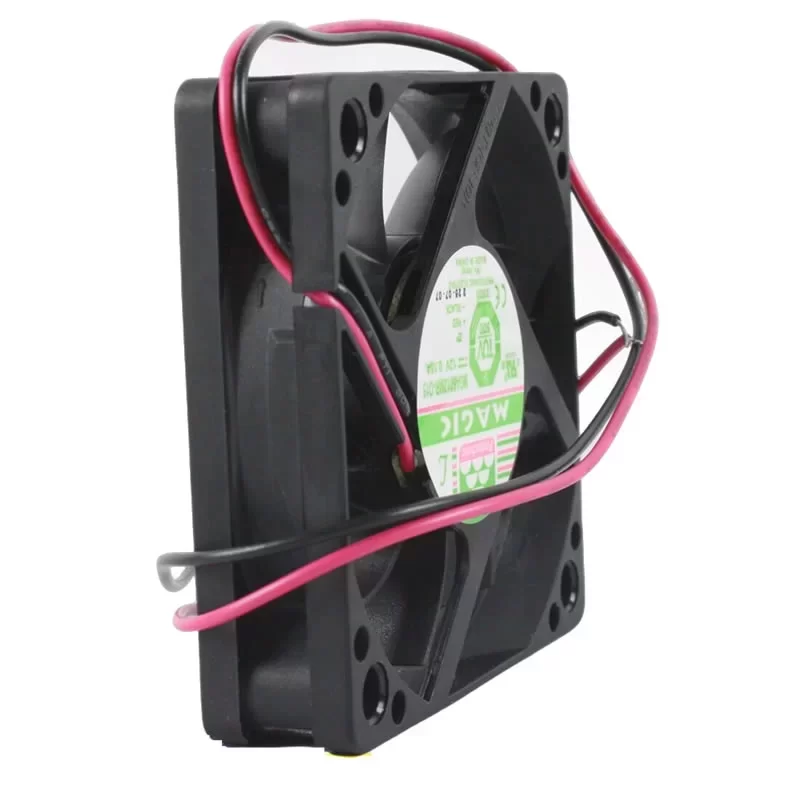

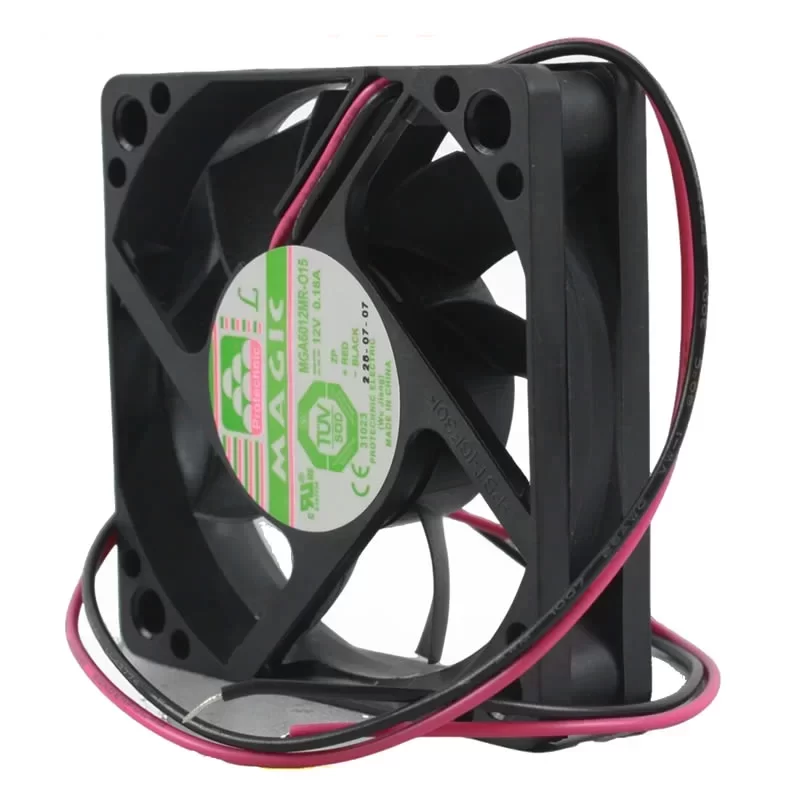

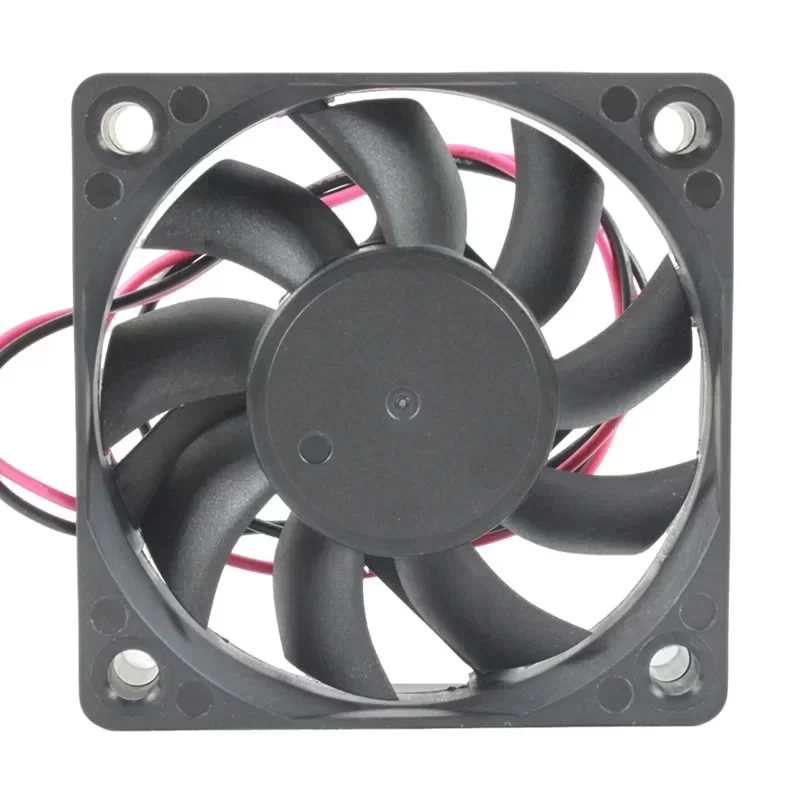

The Protechnic MGA6012MR-O15A is a high-performance 12VDC axial fan with dimensions of 60 x 60 x 15 mm, specifically engineered for efficient thermal management in compact electronic devices and slim-profile industrial equipment. This cooling solution features a precision dual ball bearing system and a high-efficiency 7-blade impeller, optimized for a balance between aerodynamic throughput and exceptionally low-noise operation. It operates at a rated speed of 3,600 RPM, delivering a maximum air flow of 19.10 CFM (32.4 m³/h) and a static pressure of 0.081 inAq (20.2 Pa). Characterized by its slim 15 mm profile and lightweight 29 g design, the MGA6012MR-O15A is an ideal choice for server 1U chassis, networking switches, and medical instruments where internal space is restricted and quiet operation is paramount. Its robust construction ensures long-term reliability and stable cooling performance in demanding operational environments.
MGA6012MR-O15A Fan Parameters
Manufacturer: Protechnic
Model Number: MGA6012MR-O15A
Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Weight: 29 g
Frame Material: Plastics (UL 94V-0)
Impeller Material: Plastics (UL 94V-0)
Bearing Type: Dual Ball Bearing
Number of Blades: 7
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.18 A
Rated Input Power: 2.16 W
Rated Speed: 3,600 RPM (min⁻¹)
Max. Air Flow: 19.10 CFM (32.4 m³/h / 0.54 m³/min)
Max. Static Pressure: 0.081 inAq (20.2 Pa / 2.06 mmH₂O)
Sound Pressure Level: 25.7 dB(A)
Termination: 2 Lead Wires (300 mm)
Operating Temperature: -10 – +70 °C
Storage Temperature: -40 – +75 °C
Expected Life: 70,000 h (at 40 °C)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CE, RoHS
Application
The Protechnic MGA6012MR-O15A DC axial fan is specifically designed for cooling slim-profile server chassis, networking routers, compact industrial power supplies, medical diagnostic equipment, and small-form-factor electronic enclosures requiring reliable and quiet 12V DC ventilation.
