AFC1212DE Delta 12V 1.60A 4-wire DC axial fan

Description

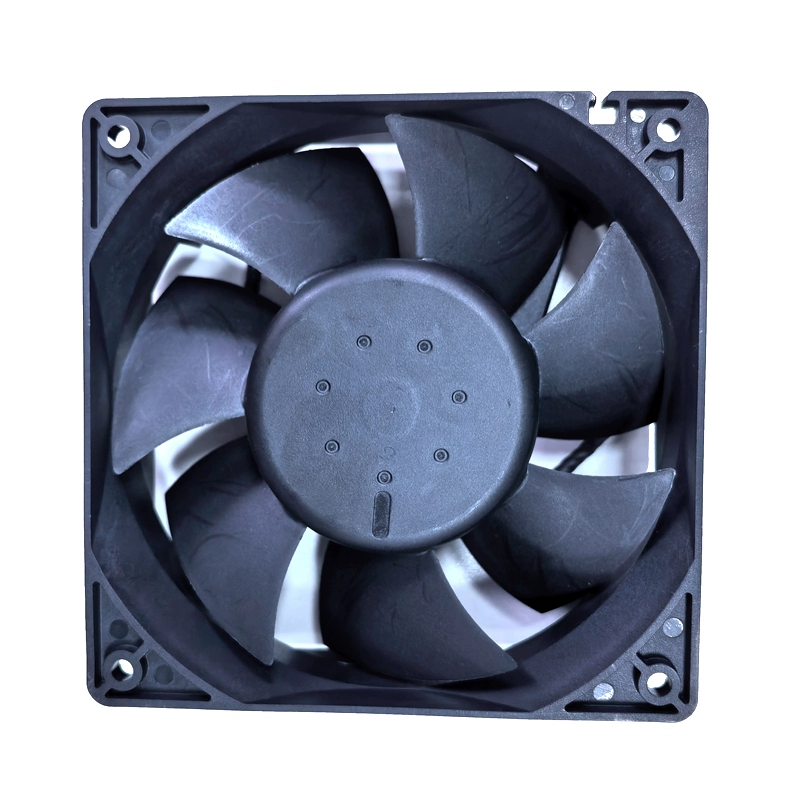

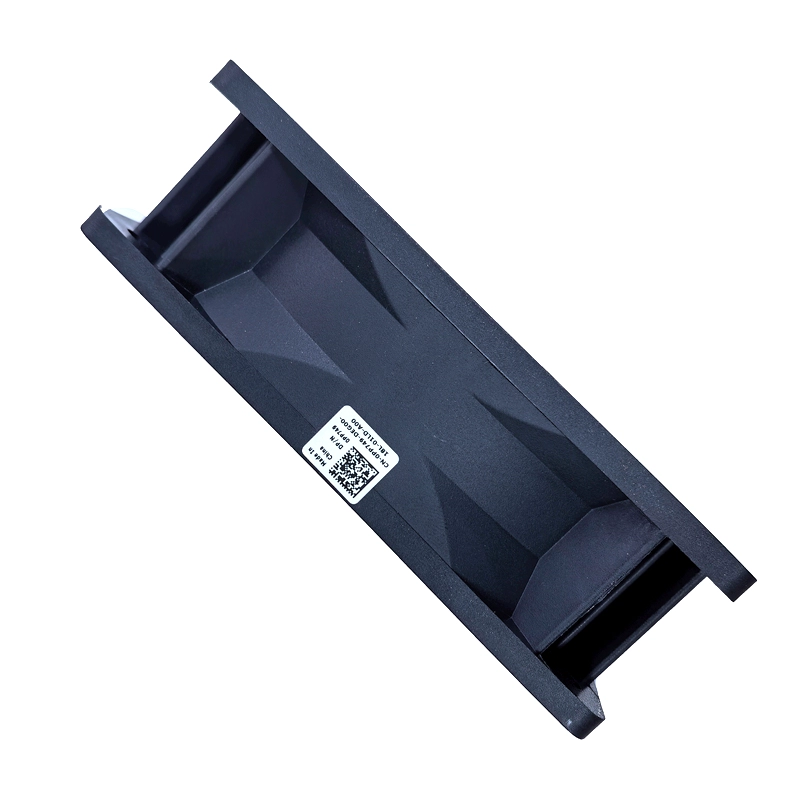

The Delta Electronics AFC1212DE is an exceptionally powerful DC axial fan, crafted for peak performance in demanding cooling scenarios. This fan, often identified by the label marking DEELL P/N: PP749-A00, measures 120mm x 120mm x 38mm, an ideal size for integrating into various high-thermal electronic systems. Operating on a 12V DC power supply, it draws 1.60A of current, converting into a substantial 19.2W of power. This energy drives the fan to a rapid 3900 RPM, producing an impressive 148.34 CFM of airflow, vital for rapid heat dissipation. Equipped with dual ball bearings for robust longevity and a 4-pin connector for PWM speed control and tachometer feedback, the AFC1212DE provides both precision and reliability, making it a crucial component for servers, gaming rigs, and industrial equipment requiring extreme cooling.

AFC1212DE Fan Parameters
Model: AFC1212DE
Manufacturer: Delta Electronics
Part Number: PP749-A00 (as marked on label by DEELL)
Type: DC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 VDC – 13.2 VDC
Rated Current: 1.60A
Power Consumption: 19.2 W
Speed: 3900 RPM
Airflow: 148.34 CFM (approx. 4.20 m³/min)
Static Pressure: 0.60 inch H2O (approx. 15 mmH2O)
Noise Level: 51 dB(A)
Bearing Type: Dual Ball Bearing
Frame Material: Plastic
Impeller Material: Plastic

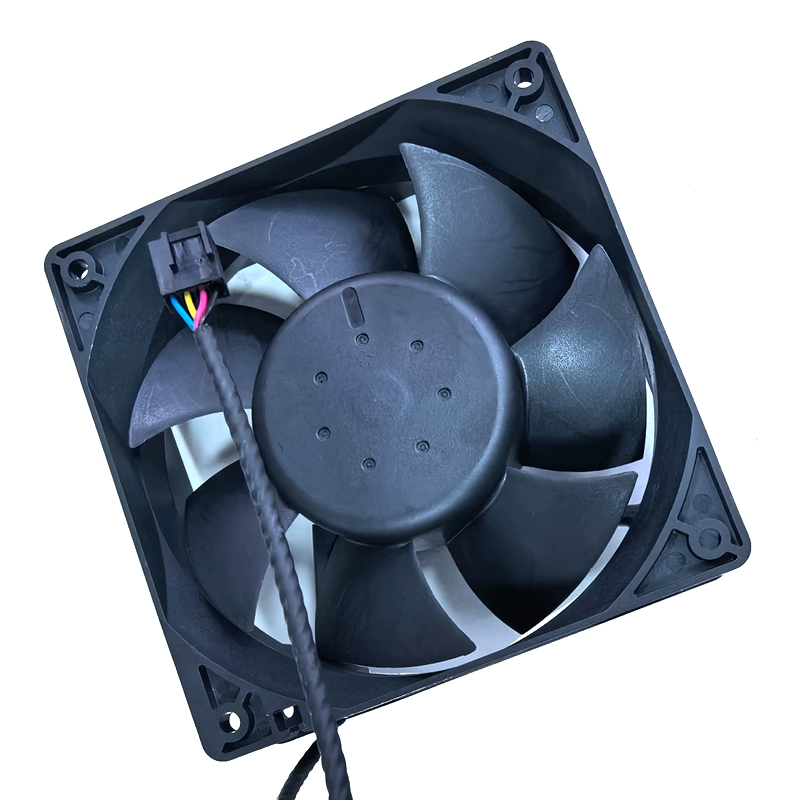

Termination: 4-Pin Connector (with PWM and Tachometer)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours (at 40°C)
Weight: 225 g
Features: Brushless DC motor, PWM speed control, Tachometer output, Locked rotor protection, Auto-restart capability.
Application: Servers, gaming PCs, workstations, cryptocurrency mining rigs, industrial control panels, power supply cooling, high-performance electronics cooling.
