Description

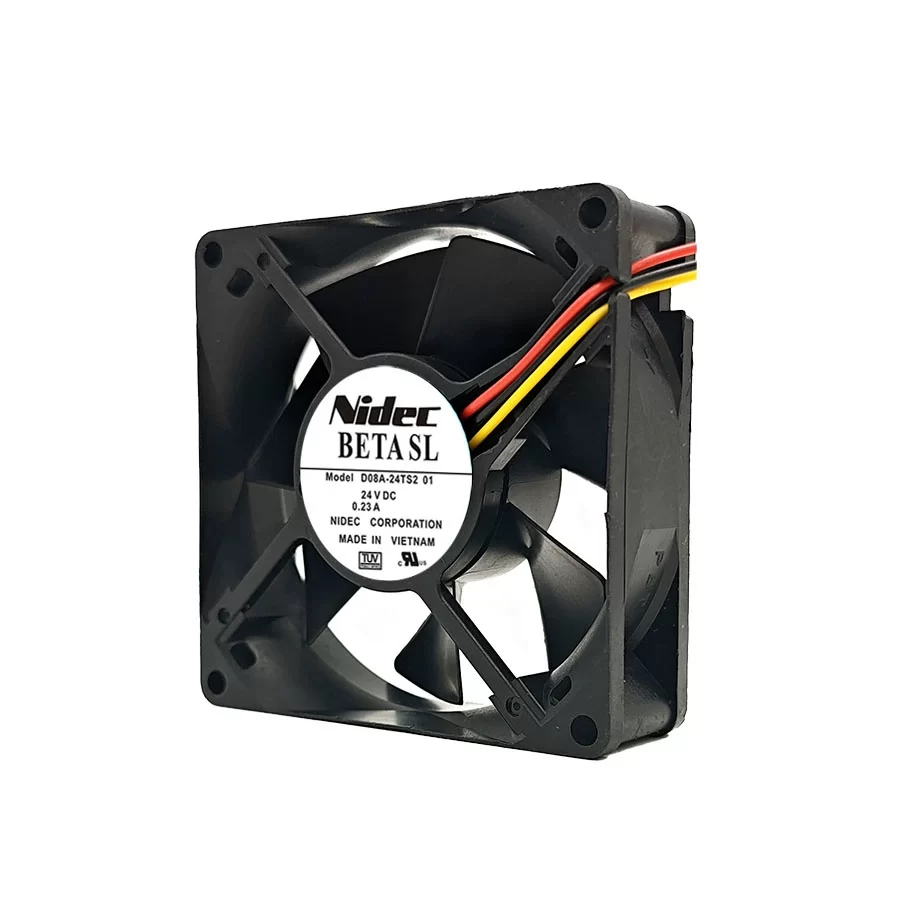

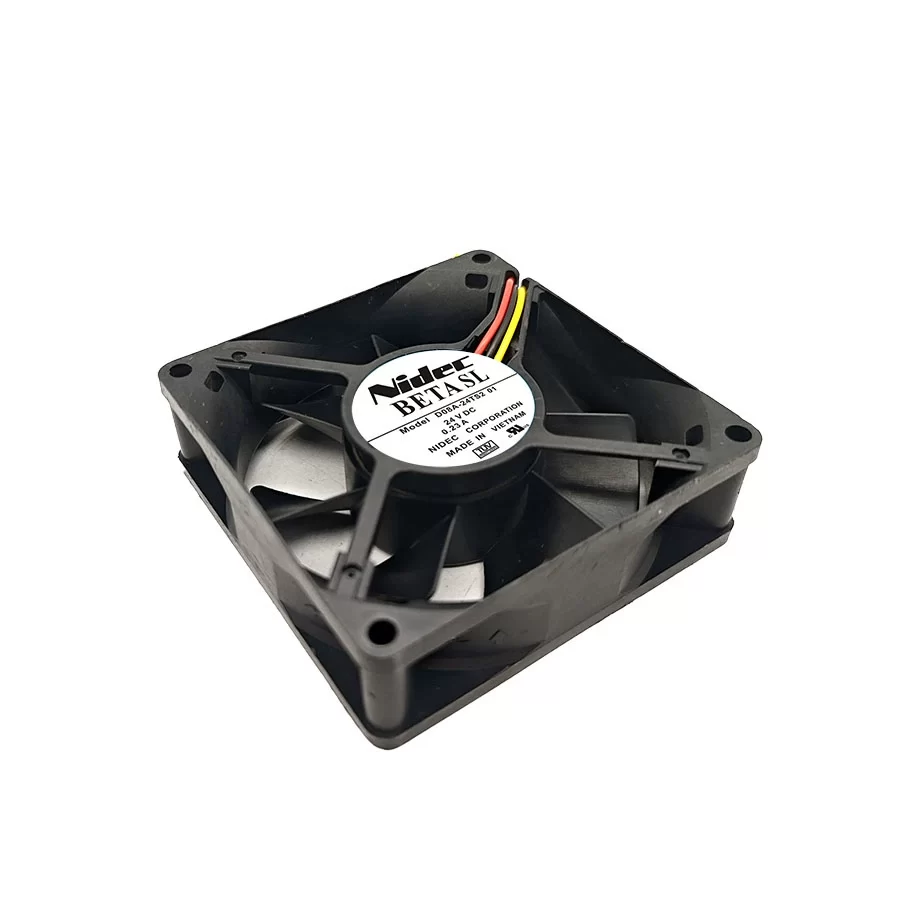

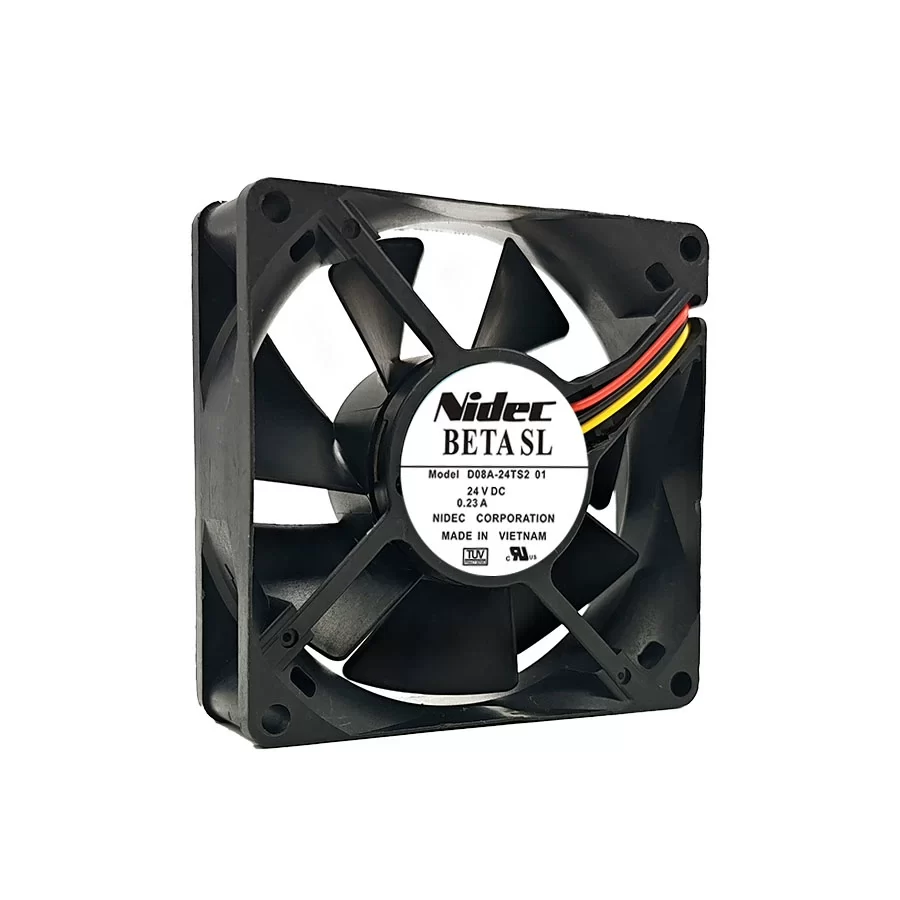

The Nidec D08A-24TS2 is a DC axial fan with dimensions of 80 x 80 x 25 mm. It operates on a rated voltage of 24V DC, drawing 0.23 A of current and consuming 5.52 W of power. The fan features a ball bearing with a service life of up to 60,000 hours at 60°C. The housing and impeller are constructed from plastic, and the fan is equipped with protection against reverse polarity. Specific data for airflow, speed, and noise level are not specified for this model.
D08A-24TS2 Fan Parameters
Manufacturer: Nidec
Model: D08A-24TS2
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 24V DC
Current Rating: 0.23 A
Power Consumption: 5.52 W
Bearing Type: Ball bearing
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 60000 h at 60 °C
Motor Protection: Protection against reverse polarity
Approval: UL, cUL, TUV
Application
The D08A-24TS2 fan is suitable for a wide range of cooling applications, including industrial PCs, electronic equipment, and other devices that require reliable and efficient cooling.
