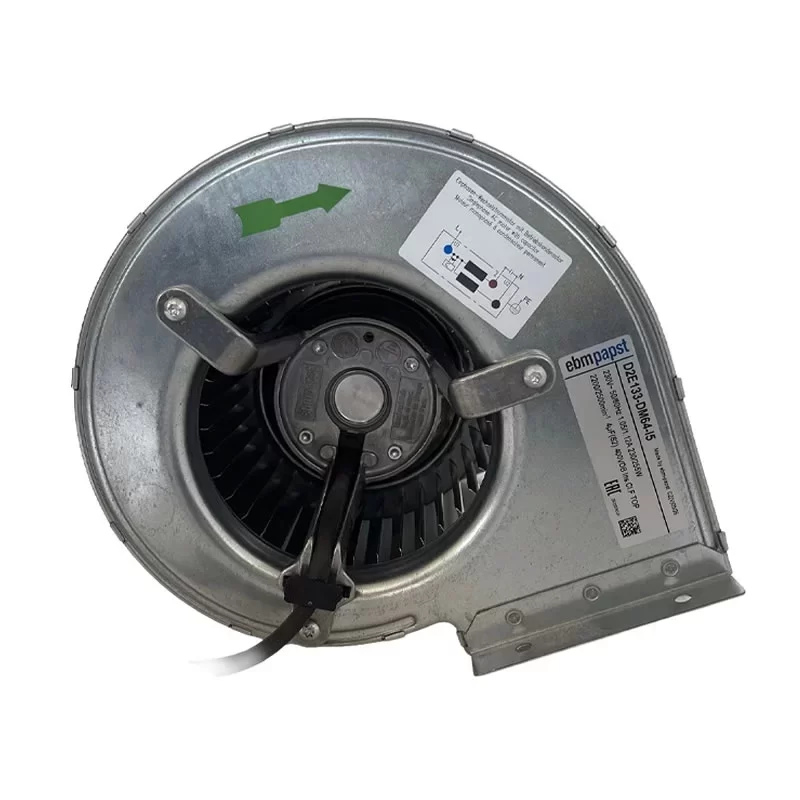

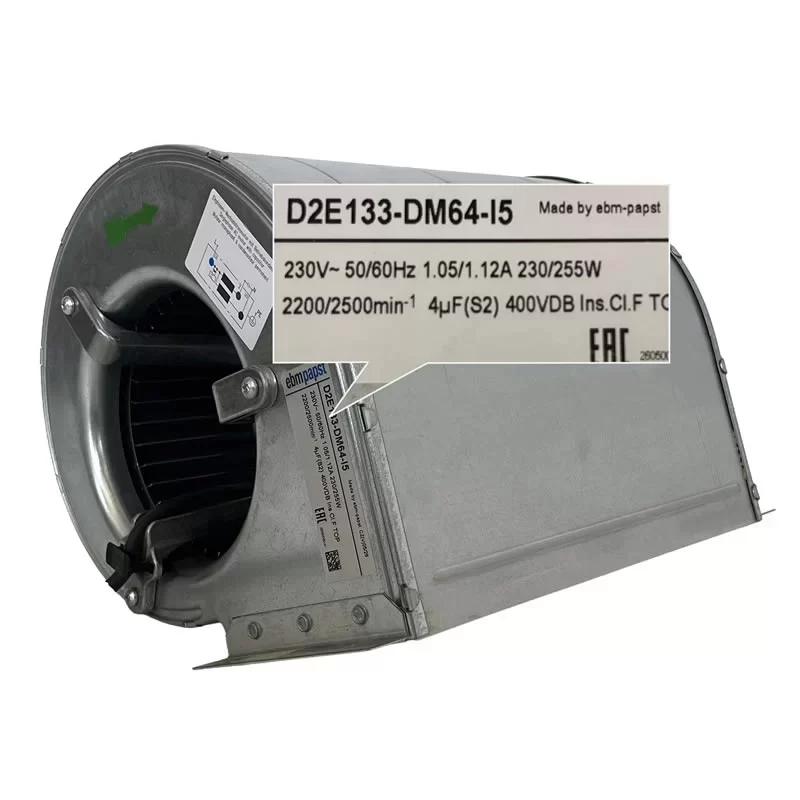

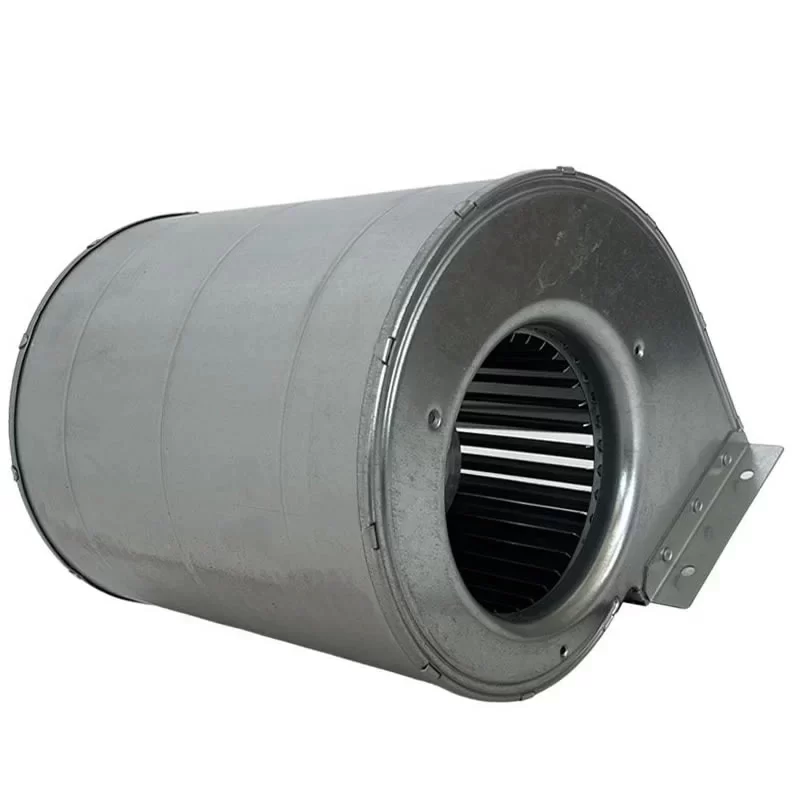

D2E133-DM64-I5 ebmpapst 230VAC 133mm AC Centrifugal Fan

Description

The ebmpapst D2E133-DM64-I5 is a high-performance 230VAC single-phase AC centrifugal fan featuring a fan size of 133 mm and external dimensions of 270 x 203 x 213 mm. Powered by an M2E068-DF motor, this forward-curved, dual-intake motorized blower with housing and angle bracket delivers reliable airflow and static pressure performance. Operating at a rated speed of 2,200 / 2,500 RPM under 50 / 60 Hz, it draws a maximum current of 1.05 / 1.12 A with a power consumption of 230 / 255 W and utilizes an integrated 4 µF / 400 VDB motor capacitor (S2 safety class). Constructed with galvanized sheet steel impellers and housing, precision ball bearings, and motor mounted via brackets on one side, it weighs 3.7 kg and supports continuous S1 operation across ambient temperatures ranging from -25 to +50 °C with an IP44 protection rating (depending on installation and position).

D2E133-DM64-I5 Fan Parameters
Manufacturer: ebmpapst
Model Number: D2E133-DM64-I5
Motor Model: M2E068-DF
Type: AC Centrifugal Fan (Forward-Curved, Dual-Intake with Housing and Angle Bracket)
Fan Size: 133 mm
Dimensions: 270 x 203 x 213 mm
Weight: 3.7 kg
Impeller Material: Sheet steel, galvanised
Housing Material: Sheet steel, galvanised
Motor Suspension: Motor mounted via brackets on one side
Direction of Rotation: Counter-clockwise (seen on rotor)
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz / 230V 60Hz)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 1.05 / 1.12 A
Max. Power Consumption: 230 / 255 W
Motor Capacitor: 4 µF / 400 VDB
Capacitor Standard: S2 (CE)
Rated Speed: 2,200 / 2,500 RPM (min⁻¹)
Min. Back Pressure: 200 / 300 Pa (0.8 / 1.2 in. wg)
Ingress Protection: IP44 (Depending on installation and position)
Insulation Class: Class F
Environmental Protection Class: H0 (dry environment)
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +50 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Motor Protection: Thermal overload protector (TOP) wired internally
Cable Exit: Axial
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EN 60335-1, CE

Application
The ebmpapst D2E133-DM64-I5 is deployed in HVAC ventilation units, commercial air conditioning equipment, air purification systems, and electronic enclosure thermal management setups.
