Description

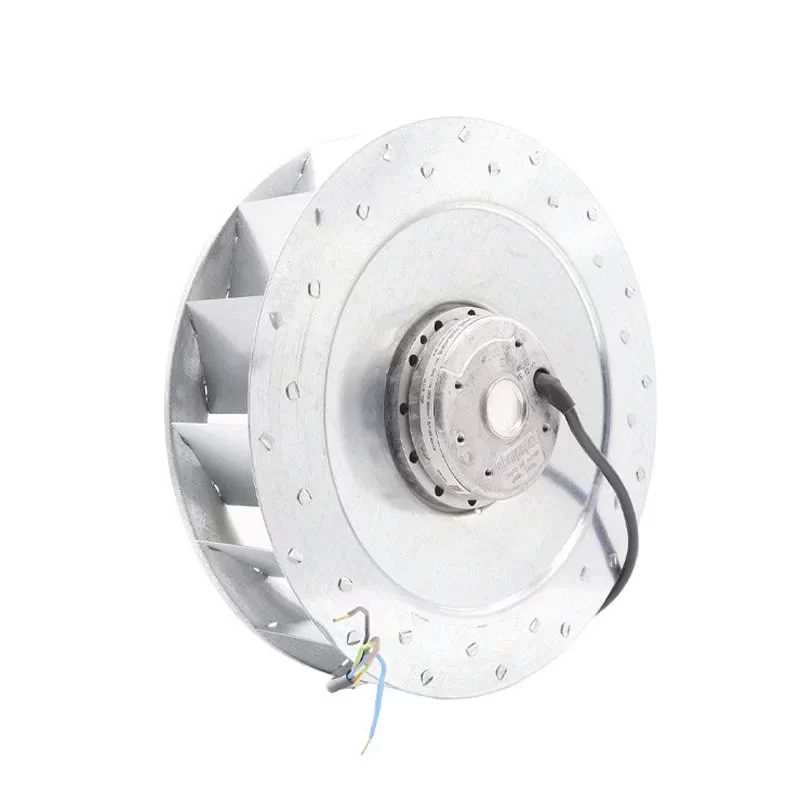

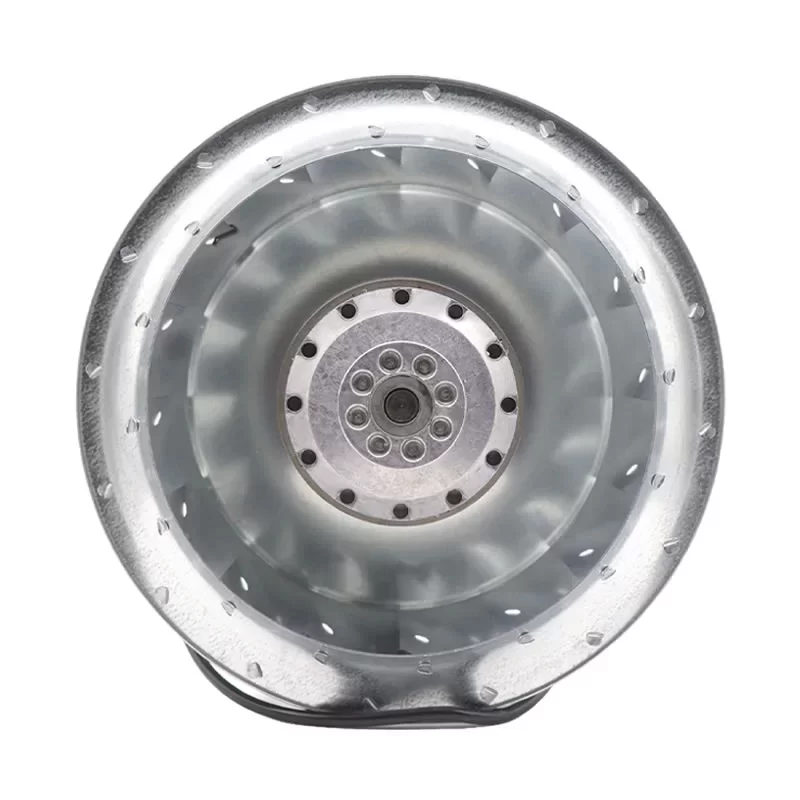

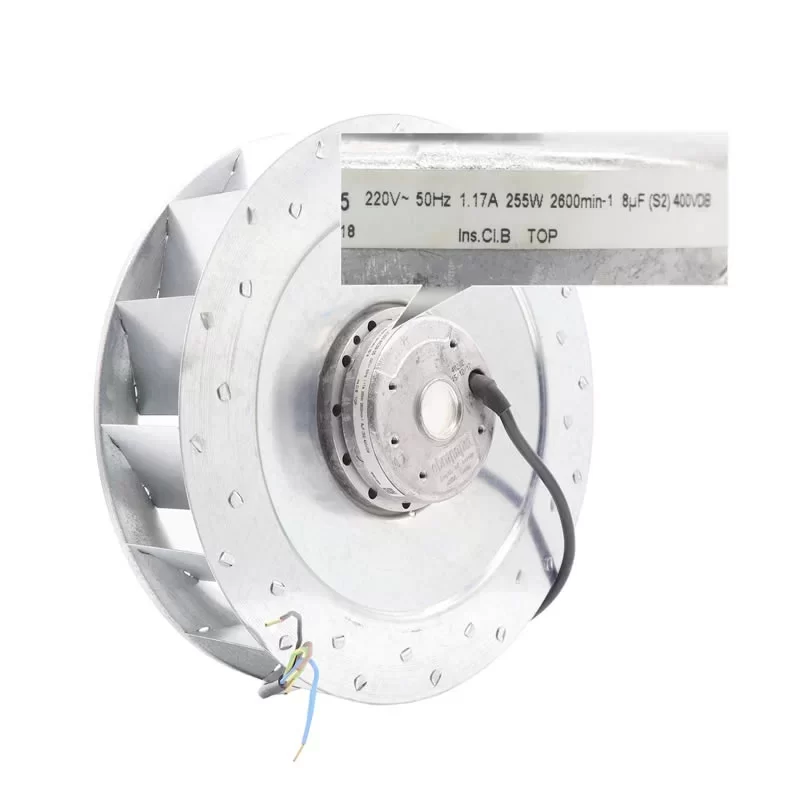

The ebmpapst R2E250-AC09-05 is a high-performance 230VAC single-phase AC centrifugal fan with an impeller size of Ø 250 mm and external dimensions of 250 x 250 x 115 mm. Powered by a robust M2E068-GA motor, this single-intake backward-curved motorized impeller delivers high-volume airflow and pressure capabilities under free-air conditions. Operating at a rated speed of 2,650 RPM under 230 VAC (50 Hz), it draws a maximum current of 1.16 A with a power consumption of 265 W and a starting current of 1.0 A. Built with a 16-blade hot-dip galvanized sheet steel impeller, unpainted rotor surface, IP44 protection rating, Insulation Class B, and precision ball bearings, it operates with an 8 µF / 400 VDB capacitor (S2 standard) and weighs 3.9 kg, supporting reliable continuous-duty performance across operating temperatures from -25 to +30 °C.
R2E250-AC09-05 Fan Parameters
Manufacturer: ebmpapst
Model Number: R2E250-AC09-05
Motor Model: M2E068-GA
Type: AC Centrifugal Fan (Backward Curved, Single-Intake)
Impeller Size: Ø 250 mm
Dimensions: 250 x 250 x 115 mm
Weight: 3.9 kg
Impeller Material: Sheet steel, hot-dip galvanized
Number of Blades: 16
Rotor Surface: Unpainted
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz)
Nominal Voltage: 230 VAC
Frequency: 50 Hz
Max. Current Draw: 1.16 A
Max. Power Consumption: 265 W
Starting Current: 1.0 A
Rated Speed: 2,650 RPM (min⁻¹)
Method of Obtaining Data: fa (Free air)
Required Capacitor: 8 µF / 400 VDB (S2 standard)
Min. Back Pressure: 0 Pa (0 inH₂O)
Ingress Protection: IP44 (installation- and position-dependent)
Insulation Class: Class B
Environmental Protection Class: H0 (dry environment)
Operating Mode: S1 (Continuous duty)
Operating Temperature: -25 – +30 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Motor Protection: Thermal overload protector (TOP) internally connected
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EN 60335-1, RoHS
Application
The ebmpapst R2E250-AC09-05 is deployed in heat recovery ventilation units, commercial air handling systems, cleanroom fan filter units (FFU), cabinet climate control enclosures, telecommunication server racks, and high-density power electronics cooling modules.
