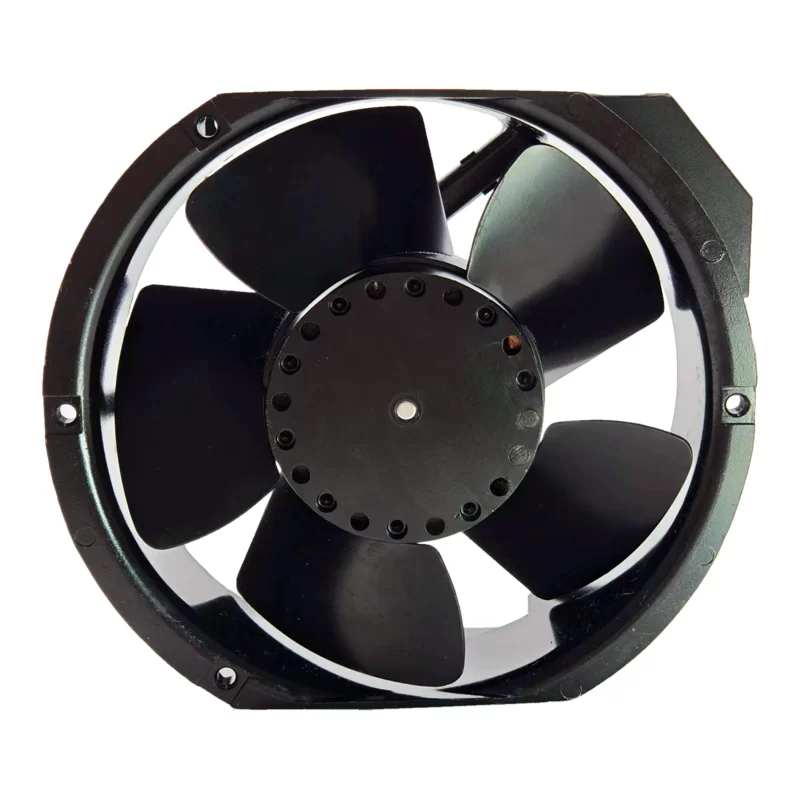

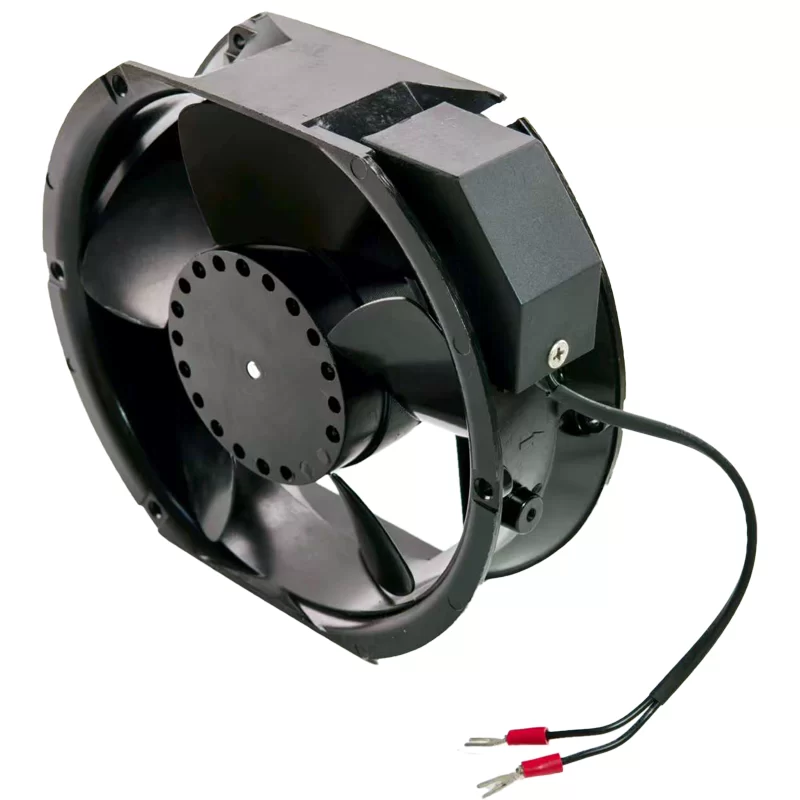

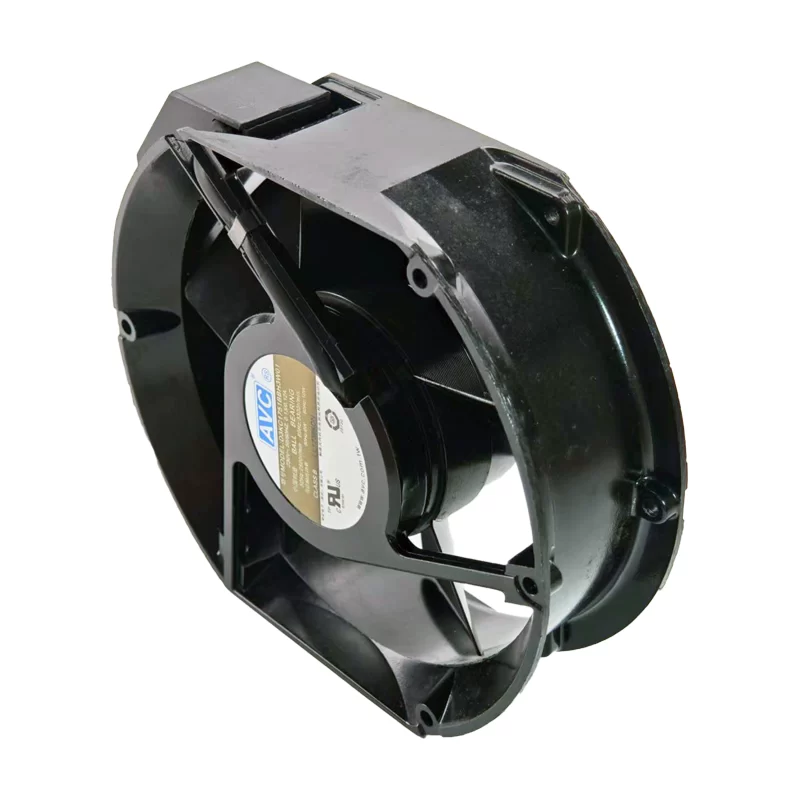

D3KC1751BBH3W01 AVC 230V AC Axial Fan

Description

The AVC D3KC1751BBH3W01 is an AC Axial Fan with dimensions of 172x150x51mm. It operates on 230VAC and is compatible with both 50Hz and 60Hz frequencies. It draws 0.13/0.12A of current and consumes 6/10W of power respectively at 50/60Hz. This fan achieves speeds of 2800/3300RPM at 50/60Hz. Utilizing a ball bearing for durability, it features 2 wire leads for termination. This AC axial fan is suitable for applications such as industrial equipment, server racks, and general ventilation where efficient and reliable airflow is needed.

D3KC1751BBH3W01 Fan Parameters
Model: D3KC1751BBH3W01
Manufacturer: AVC
Type: AC Axial Fan
Dimensions: 172 x 150 x 51 mm
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Current Draw: 0.13/0.12 A
Power Consumption: 6/10 W
Speed: 2800/3300 RPM
Bearing: Ball bearing
Termination: 2 Wire Leads
Application: Industrial equipment, server racks, general ventilation.
