Description

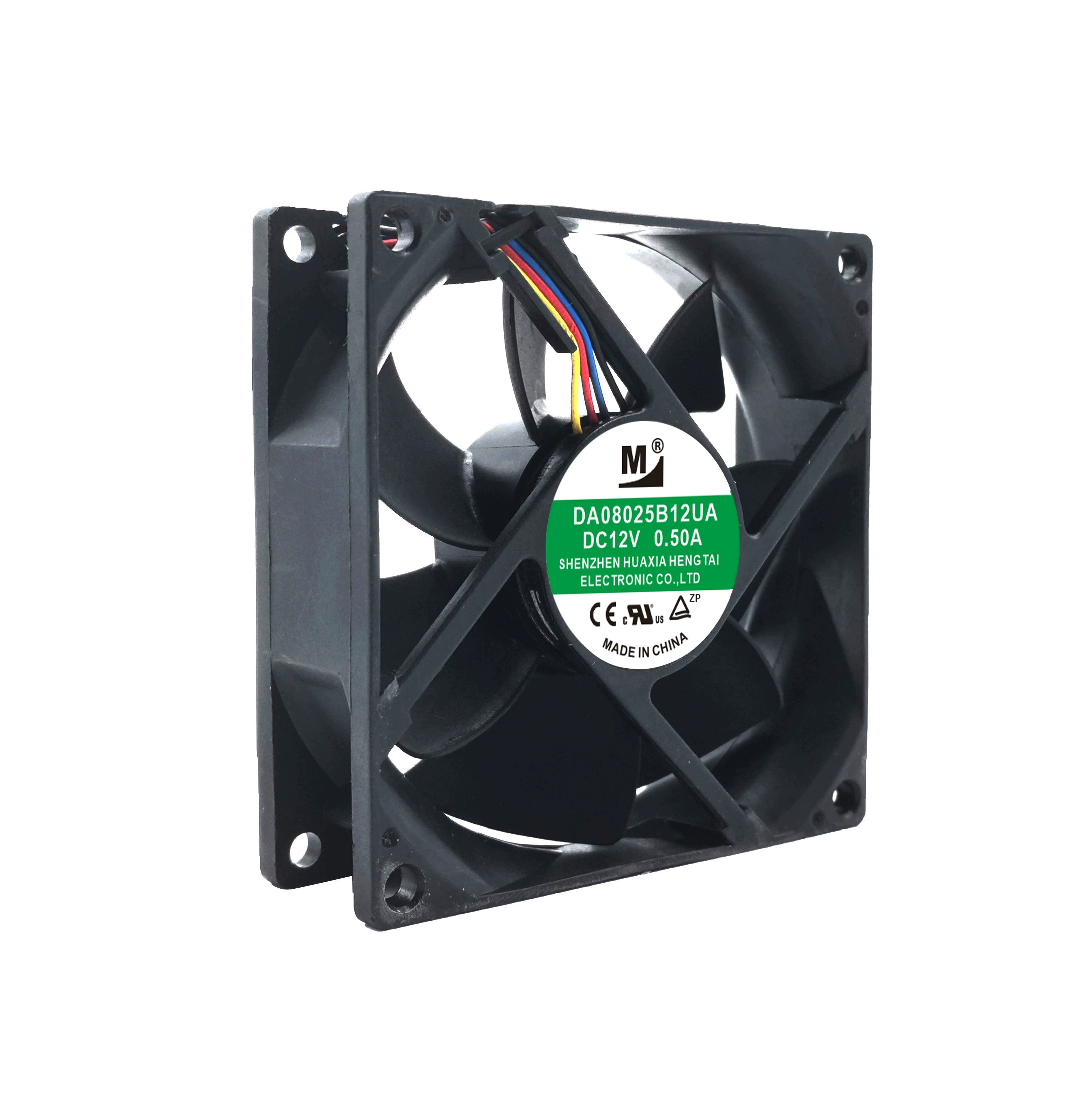

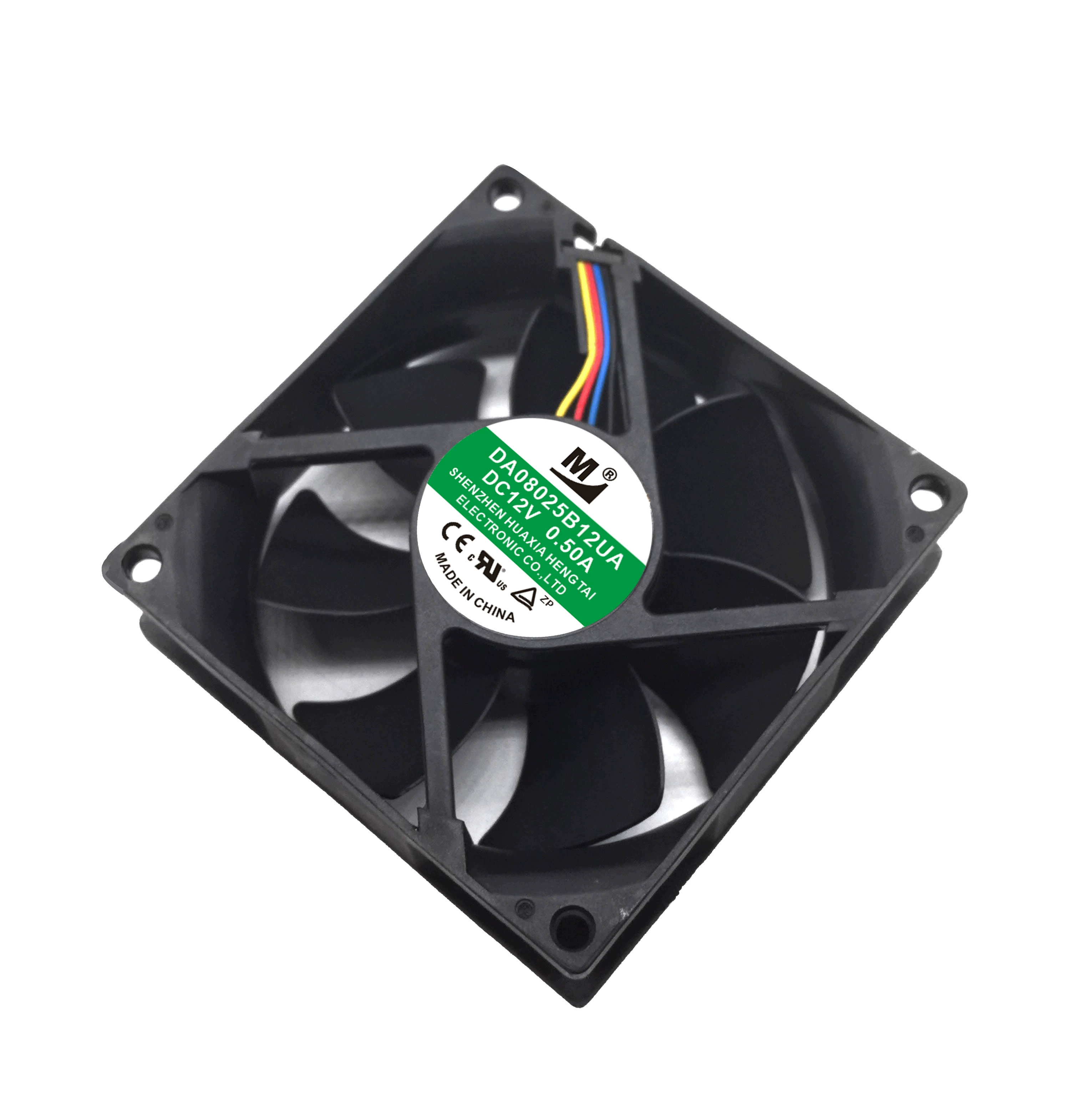

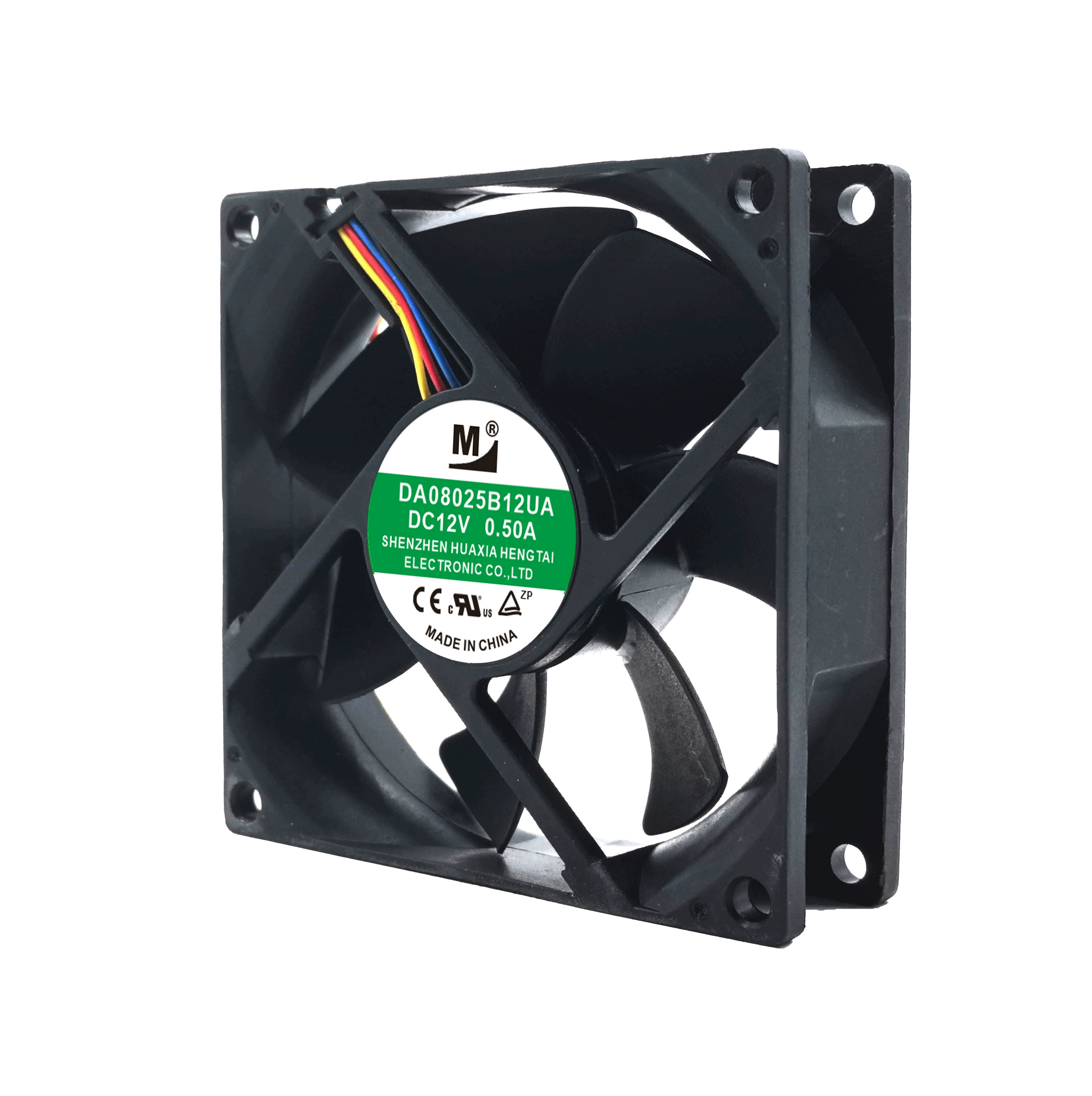

The HUAXIA HENGTAI DA08025B12UA is a high-performance DC axial fan, engineered in a compact 80mm x 80mm x 25mm form factor for optimal thermal management in electronic systems. This fan operates on 12V DC, effectively moving air with its 0.50A current draw and 6W power consumption. Achieving a rapid 4800 RPM, it provides robust airflow. Equipped with dual ball bearings for enhanced longevity, a key feature is its 4-wire termination, which typically allows for advanced control functionalities like speed sensing (tachometer output) and precise speed modulation (PWM input), offering greater flexibility in cooling strategies. This makes it an ideal component for sophisticated applications requiring adaptable airflow control and reliable performance.
DA08025B12UA Fan Parameters
Model: DA08025B12UA
Manufacturer: HUAXIA HENGTAI
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 VDC – 13.8 VDC
Rated Current: 0.50A
Power Consumption: 6.0 W
Speed: 4800 RPM
Airflow: 48 CFM (approx.)
Static Pressure: 0.20 inch H2O (approx.)
Noise Level: 45 dB(A) (approx.)
Bearing Type: Dual Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 4-Wire Leads (with speed sensor and PWM input)
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 hours (at 40°C)
Weight: 85 g
Features: Electronically commutated, Locked rotor protection, Auto-restart capability, PWM speed control, Tachometer output.
Application: Server cooling, power supply units (PSUs), networking equipment, industrial control systems, automotive electronics, general purpose component cooling.
