Description

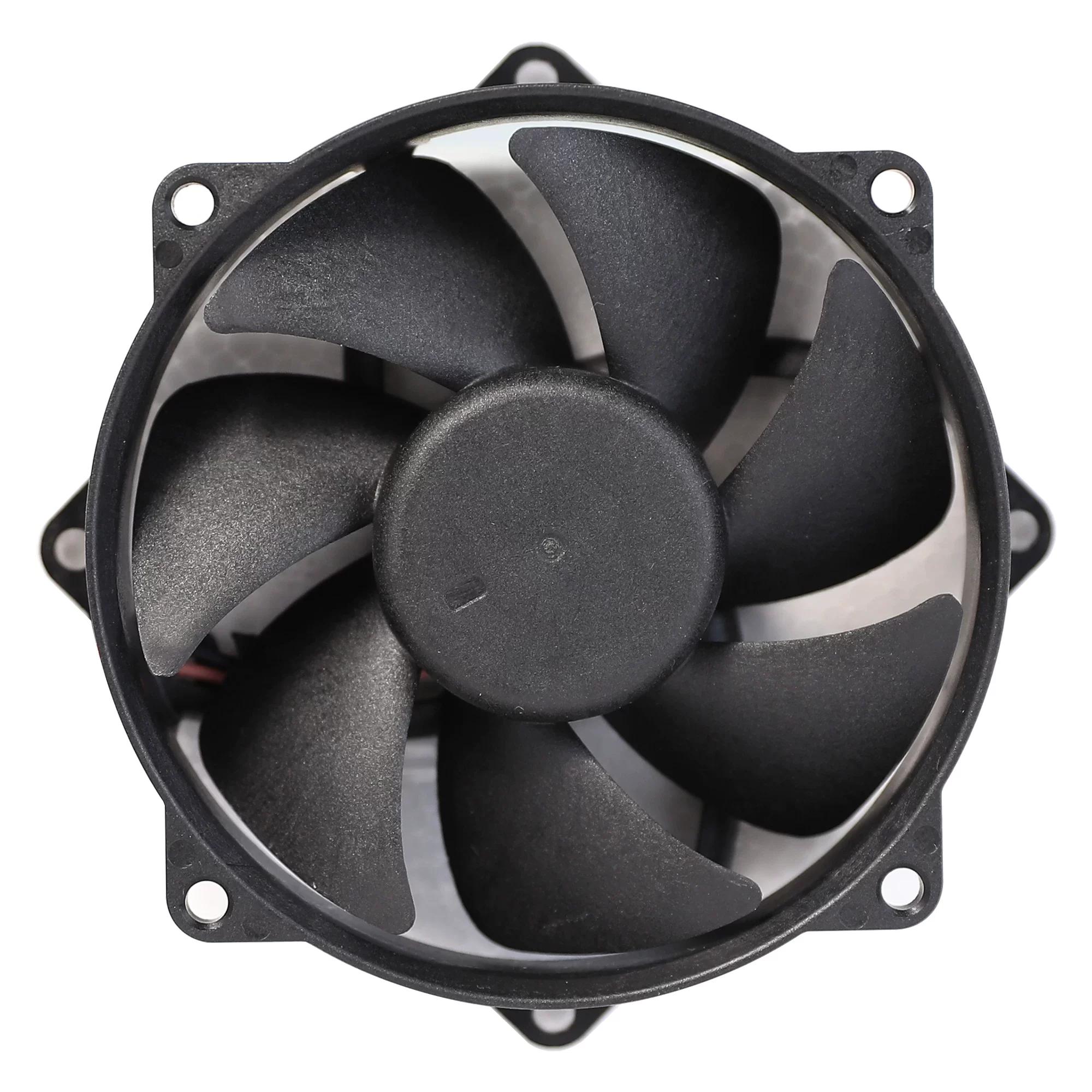

The AVC DASH0925B2H is a high-performance 12VDC 95 x 25 mm DC axial fan, engineered for reliable thermal management in industrial and IT systems. Featuring dual ball bearings and a flame-retardant plastic frame and impeller (UL 94V-0), this compact cooling fan delivers an airflow of 50.03 CFM (85.0 m³/h / 1.42 m³/min) and a static pressure of 2.24 mmH₂O (22.0 Pa / 0.088 inAq) at a rated speed of 3,300 RPM. Operating on a voltage range of 7.0 – 13.8 VDC, it draws a maximum current of 0.30 A with a power consumption of 4.4 W. Built for continuous high-reliability cooling, it weighs 0.095 kg, operates quietly at 25 dBA within a temperature range of -10 to +70 °C, offers a life expectancy of 70,000 hours, and holds safety certifications including UL, TUV, and CE.
DASH0925B2H Fan Parameters
Manufacturer: AVC
Model Number: DASH0925B2H
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Dimensions: 95 x 25 mm
Impeller Size: 92 mm
Weight: 0.095 kg
Frame Material: Plastic (PBT UL 94V-0)
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires
Rated Speed: 3,300 RPM (min⁻¹)
Max. Current Draw: 0.30 A
Max. Power Consumption: 4.4 W
Max. Air Flow: 50.03 CFM (85.0 m³/h / 1.42 m³/min)
Max. Static Pressure: 2.24 mmH₂O (22.0 Pa / 0.088 inAq)
Noise Level: 25 dBA
Operating Temperature: -10 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 70,000 hours
Safety Approvals: UL, TUV, CE
Application
The AVC DASH0925B2H is deployed in industrial automation control panels, power supply units, industrial frequency converters, VFD systems, server racks, medical diagnostic equipment, and telecommunications switchgear.
