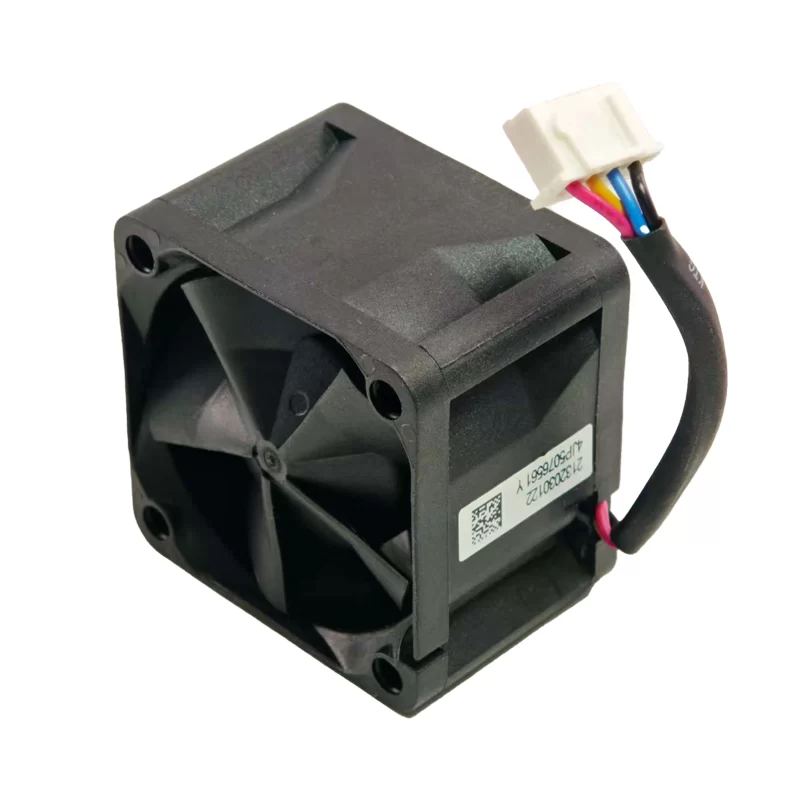

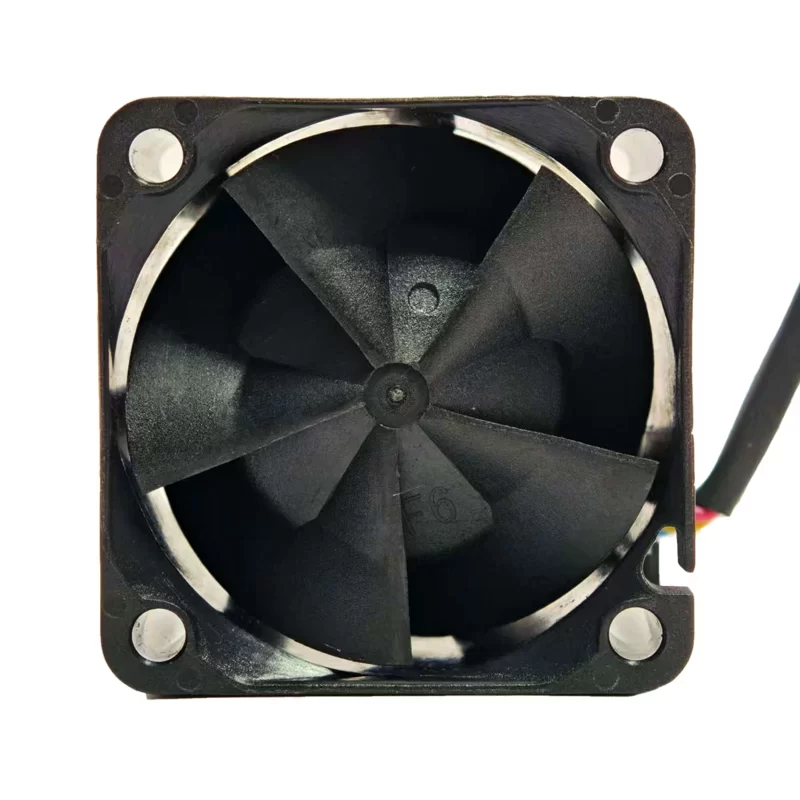

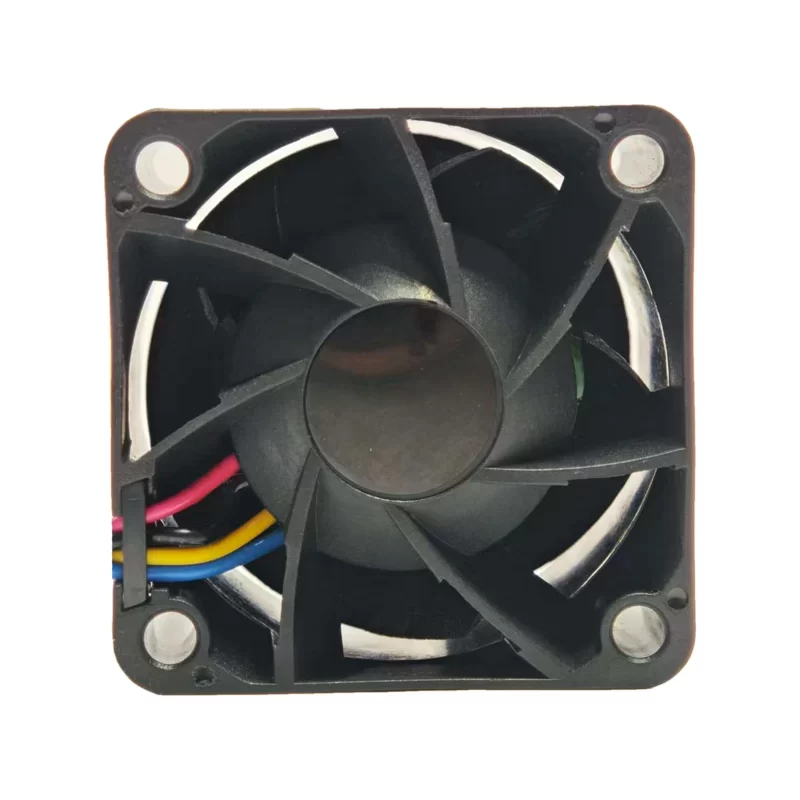

DBTB0428B2S AVC 12V DC Extreme High Speed Axial Fan

Description

The AVC DBTB0428B2S is an extreme-performance DC Axial Fan with dimensions of 40×40×28 mm. Operating at 12 V, this Extreme High Speed fan has a Rated Current of 0.50 A and a Power Consumption of 4.8 W. It operates at an intense Nominal Speed of 18,500 RPM, delivering a huge Airflow of 39.1 m3/h (23.05 CFM) and exceptional Static Pressure of 532 Pa (2.136 inAq), with a Noise Level of 55 dB(A). It features a Ball Bearing system and 4−Wire Termination for precise speed control.

DBTB0428B2S Fan Parameters
Model: DBTB0428B2S
Manufacturer: AVC
Type: DC Axial Fan
Dimensions: 40×40×28 mm
Operating Voltage: 12 V
Rated Current: 0.50 A
Power Consumption: 4.8 W
Nominal Speed: 18,500 RPM
Airflow: 39.1 m3/h (23.05 CFM)
Static Pressure: 532 Pa (2.136 inAq)
Noise Level: 55 dB(A)
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Termination: 4-Wire Leads
Weight: 35 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Life Expectancy: 70,000 hours

Application
The AVC DBTB0428B2S is engineered for applications requiring the absolute maximum amount of airflow and pressure from a 40×40×28 mm fan. This level of performance is typically employed in high-end server hardware, compact GPU or CPU cooling systems, and situations where extreme thermal density requires aggressive airflow through highly restrictive enclosures. The 4-wire connection facilitates essential PWM speed regulation.
