Description

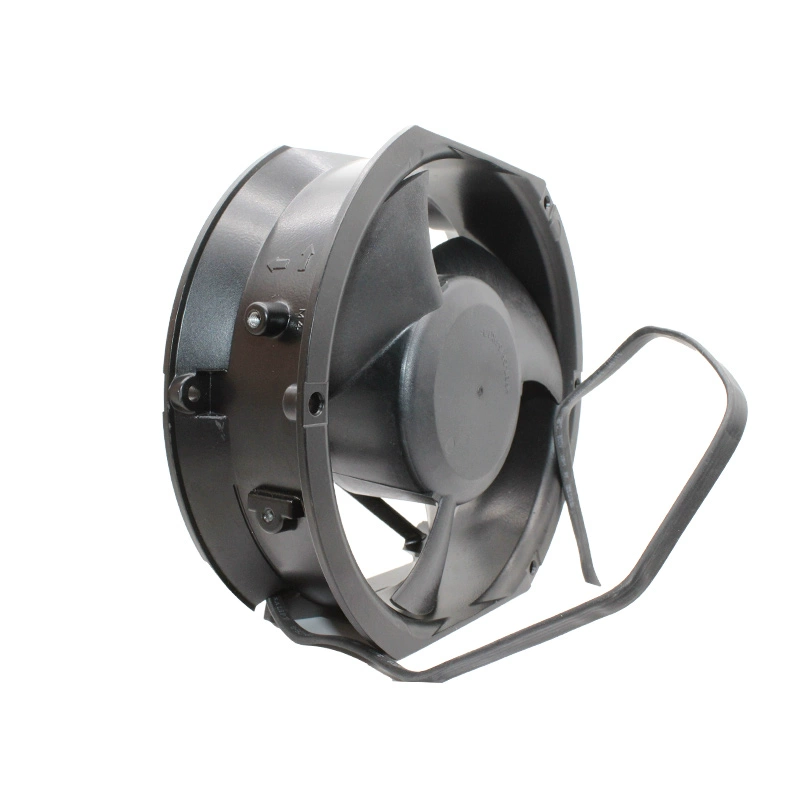

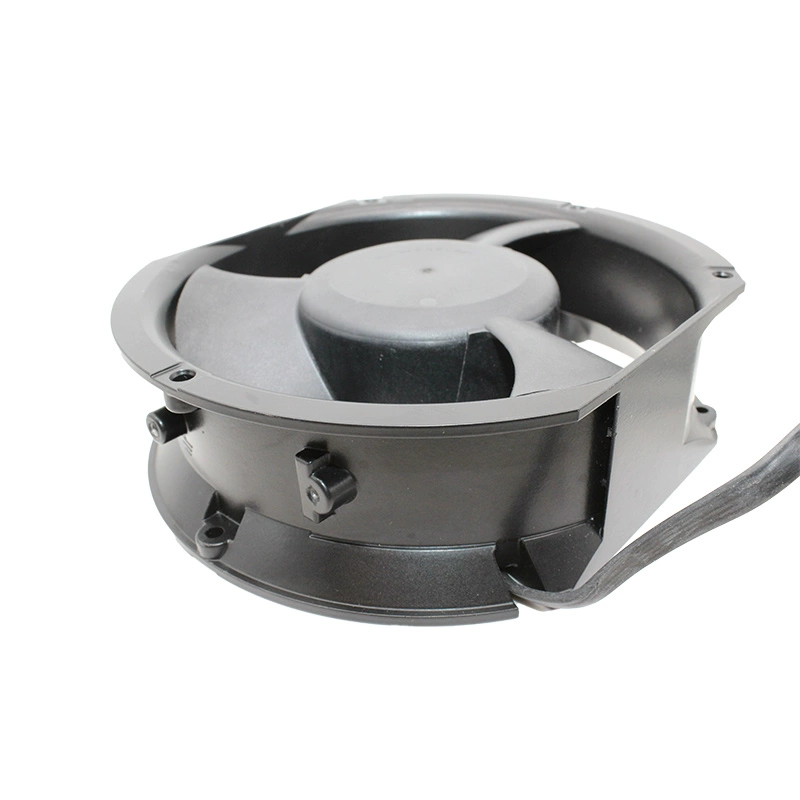

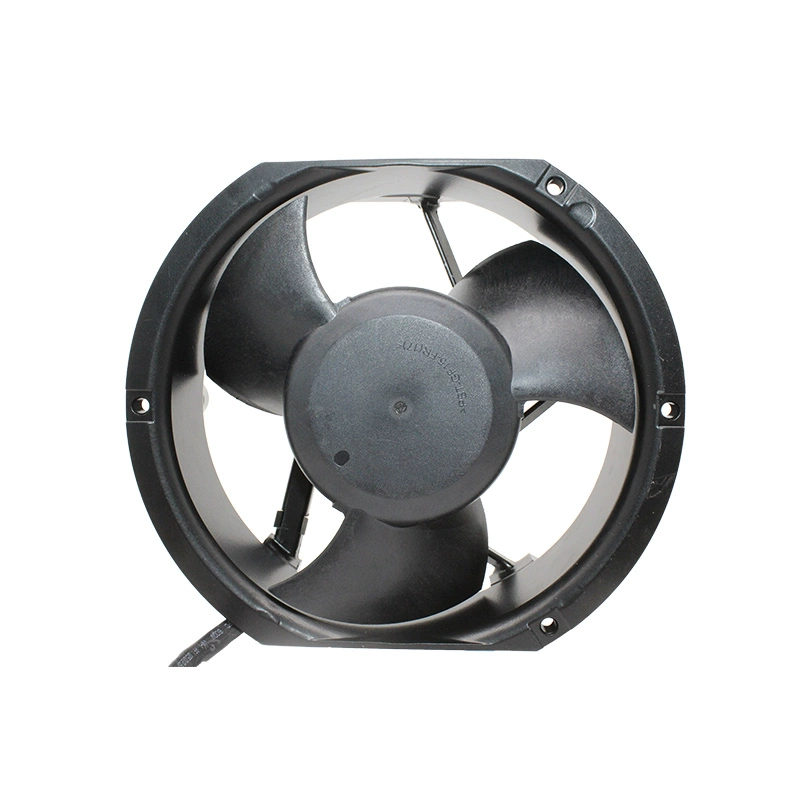

The Delta Electronics EFB1548VHG-7L62 is a DC axial fan measuring 172x150x50.8mm. It operates on 48 VDC, drawing 0.83 A of current and consuming 39.84 W of power. This fan achieves a speed of 4000 RPM and provides an airflow of 302.3 CFM, with a noise level of 60 dB(A). It is equipped with ball bearings for durable operation and features 4-wire leads for termination. Constructed with an aluminum frame and plastic impeller, the fan is designed for effective cooling in various electronic and industrial applications, including servers and inverter drives.
EFB1548VHG-7L62 Fan Parameters
Model: EFB1548VHG-7L62
Manufacturer: Delta Electronics
Type: DC Axial Fan (Tubeaxial)
Dimensions: 172 mm L x 150 mm H x 50.8 mm W
Rated Voltage: 48 VDC
Voltage Range: 24 – 60 VDC
Rated Current: 0.83 A
Power Consumption: 39.84 W
Speed: 4000 RPM
Airflow: 302.3 CFM (8.46 m³/min)
Static Pressure: 0.937 in H2O (233.4 Pa)
Noise Level: 60 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Weight: 861.8 g (1.9 lbs)
Frame Material: Aluminum
Impeller Material: Plastic
Operating Temperature: -10°C to +70°C
Life Expectancy: 80,000 Hrs @ 40°C
Features: Locked Rotor Protection
Approval Agency: CE, CSA, UL, VDE
Application: Server cooling, inverter drives, industrial equipment, electronic cooling.
