Description

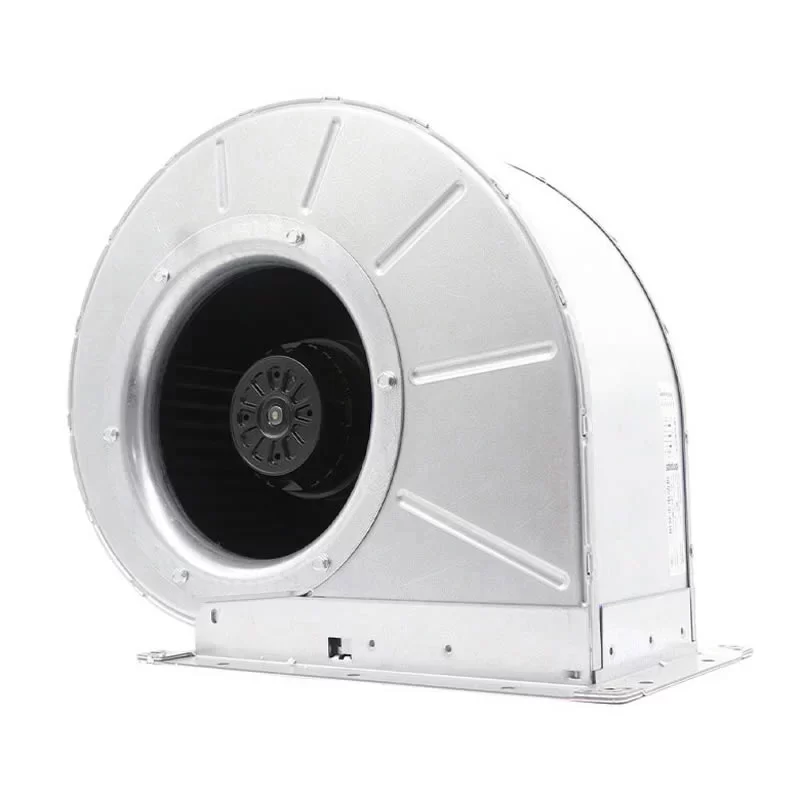

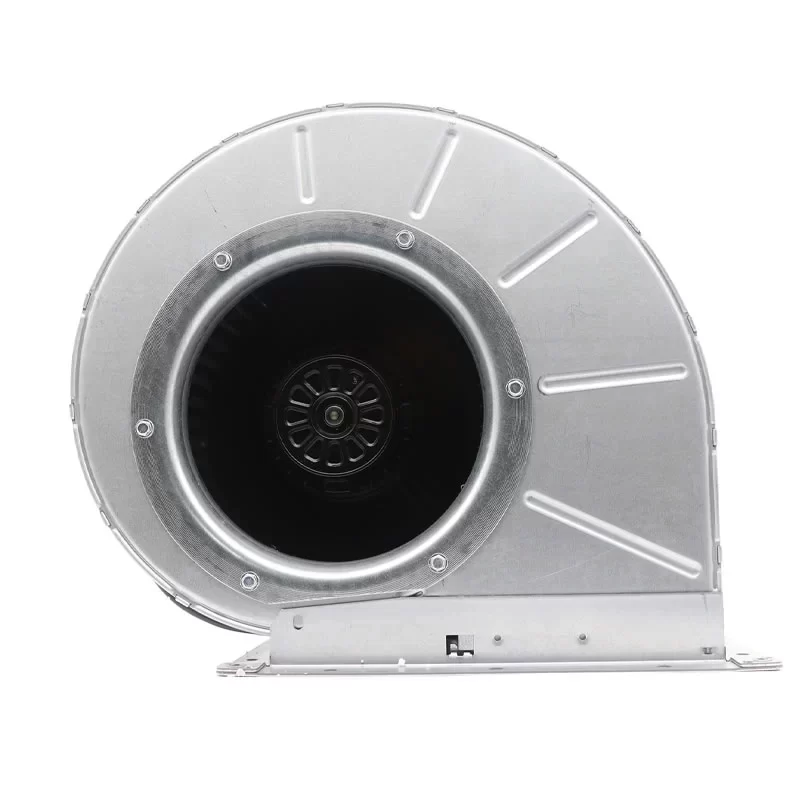

The ebmpapst G4D200-CL12-01 is a high-performance 230/400VAC three-phase AC centrifugal fan with an impeller size of Ø 200 mm and external dimensions of 371 x 318 x 197 mm. Powered by an M4D074-EI motor, this single-intake forward-curved motorized impeller with housing and large flange delivers robust airflow and static pressure capabilities. Operating across 230V Delta / 400V Star configurations at 50 / 60 Hz, it achieves a rated speed of 1,300 / 1,550 RPM, a power input of 360 / 340 W, and a current draw of 1.14 / 1.07 / 0.66 / 0.62 A with a starting current of 1.7 A. Constructed with Sendzimir galvanized sheet steel for both the forward-curved impeller and housing, a painted black rotor surface, and precision ball bearings, it weighs 7.4 kg and supports continuous-duty S1 operation under ambient temperatures ranging from -25 to +45 °C with an IP44 protection rating.
G4D200-CL12-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: G4D200-CL12-01
Motor Model: M4D074-EI
Type: AC Centrifugal Fan (Forward Curved, Single-Intake with Housing and Large Flange)
Impeller Size: Ø 200 mm
Dimensions: 371 x 318 x 197 mm
Weight: 7.4 kg
Impeller Material: Sendzimir galvanized sheet steel
Housing Material: Sendzimir galvanized sheet steel
Rotor Surface: Painted black
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing Type: Ball Bearing
Phase: 3~ (Three-Phase)

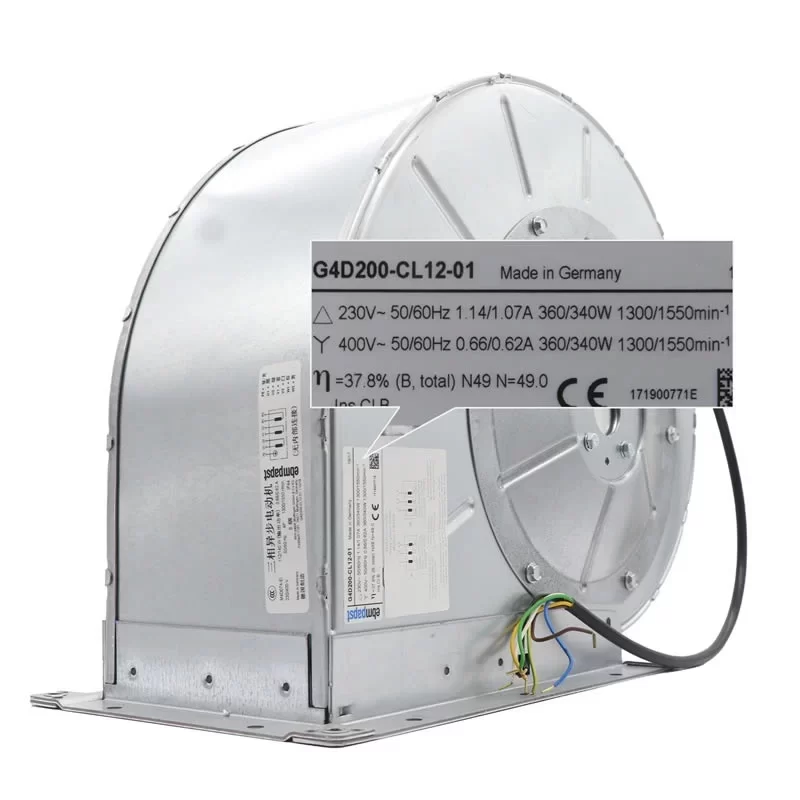

Data Sequence: (230V 50Hz Δ / 230V 60Hz Δ / 400V 50Hz Y / 400V 60Hz Y)
Nominal Voltage: 230 / 400 VAC
Wiring: Δ / Y
Frequency: 50 / 60 Hz
Max. Current Draw: 1.14 / 1.07 / 0.66 / 0.62 A
Max. Power Consumption: 360 / 340 W
Starting Current: 1.7 A
Rated Speed: 1,300 / 1,550 RPM (min⁻¹)
Working Air Flow: 470.86 CFM (800.0 m³/h / 13.33 m³/min)
Static Pressure Increase: 29.27 mmH₂O (287.0 Pa / 1.15 inAq)
Overall Efficiency (ηe): 37.8% (B, total)
Min. Back Pressure: 0 / 250 Pa (0 / 1.0 in. wg)
Ingress Protection: IP44 (installation- and position-dependent as per EN 60034-5)
Insulation Class: Class B
Environmental Protection Class: F1-2
Operating Mode: S1 (Continuous duty)
Operating Temperature: -25 – +45 °C (at 50Hz), -25 – +30 °C (at 60Hz)
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Motor Protection: Thermal overload protector (TOP) internally connected
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: CE, CCC, EN 60335-1, RoHS
Application
The ebmpapst G4D200-CL12-01 is deployed in commercial HVAC air handling units, central air conditioning boxes, cleanroom fan filter units (FFU), industrial ventilation systems, and electronic cabinet cooling enclosures.
