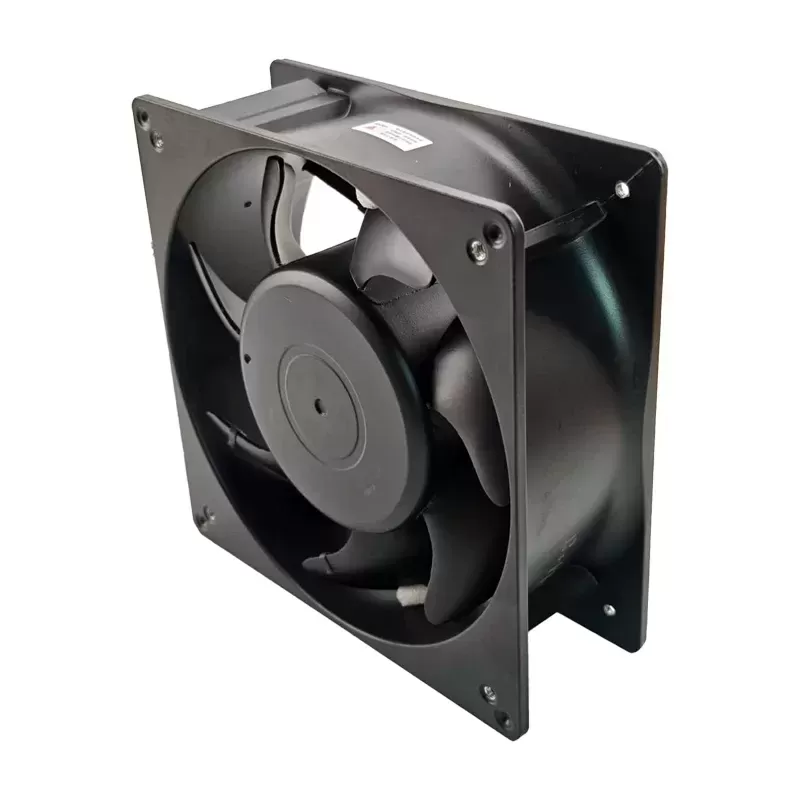

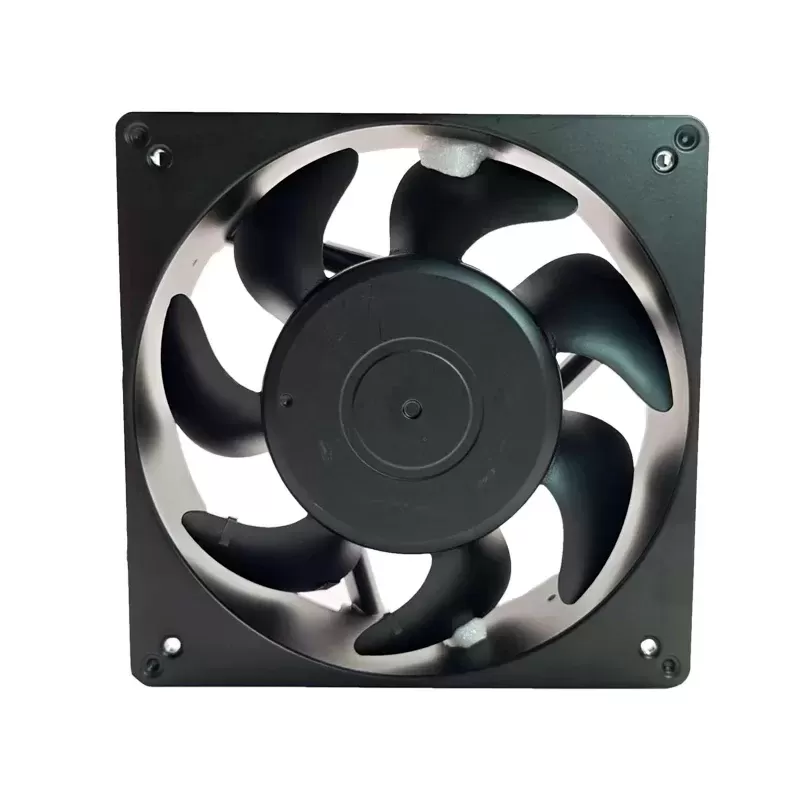

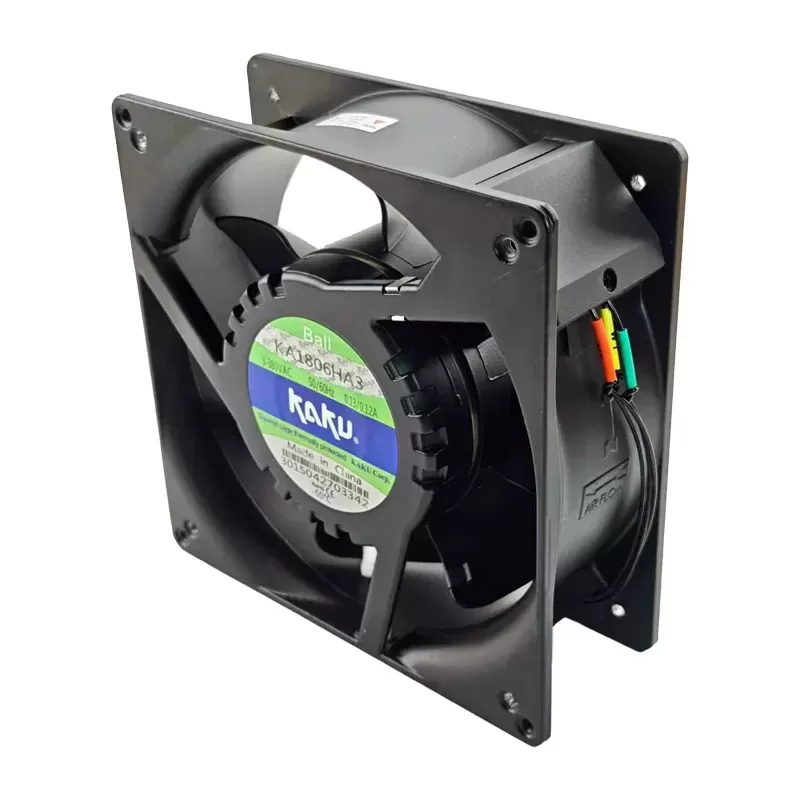

KA1806HA3 KAKU 380V AC axial fan

Description

The KAKU KA1806HA3 is a three-phase AC axial fan measuring 180x180x62mm. It operates on 380 VAC at 50 Hz and 60 Hz frequencies, drawing 0.13 A of current at 50 Hz and 0.12 A at 60 Hz. Power consumption is 49.4 W at 50 Hz and 45.6 W at 60 Hz. This fan provides an airflow of 380 CFM. It features an all-metal design, ensuring high-temperature resistance and a long lifespan. It is equipped with ball bearings for durable operation and is designed for effective cooling in demanding environments such as inverters and industrial power systems.

KA1806HA3 Fan Parameters
Model: KA1806HA3
Manufacturer: KAKU
Type: Three-phase AC Axial Fan
Dimensions: 180x180x62 mm
Rated Voltage: 380 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.13 A / 0.12 A
Power Consumption (50Hz / 60Hz): 49.4 W / 45.6 W
Airflow: 380 CFM
Bearing Type: Ball Bearing
Frame Material: All-metal
Operating Temperature: High temperature resistant
Application: Inverters, industrial power, high-temperature cooling.
