Description

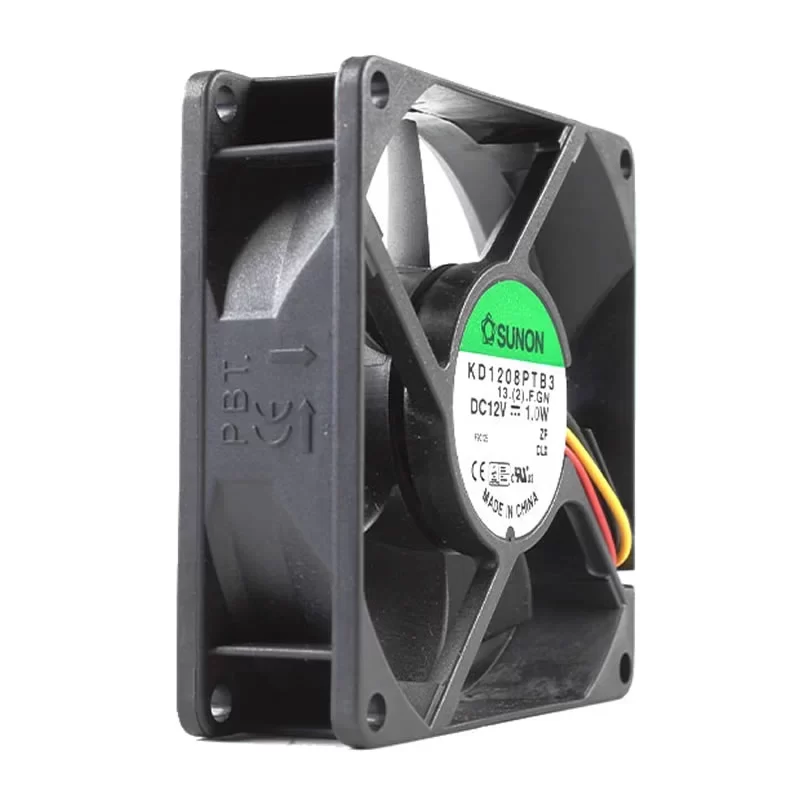

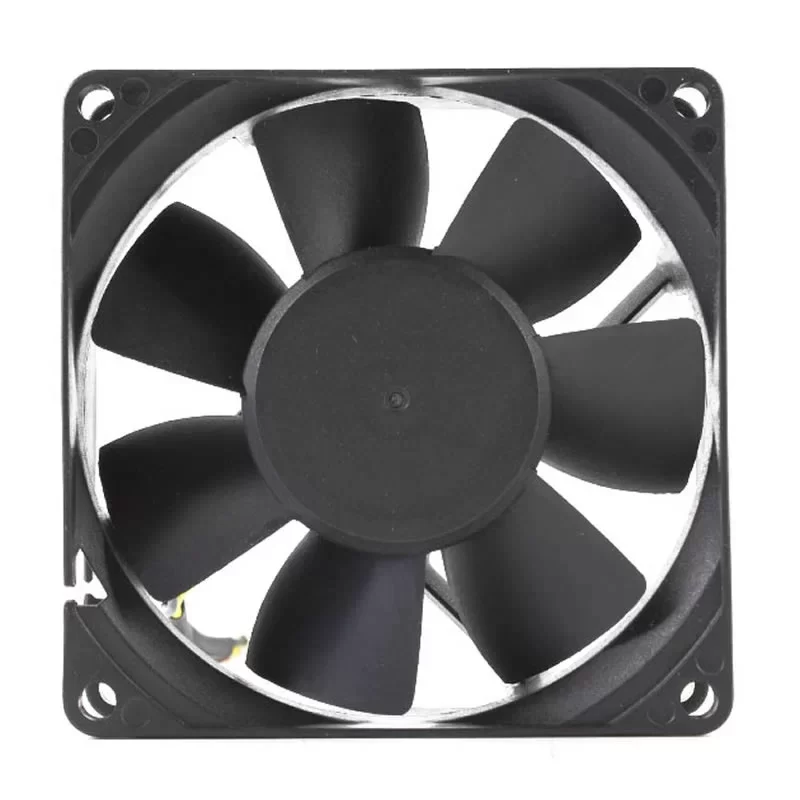

The Sunon KD1208PTB3.13.(2).F.GN is a high-performance 12VDC 80 x 80 x 25 mm DC axial fan, engineered for reliable thermal management in industrial and IT systems. Featuring dual ball bearings, a flame-retardant plastic frame, and impeller (UL 94V-0), this compact cooling fan delivers a Working Air Flow of 33.10 CFM (56.2 m³/h / 0.94 m³/min) and a Static Pressure Increase of 3.30 mmH₂O (32.4 Pa / 0.13 inAq) at a rated speed of 2,500 RPM. Operating on a voltage range of 5.0 – 13.8 VDC, it draws a maximum current of 0.12 A with a power consumption of 1.4 W and includes a 3-wire lead connection with a frequency generator (tachometer) output. Built for continuous high-reliability cooling, it weighs 0.093 kg, operates quietly at 28 dBA within a temperature range of -10 to +70 °C, offers a life expectancy of 70,000 hours, and holds safety certifications including UL, TUV, CE, and RoHS.
KD1208PTB3.13.(2).F.GN Fan Parameters
Manufacturer: Sunon
Model Number: KD1208PTB3.13.(2).F.GN
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 5.0 – 13.8 VDC
Dimensions: 80 x 80 x 25 mm
Impeller Size: 80 mm
Weight: 0.093 kg
Frame Material: Plastic (PBT UL 94V-0)
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (3 Wires)
Rated Speed: 2,500 RPM (min⁻¹)
Max. Current Draw: 0.12 A
Max. Power Consumption: 1.4 W
Max. Air Flow: 33.10 CFM (56.2 m³/h / 0.94 m³/min)
Max. Static Pressure: 3.30 mmH₂O (32.4 Pa / 0.13 inAq)
Noise Level: 28 dBA
Operating Temperature: -10 – +70 °C
Storage Temperature: -40 – +70 °C
Life Expectancy: 70,000 hours
Safety Approvals: UL, TUV, CE, RoHS
Application
The Sunon KD1208PTB3.13.(2).F.GN is deployed in industrial automation control panels, power supply units, industrial frequency converters, VFD systems, server racks, medical diagnostic equipment, and telecommunications switchgear.
