Description

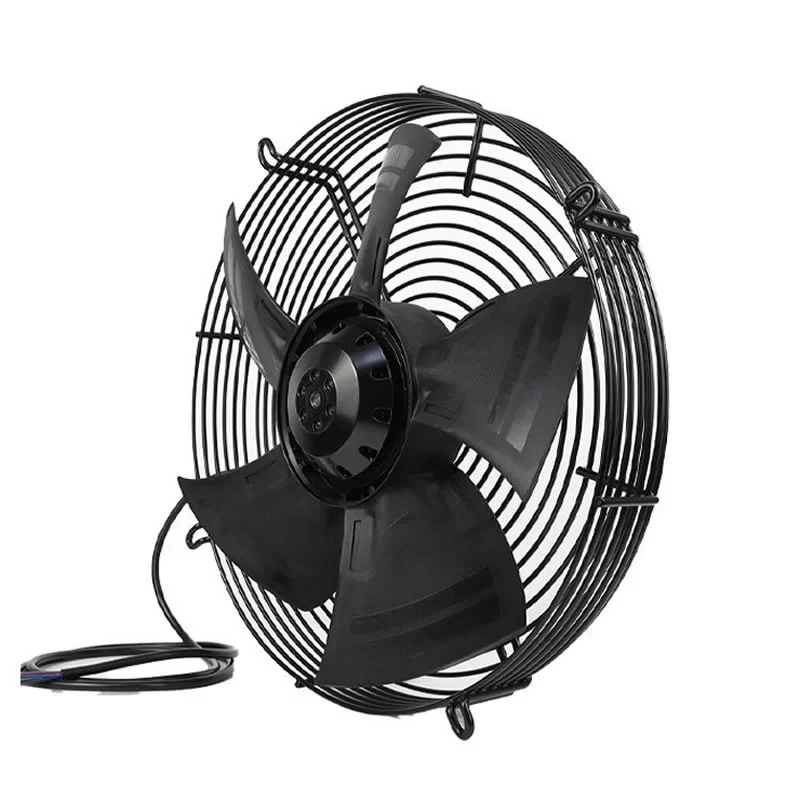

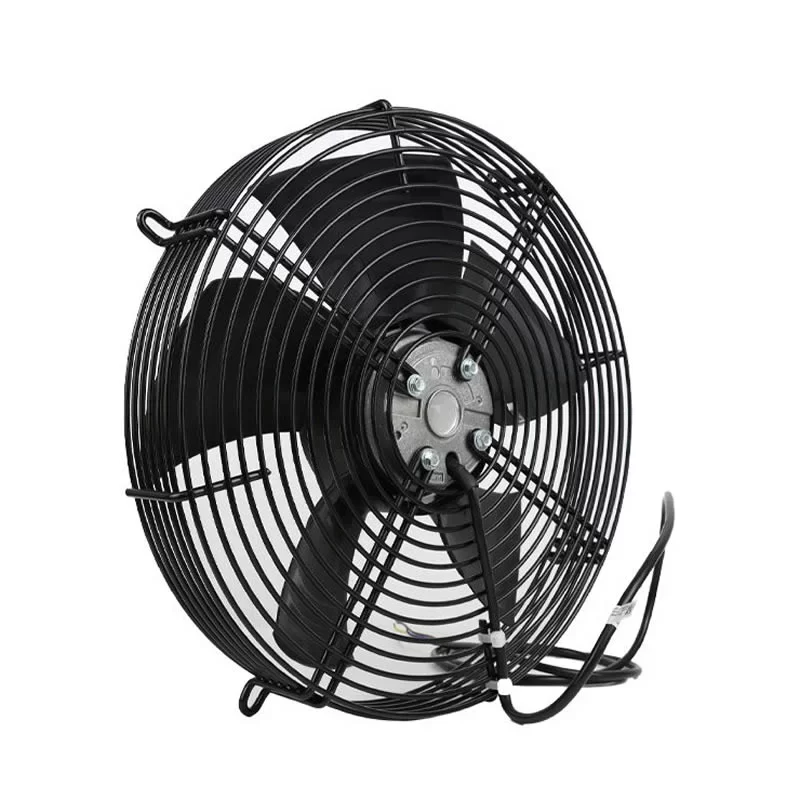

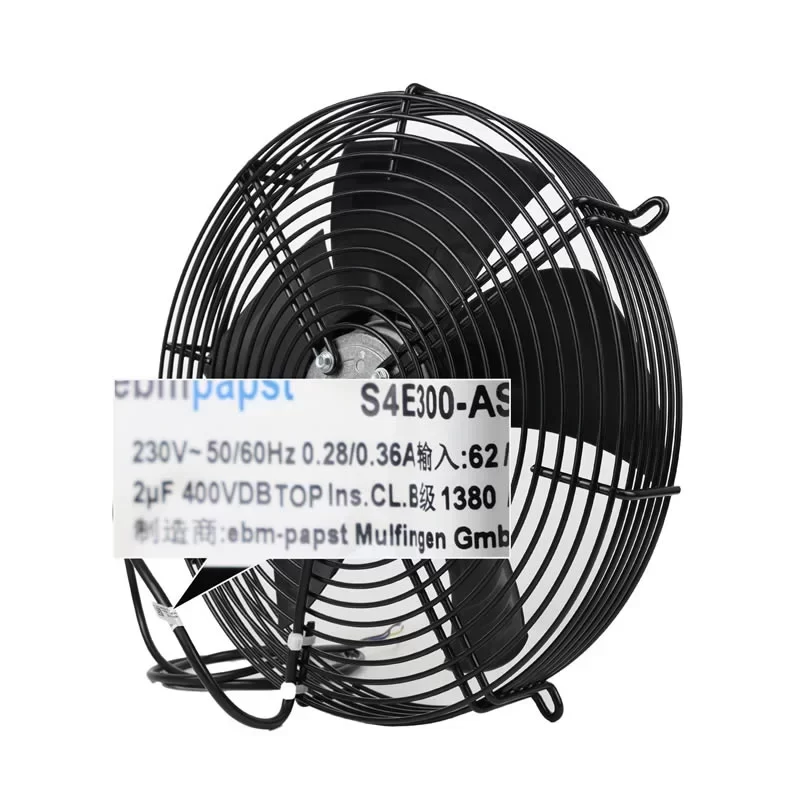

The ebmpapst S4E300-AS72-53/C01 is a high-performance 230VAC Φ360 x 131 mm AC axial fan, engineered for reliable thermal management in commercial refrigeration, evaporators, and HVAC systems. Driven by the M4E068-CF motor, this industrial cooling fan features maintenance-free ball bearings, a robust phosphated steel guard grille coated in black plastic, an ABS plastic terminal box, and a 5-blade PP plastic impeller with a black-coated rotor. It delivers an airflow of 1060.0 / 1220.0 CFM (1800.0 / 2070.0 m³/h / 30.00 / 34.50 m³/min) and a static pressure of 6.12 mmH₂O (60.0 Pa / 0.24 inH₂O) at a rated speed of 1,350 / 1,500 RPM. Operating on a nominal voltage of 230 VAC (50/60 Hz), it draws a maximum current of 0.32 / 0.40 A with a power consumption of 70 / 90 W. Equipped with an internal thermal overload protector (TOP), an integrated motor capacitor (2 µF / 400 VDB, P0 standard), and variable terminal box electrical leads, it offers IP44 protection, insulation class B, humidity class F1-2, touch current < 0.75 mA, and protection class I. Built for continuous S1 operation, it weighs 3.00 kg, operates within an ambient temperature range of -30 to +60 °C (transport/storage -40 to +80 °C), offers a life expectancy of 40,000 hours, and holds safety certifications including CCC, CE, and RoHS.
S4E300-AS72-53/C01 Fan Parameters
Manufacturer: ebmpapst
Model Number: S4E300-AS72-53/C01
Motor: M4E068-CF
Type: AC Axial Fan
Nominal Voltage: 230 VAC
Operating Voltage Range: 200 – 240 VAC (50/60 Hz)
Dimensions: Φ360 x 131 mm
Impeller Size: 300 mm
Number of Blades: 5
Weight: 3.00 kg
Terminal Box Material: ABS plastic, black
Guard Grille Material: Steel (Phosphated and coated with black plastic)
Impeller Material: Plastic (PP)
Rotor Surface: Coated in black
Bearing Type: Ball Bearing
Power Connection Type: Terminal Box (variable cable exit)
Rated Speed: 1,350 / 1,500 RPM (min⁻¹)
Max. Current Draw: 0.32 / 0.40 A
Max. Power Consumption: 70 / 90 W
Motor Capacitor: 2 µF / 400 VDB
Capacitor Standard: P0 (CE)
Touch Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) wired internally
Degree of Protection: IP44 (installation- and position-dependent as per EN 60034-5)
Insulation Class: “B”
Humidity Class: F1-2
Operation Mode: S1
Max. Air Flow: 1060.0 / 1220.0 CFM (1800.0 / 2070.0 m³/h / 30.00 / 34.50 m³/min)
Max. Static Pressure: 6.12 mmH₂O (60.0 Pa / 0.24 inH₂O)
Noise Level: 53 / 56 dBA
Operating Temperature: -30 – +60 °C
Storage Temperature: -40 – +80 °C
Life Expectancy: 40,000 hours
Safety Approvals: CCC, CE, RoHS
Application
The ebmpapst S4E300-AS72-53/C01 is deployed in commercial refrigeration evaporators, walk-in coolers, condensing units, heat exchangers, industrial air conditioning systems, and general HVAC ventilation equipment.
