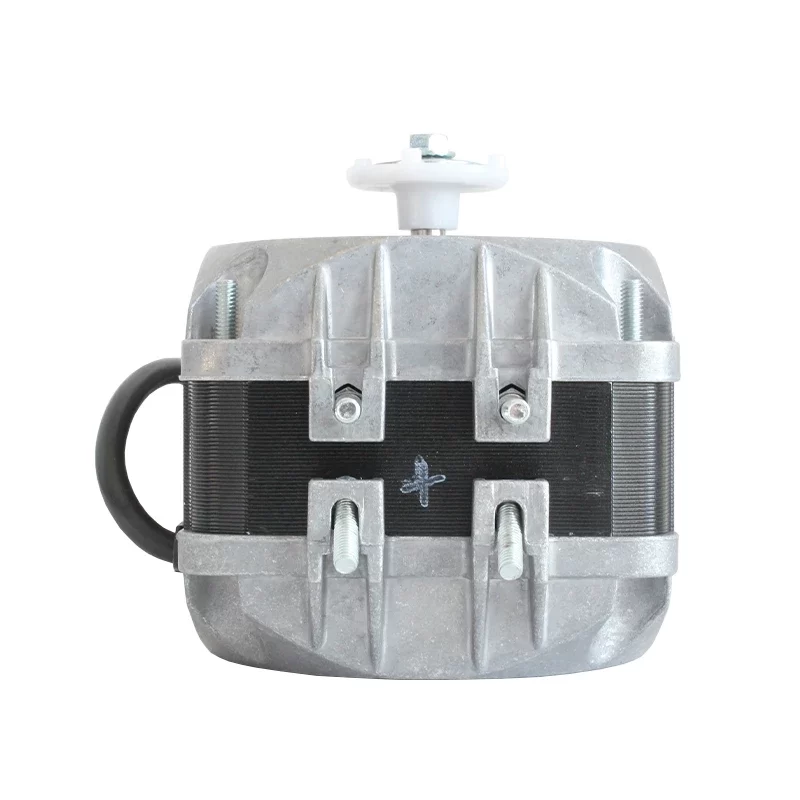

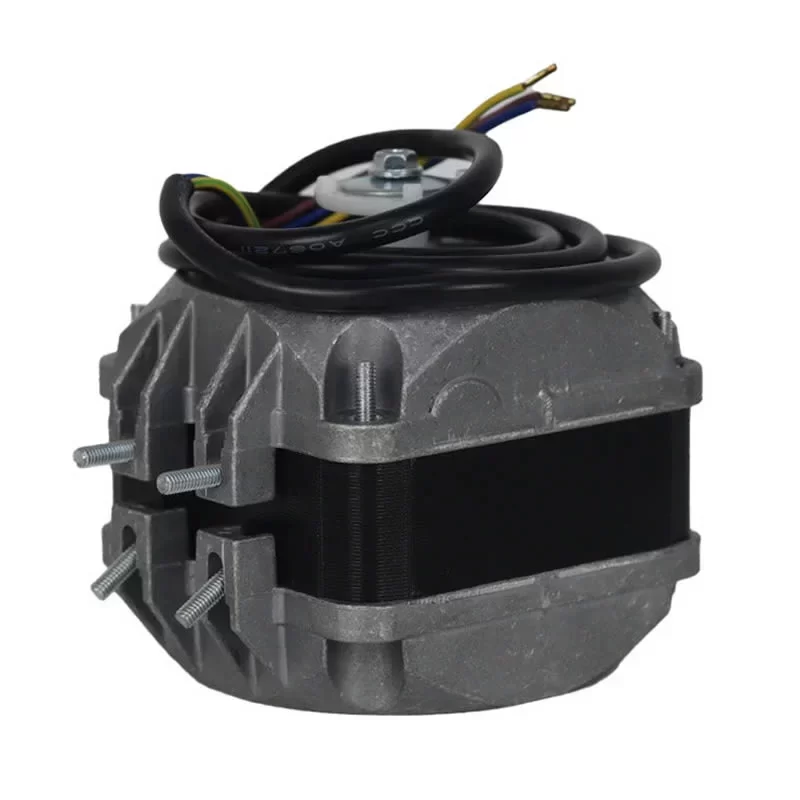

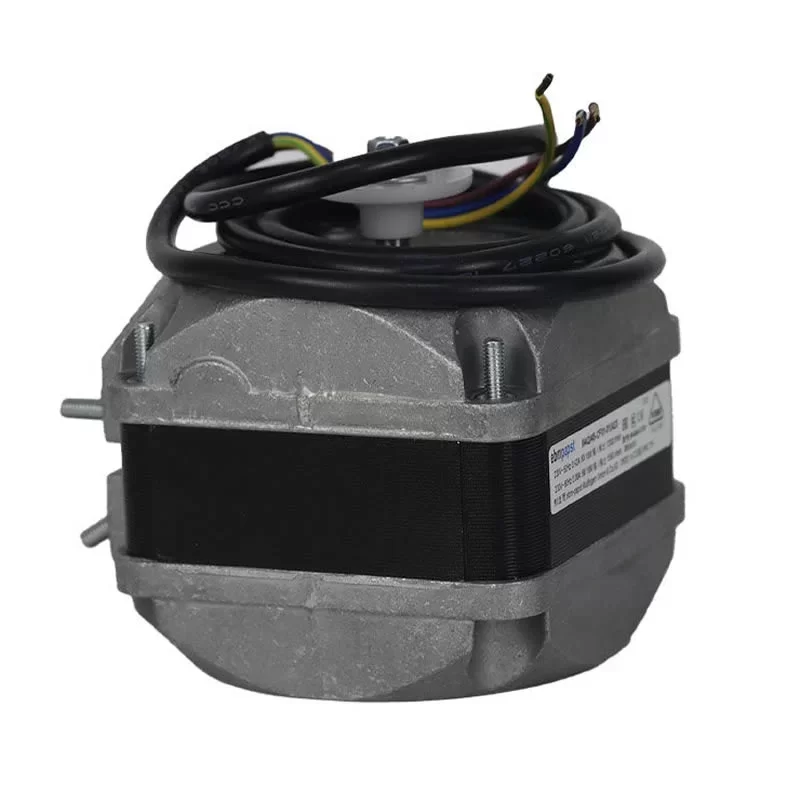

M4Q045-CF01-01/A23 ebmpapst 230VAC AC Shaded-Pole Motor

Description

The ebmpapst M4Q045-CF01-01/A23 is a robust single-phase AC shaded-pole motor designed for commercial refrigeration, evaporators, and ventilation units. Engineered for a nominal multi-frequency voltage of 230 VAC at 50 / 60 Hz, it delivers multi-frequency performance: operating at 50 Hz, it provides a rated speed of 1,300 min⁻¹, drawing a power consumption of 60 W (16 W power output) with a current draw of 0.42 A and a starting current of 0.58 A; at 60 Hz, it achieves 1,550 min⁻¹, drawing a power consumption of 58 W (16 W power output) with a current draw of 0.36 A and a starting current of 0.5 A. Constructed with a weight of 1.3 kg, a 45 mm fan size, a die-cast aluminum bearing shield, a calotte bearing system, and insulation class “B”, this motor ensures long-term reliability in demanding environments. It features a counterclockwise direction of rotation viewed toward the rotor, an internal thermal overload protector (TOP), IP42 degree of protection (installation- and position-dependent), protection class I (with customer connection of protective earth), and conforms to EN 60335-1 and CE standards with EAC and VDE approvals. Designed for continuous S1 duty mode in any installation position, it operates reliably across an ambient temperature range of -30 to +40 °C, with a transport and storage temperature range of -40 to +80 °C.

M4Q045-CF01-01/A23 Fan Parameters
Manufacturer: ebmpapst
Model Number: M4Q045-CF01-01/A23
Type: AC Shaded-Pole Motor / Fan Motor
Motor Design: Single-Phase, AC Shaded-Pole Motor
Fan Size: 45 mm
Weight: 1.3 kg
Bearing System: Calotte Bearing
Bearing Shield Material: Die-cast aluminum
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage Holes: None
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Power Consumption: 60 W (50 Hz) / 58 W (60 Hz)
Power Output: 16 W
Current Draw: 0.42 A (50 Hz) / 0.36 A (60 Hz)
Starting Current: 0.58 A (50 Hz) / 0.5 A (60 Hz)
Speed: 1300 min⁻¹ (50 Hz) / 1550 min⁻¹ (60 Hz)
Insulation Class: “B”
Degree of Protection: IP42; installation- and position-dependent
Protection Class: I (with customer connection of protective earth)
Touch Current According to IEC 60990: < 0.75 mA
Mode: S1
Operating Temperature Range: -30 to +40 °C
Transport/Storage Temperature Range: -40 to +80 °C
Motor Protection: Thermal overload protector (TOP) internally connected
With Cable: Lateral
Conformity with Standards: EN 60335-1; CE
Approvals: EAC; VDE

Application
The ebmpapst M4Q045-CF01-01/A23 is deployed in commercial refrigeration units, evaporators, condensers, commercial freezers, unit coolers, ventilation systems, and general HVAC equipment requiring dependable continuous-duty air movement.
