Description

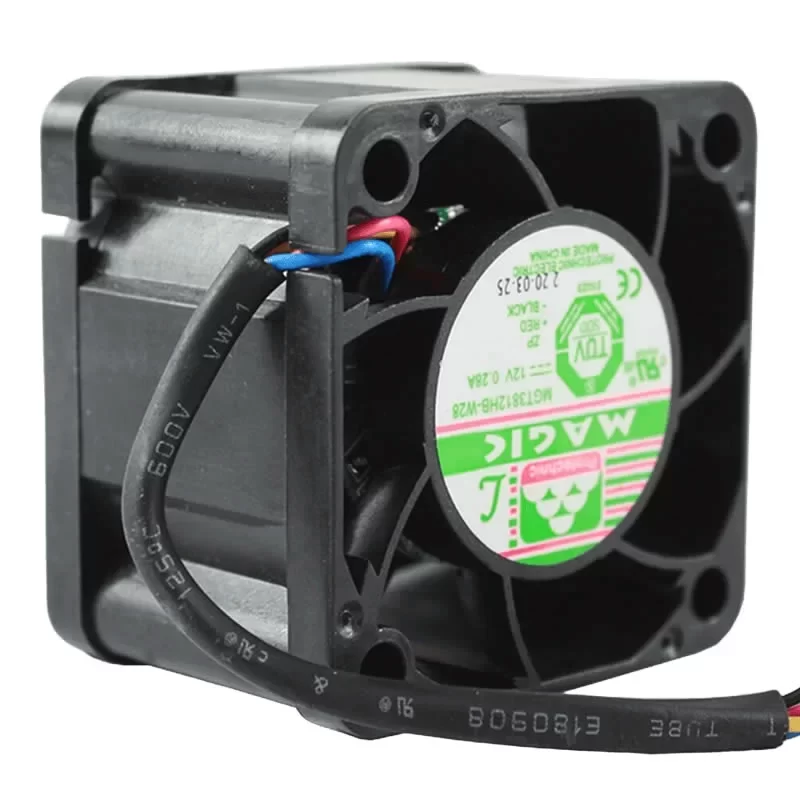

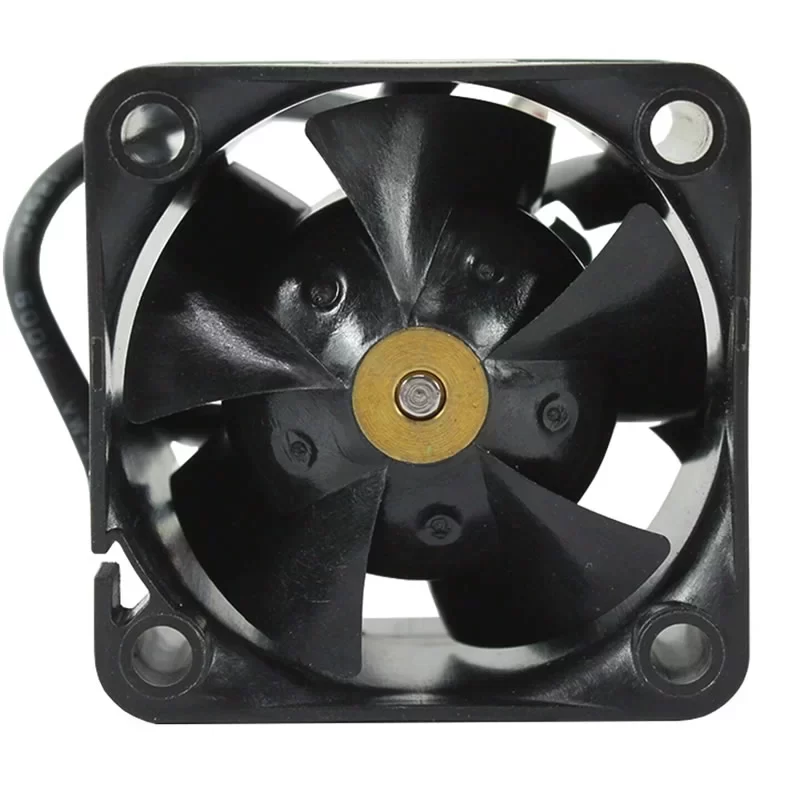

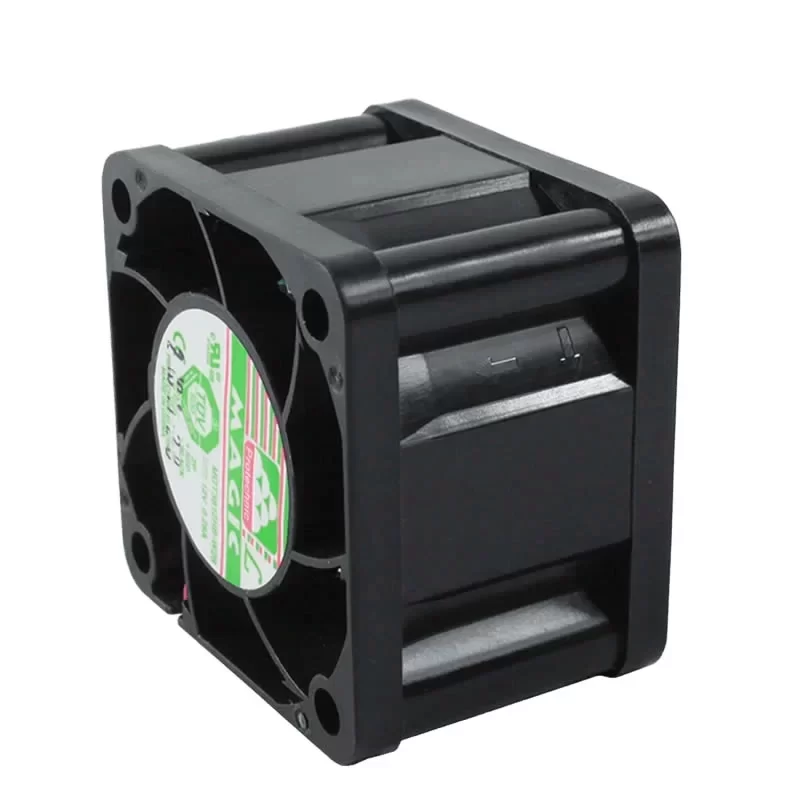

The Protechnic MGT3812HB-W28 is a high-performance 12 VDC DC Axial Fan with dimensions of 38 x 38 x 28 mm, engineered for compact high-density electronic cooling. Constructed with a thermoplastic housing (UL 94V-0), thermoplastic impeller, and maintenance-free dual ball bearings, it has a weight of 43 g. Driven by a brushless DC motor, it operates at a nominal voltage of 12 VDC with a rated current of 0.28 A (actual current 0.23 A) and a power consumption of 3.36 W (actual power 2.76 W). Operating at a nominal speed of 11000 RPM, it produces a max. air flow of 15.05 CFM (25.56 m³/h / 0.43 m³/min) and a max. static pressure of 19.50 mmH₂O (191.30 Pa / 0.77 inH₂O) with a noise level of 50.0 dBA. Featuring a 4-wire connection with PWM speed control input and FG speed monitoring tachometer signal output, it is designed for an operating temperature range of -10 to +70 °C and a lifetime of 40,000 hours at 60 °C, with CE, TUV, and UL agency approvals.
MGT3812HB-W28 Fan Parameters
Manufacturer: Protechnic Electric
Model Number: MGT3812HB-W28
Type: DC Axial Fan
Dimensions: 38 x 38 x 28 mm
Weight: 43 g
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Motor Type: Brushless DC Motor
Lead Wire: 4-Wire Leads
Features: PWM Speed Control, FG Tachometer Output, Polarity Protection, Auto-Restart Protection
Nominal Voltage: 12 VDC
Rated Current: 0.28 A
Power Consumption: 3.36 W
Speed: 11000 RPM
Max. Air Flow: 15.05 CFM (25.56 m³/h / 0.43 m³/min)
Max. Static Pressure: 19.50 mmH₂O (191.30 Pa / 0.77 inH₂O)
Noise Level: 50.0 dBA
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 40000 h @ 60°C
Agency Approvals: CE, TUV, UL
Application
The Protechnic MGT3812HB-W28 is deployed in 1U rackmount servers, network switches, routers, telecom transmission chassis, high-density power supply units, and compact industrial computing systems requiring intelligent PWM speed regulation and FG tachometer monitoring.
