Description

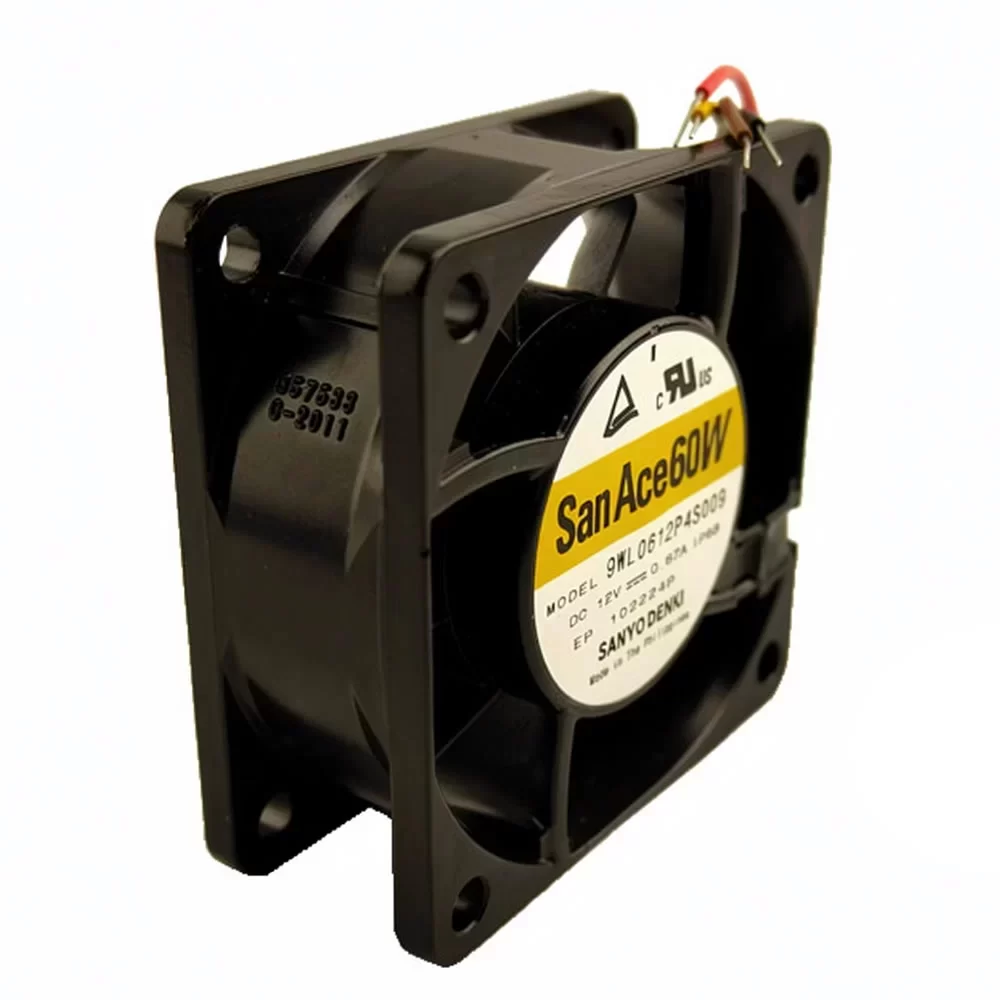

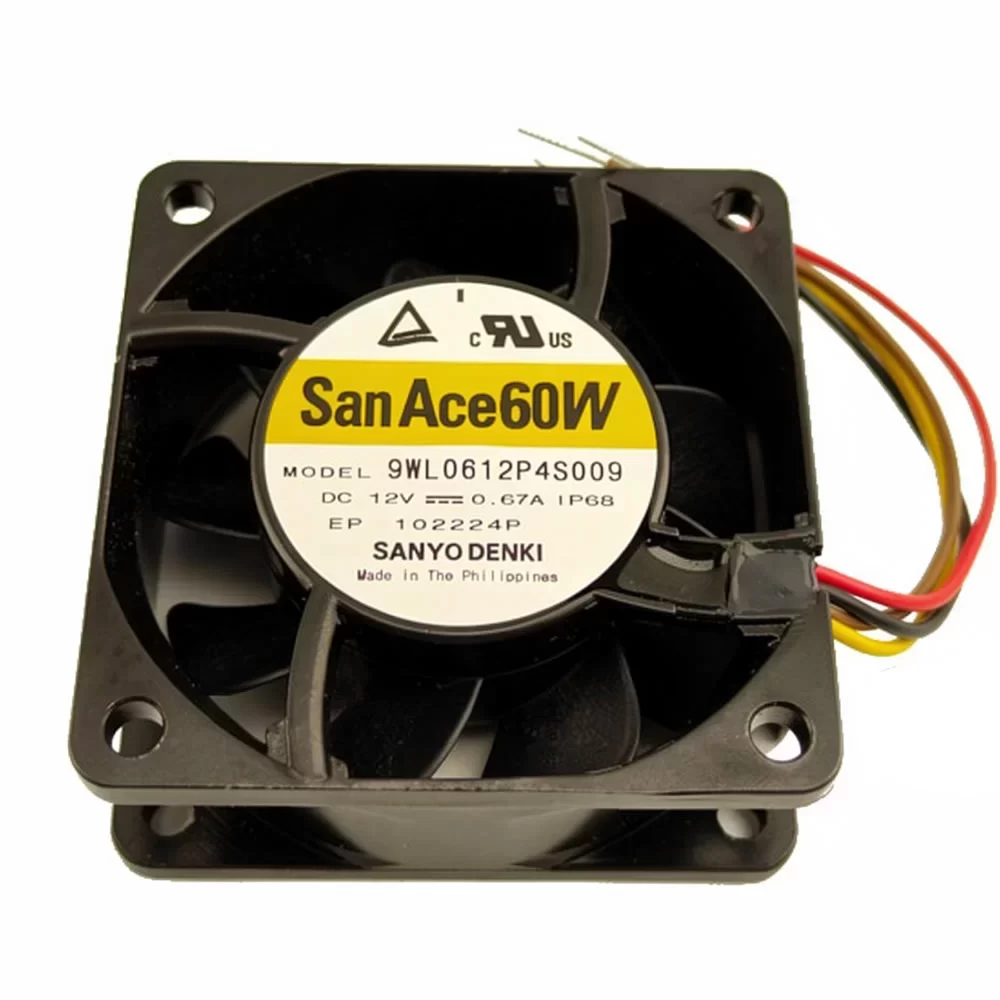

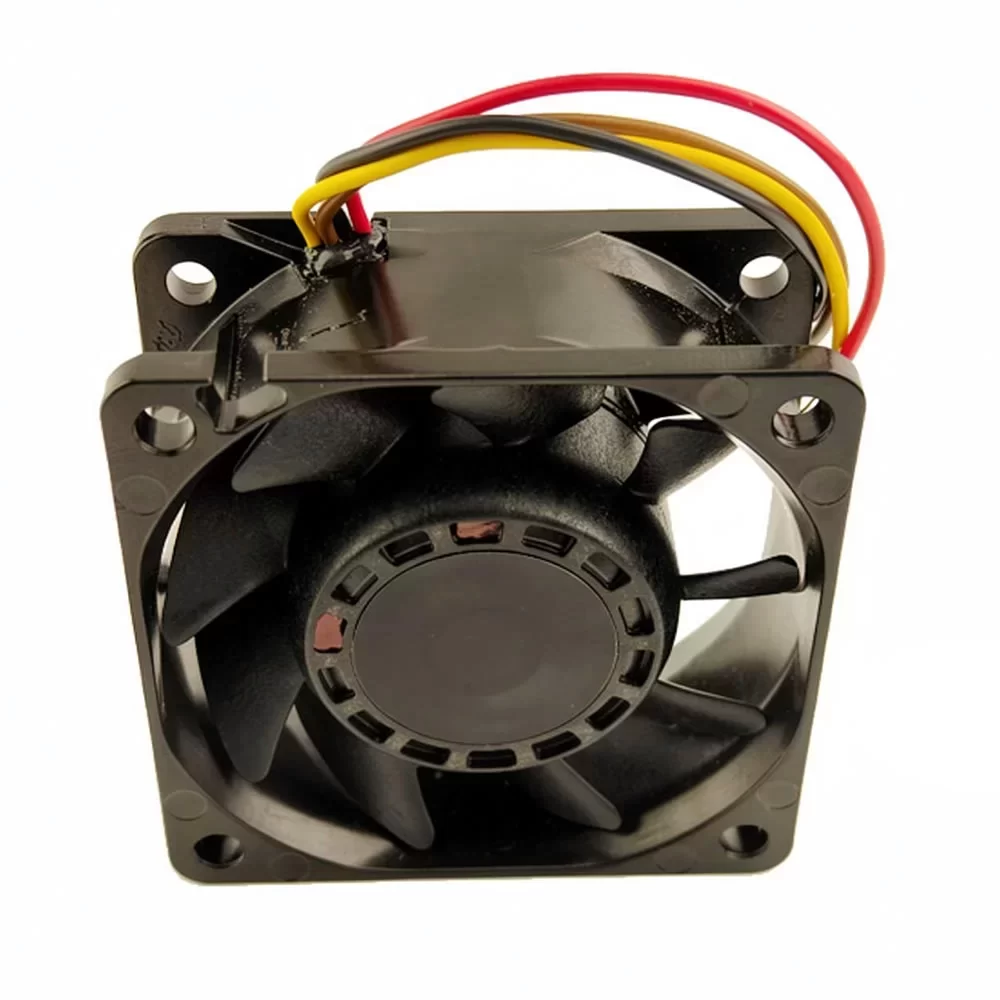

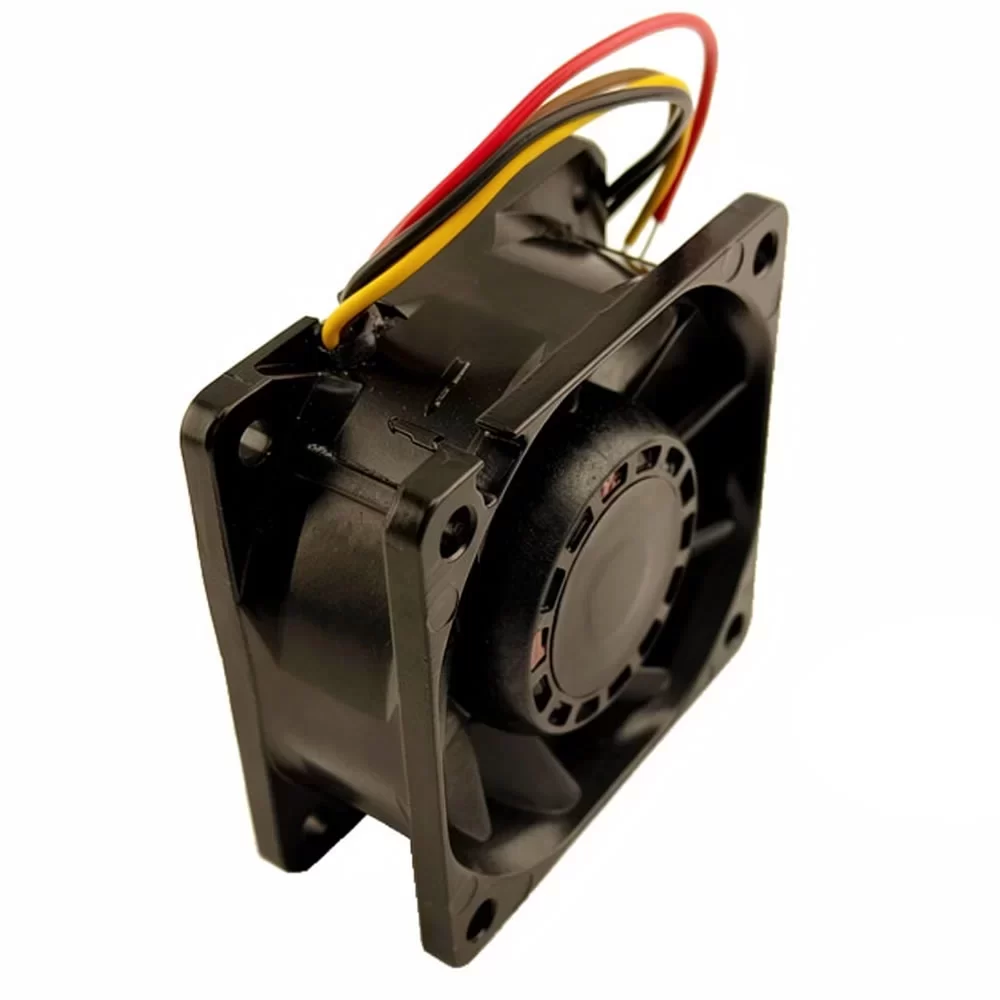

The Sanyo Denki 9WL0612P4S009 is a high-performance 12 VDC DC Axial Fan with dimensions of 60 x 60 x 25 mm, engineered for harsh environments. Constructed with an aluminum frame, a plastic impeller, and long-life dual ball bearings, it has a weight of 130 g. Driven by a brushless DC motor operating across a voltage range of 10.8 – 13.2 VDC, it draws a rated current of 0.67 A with a power consumption of 8.04 W. Operating at a speed of 13100 RPM, it produces a max. air flow of 53.68 CFM (91.20 m³/h / 1.52 m³/min) and a max. static pressure of 39.77 mmH₂O (390.00 Pa / 1.57 inAq) with a noise level of 55.0 dBA. Engineered for reliable continuous operation, it features a 4-wire configuration with PWM speed control and tachometer output, IP68 degree of protection against dust and water immersion, and complies with UL agency approvals.
9WL0612P4S009 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9WL0612P4S009
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Weight: 130 g
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Dual Ball Bearing
Motor Type: Brushless DC Motor
Degree of Protection: IP68 (Waterproof & Dustproof)
Lead Wire: 4-Wire Configuration (Red, Black, Yellow, Brown)
Features: PWM Speed Control, Tachometer Output (FG Signal), Locked Rotor Protection, Reverse Polarity Protection
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.67 A
Power Consumption: 8.04 W
Speed: 13100 RPM
Max. Air Flow: 53.68 CFM (91.20 m³/h / 1.52 m³/min)
Max. Static Pressure: 39.77 mmH₂O (390.00 Pa / 1.57 inAq)
Noise Level: 55.0 dBA
Country of Origin: Philippines
Agency Approvals: UL (cRUus)
Application
The Sanyo Denki 9WL0612P4S009 is deployed in outdoor telecom cabinets, solar inverters, EV charging stations, LED billboards, harsh industrial automation equipment, and military-grade electronics exposed to dust, water, and extreme weather.
