Description

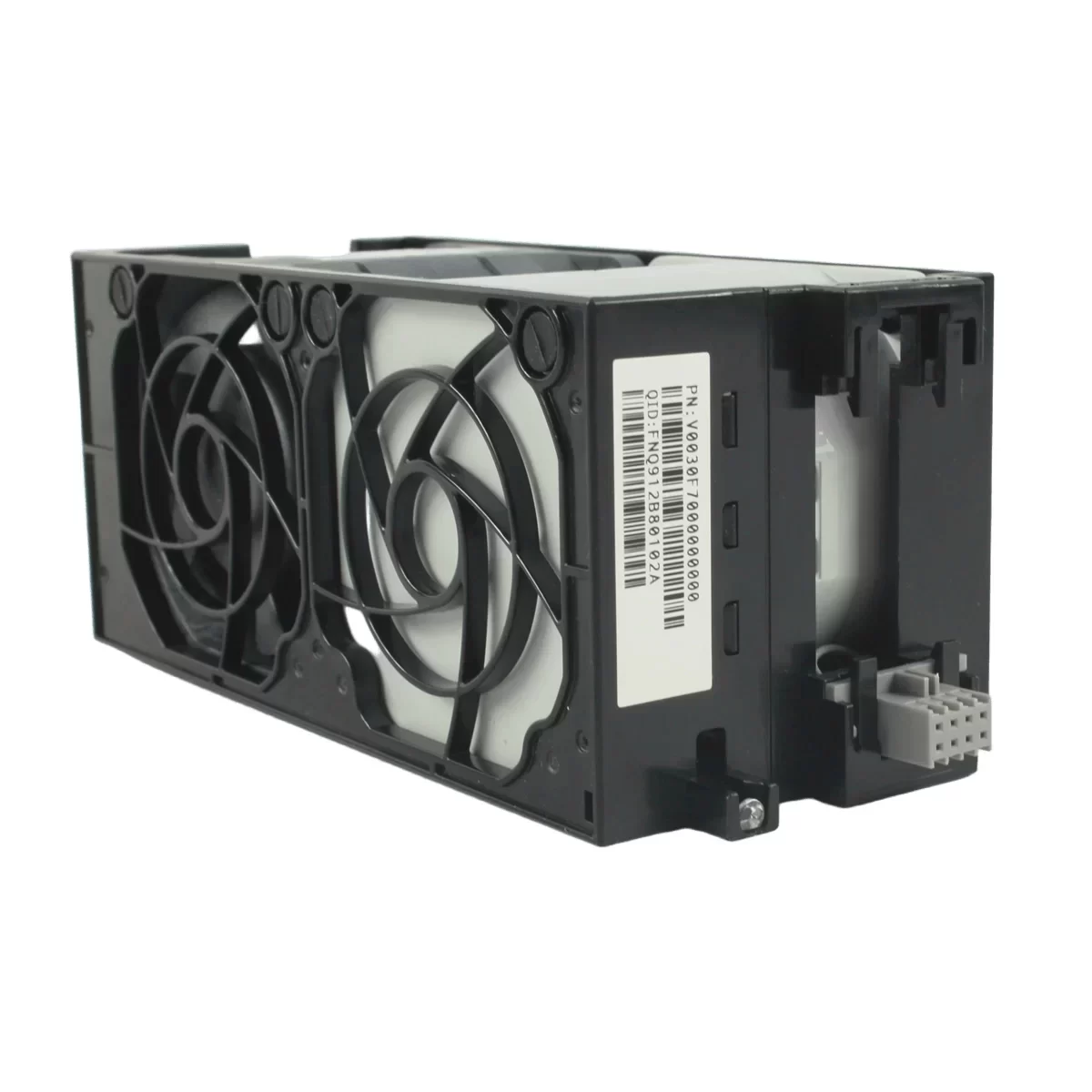

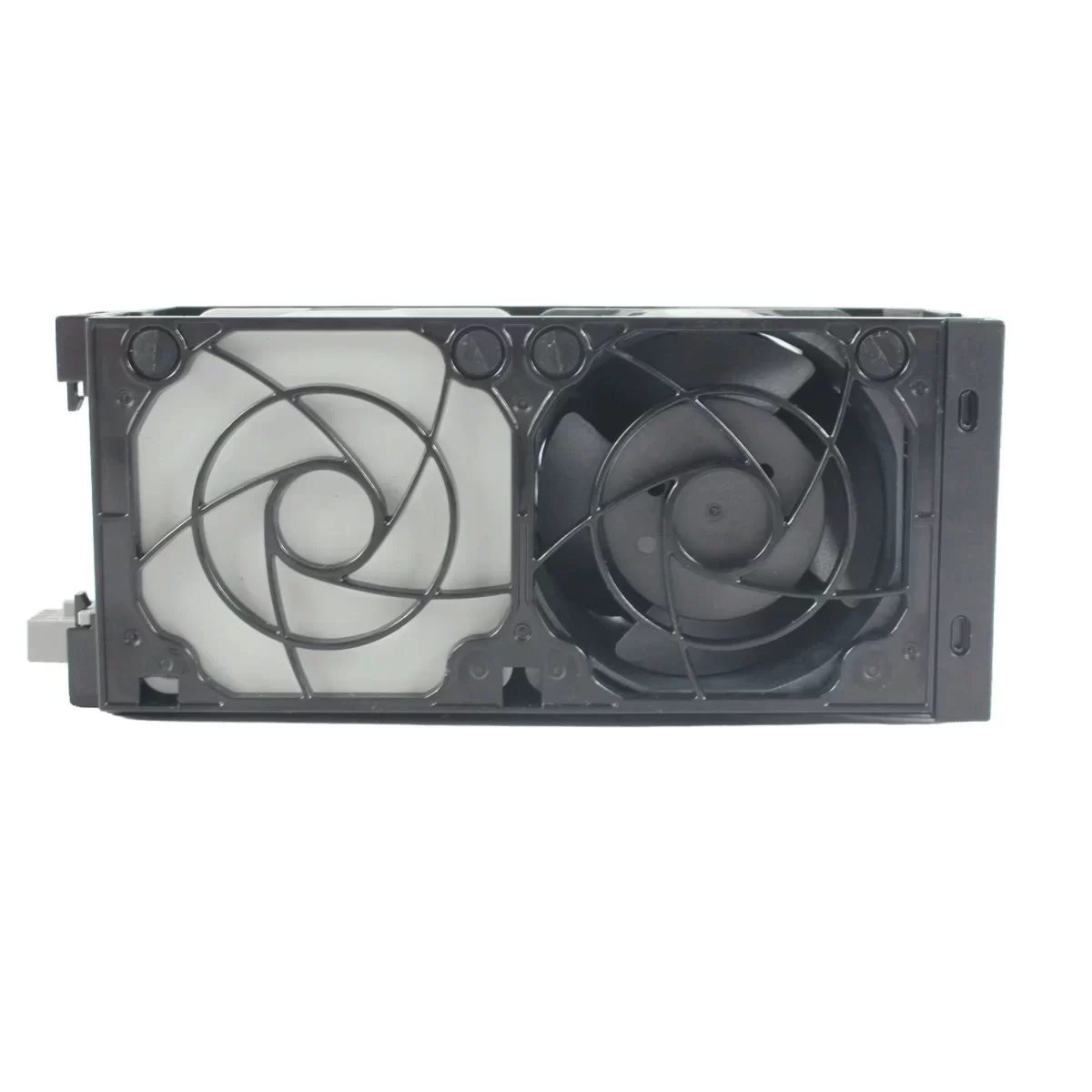

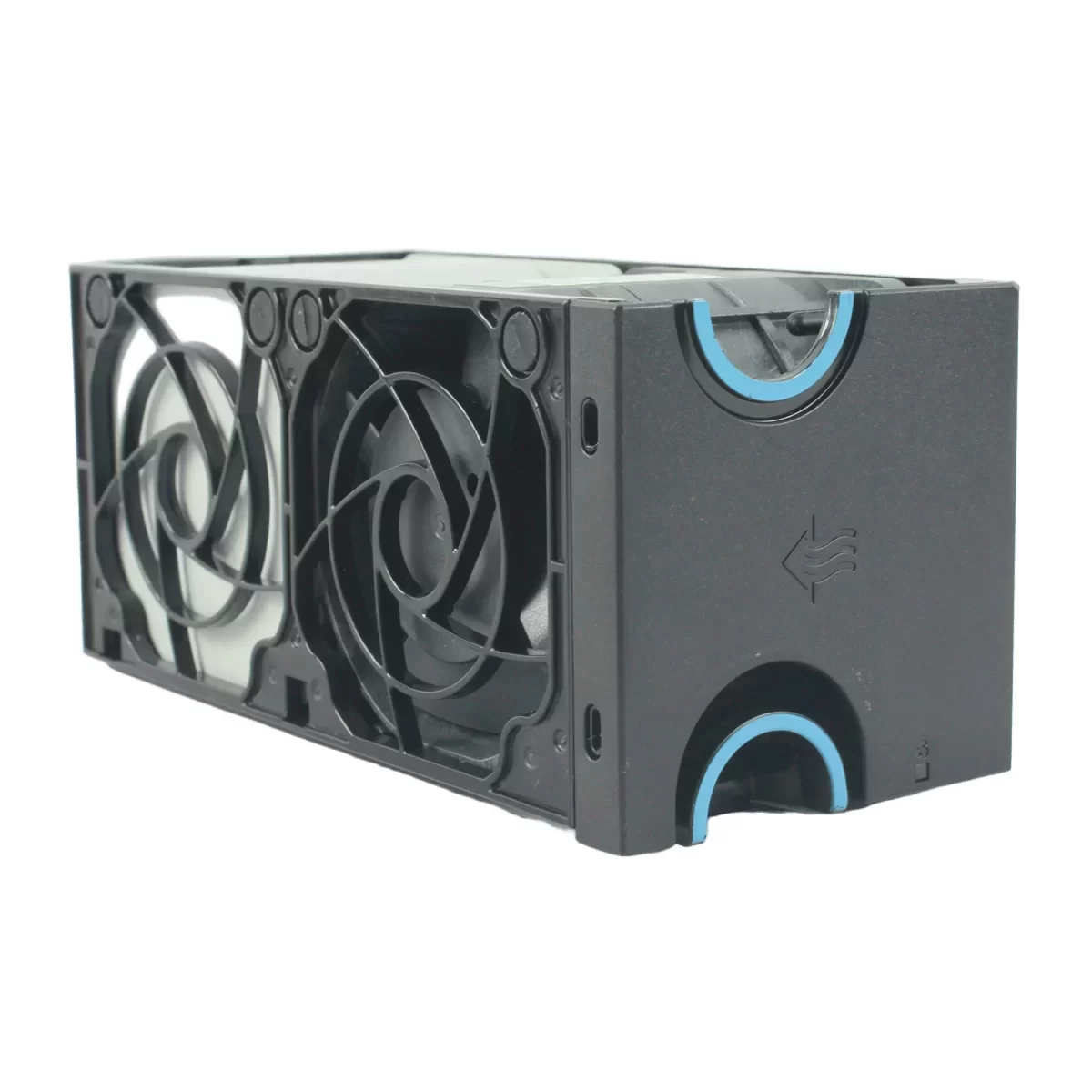

The Protechnic MGT6012UB-W56 is an ultra-high-performance 12 VDC DC Server Fan Module engineered for high-density enterprise server racks and industrial cooling enclosures. Driven by an advanced brushless DC motor operating at a nominal voltage of 12 VDC, it draws a rated current of 5.80 A with a power consumption of 69.60 W. Constructed with a heavy-duty PBT plastic housing, dual ball bearings, and a hot-swap multi-pin connector frame (Module PN: V0030F7000000000, QID: FNQ912B880102A), the assembly incorporates an integrated 60 FAN DUMMY baffle. Operating at a nominal speed of 16500 RPM, it delivers a Max. Air Flow of 78.50 CFM (133.37 m³/h / 2.22 m³/min) and a Max. Static Pressure of 62.50 mmH₂O (612.88 Pa / 2.46 inH₂O) with a noise level of 68.5 dBA. Built for mission-critical continuous operation, it features locked rotor protection, over-current protection, reverse polarity protection, and complies with CE, cULus (E20303154), and RoHS agency approvals.
MGT6012UB-W56 Fan Parameters
Manufacturer: Protechnic
Model Number: MGT6012UB-W56
Module Part Number: V0030F7000000000
QID Number: FNQ912B880102A
Type: High-Speed DC Server Fan Module
Country of Origin: China
Nominal Voltage: 12 VDC
Rated Current: 5.80 A
Power Consumption: 69.60 W
Motor Type: Brushless DC Motor
Electrical Connection: Hot-Swap Multi-Pin Connector
Control Interface & Signal: PWM Speed Control, Tachometer (FG) Output
Motor Protection: Locked Rotor Protection, Over-Current Protection, Reverse Polarity Protection
Speed: 16500 RPM
Max. Air Flow: 78.50 CFM (133.37 m³/h / 2.22 m³/min)
Max. Static Pressure: 62.50 mmH₂O (612.88 Pa / 2.46 inH₂O)
Noise Level: 68.5 dBA
Dimensions: 60 x 60 x 76 mm
Housing Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Agency Approvals: CE, cULus (E20303154), RoHS
Application
The Protechnic MGT6012UB-W56 server fan module is deployed in enterprise server enclosures, blade servers, high-density network switches, telecommunications routing equipment, data center storage arrays, and industrial computing chassis requiring high static pressure and active hot-swappable cooling.
