Description

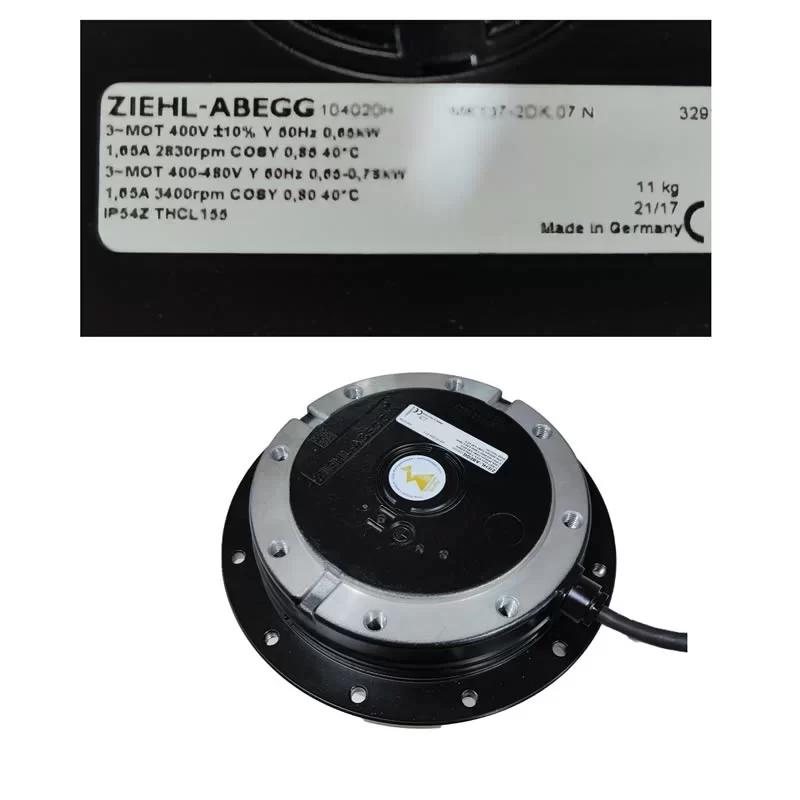

The ZIEHL-ABEGG MK137-2DK.07.N (Article Number: 210027H) is a high-performance 3-phase AC external rotor motor featuring a 137 mm stator diameter. Engineered in Germany for heavy-duty industrial applications, this robust motor features a dust-sealed design with a sealing band, long-time lubricated ball bearings, thermal contact motor protection, and IP54Z ingress protection. Operating on a 3-phase nominal voltage of 400 VAC (50 Hz) or 460 VAC (60 Hz) with ±10% tolerance in a Y (Star) connection, it delivers multi-frequency performance: at 400 VAC (50 Hz), it draws a Max. Current of 1.80 A at a rated speed of 2,820 RPM with a power factor (COSφ) of 0.78 at 40 °C. At 460 VAC (60 Hz), it operates at a Max. Current of 1.80 A with a rated speed of 3,430 RPM and a COSφ of 0.83 at 40 °C. Equipped with a 6-wire supply cable (6 x 0.75 mm² x 205 cm, Li4G4G-J), a jet black finish (RAL 9005), and a Weight of 11.60 kg, it operates reliably in ambient temperatures down to -40 °C under thermal class 155 construction, holding safety approvals including CE and RoHS.
MK137-2DK.07.N Fan Parameters
Manufacturer: ZIEHL-ABEGG
Article Number: 210027H
Model Number: MK137-2DK.07.N
Designation: External Rotor Motor
Type: AC External Rotor Motor
Phase: 3~
Motor Wiring: Y (Star Connection)
Nominal Voltage: 400 VAC (50 Hz) / 460 VAC (60 Hz)
Voltage Tolerance: ±10%
Rated Speed: 2,820 RPM (@ 400 V 50 Hz) / 3,430 RPM (@ 460 V 60 Hz)
Max. Current Draw: 1.80 A (@ 400 V 50 Hz) / 1.80 A (@ 460 V 60 Hz)
Power Factor (COSφ): 0.78 (@ 50 Hz) / 0.83 (@ 60 Hz)
Rated Ambient Temperature: 40 °C
Min. Operating Temperature: -40 °C
Thermal Class: Thermal class 155
Weight: 11.60 kg
Bearing Type: Ball Bearing with Long-Time Lubrication
Degree of Protection: IP54Z
Motor Protection: Thermal Contact
Electrical Connection: Supply Cable Side, 6 x 0.75 mm² x 205 cm (Li4G4G-J)
Connection Diagram: 1360-159X
Mounting Position: Position H
Motor Finish: 1 Coat Paint Resistance Class 1 (L-TI-0596)
Color: RAL 9005 (Jet Black)
Special Features: Dust Sealed Design with Sealing Band
Country of Origin: Made in Germany
Safety Approvals: CE, RoHS
Application
The ZIEHL-ABEGG MK137-2DK.07.N is deployed in industrial burners, ventilation units, heavy-duty industrial blowers, and specialized motorized equipment requiring reliable 3-phase external rotor motor performance under harsh environmental conditions.
