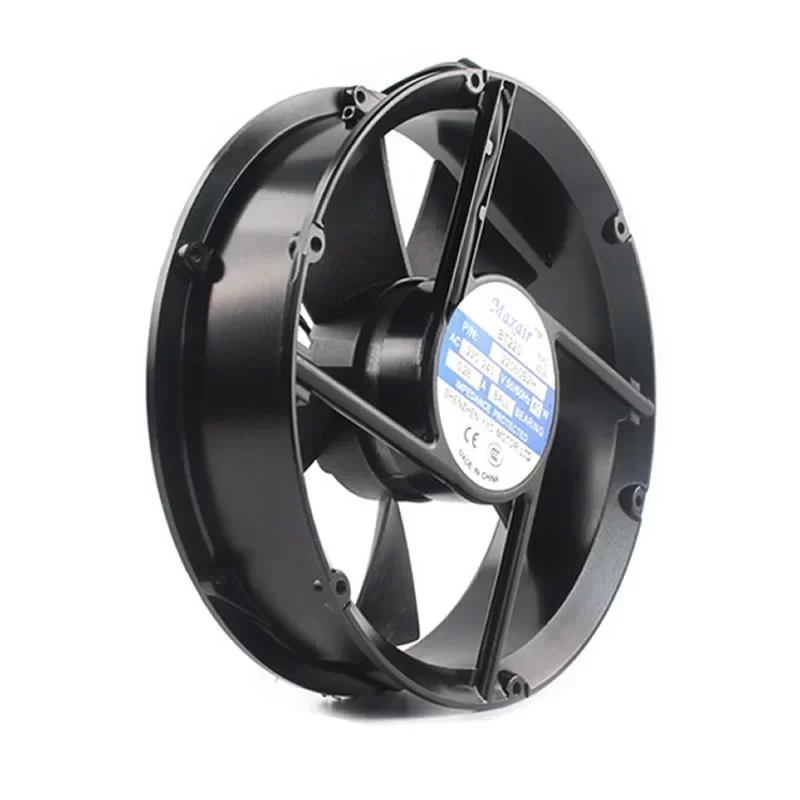

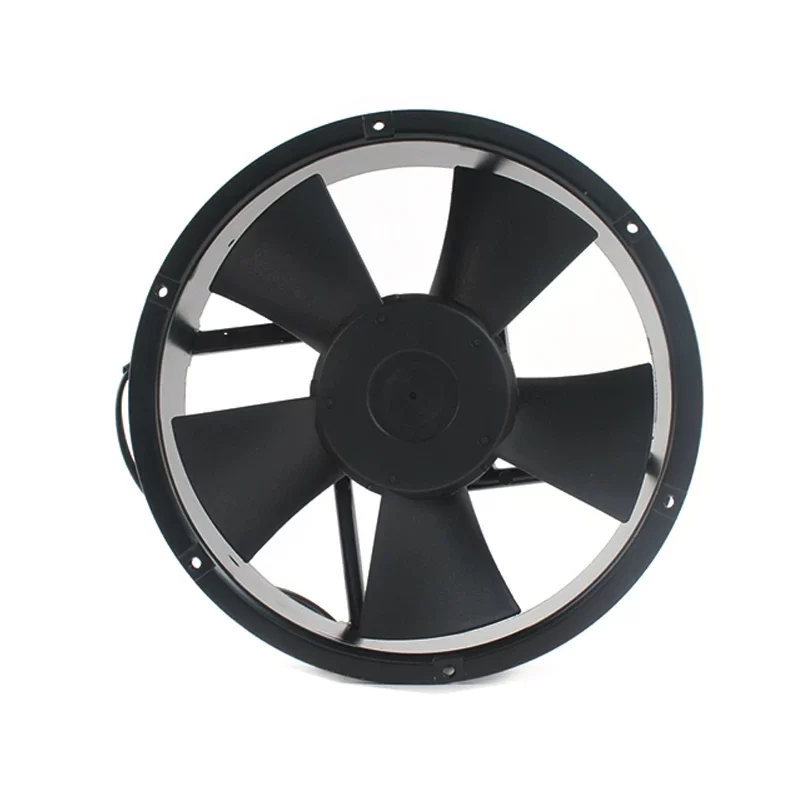

22060B2H Maxair 220VAC 220x60mm AC Axial Fan

Description

The Maxair 22060B2H is a high-performance 220 VAC AC axial fan with dimensions of φ220 x 60 mm. Engineered for intensive industrial thermal management, this robust cooling fan delivers a Max. Air Flow of 388.00 CFM (659.18 m³/h / 10.98 m³/min) at a rated speed of 2,400 RPM. It features ball bearings, thermoplastic PBT housing and blade construction, a Max. Power Consumption of 40 W, and a Max. Current Draw of 0.28 A. Designed with a lead wire connection, a net Weight of 1.34 kg, an operating temperature range of -20 – 50 °C, a life expectancy of 50,000 hours, and a noise level of 56 dBA, it provides reliable, continuous-duty cooling for industrial machinery and large electronic enclosures.

22060B2H Fan Parameters
Manufacturer: Maxair
Model Number: 22060B2H
Type: AC Axial Fan
Nominal Voltage: 220 VAC
Dimensions: φ220 x 60 mm
Rated Speed: 2,400 RPM (min⁻¹)
Max. Air Flow: 388.00 CFM (659.18 m³/h / 10.98 m³/min)
Max. Current Draw: 0.28 A
Max. Power Consumption: 40 W
Noise Level: 56 dBA
Life Expectancy: 50,000 h
Weight: 1.34 kg
Bearing Type: Ball Bearing
Electrical Connection: Lead Wire
Operating Temperature: -20 – 50 °C
Housing and Blade Material: Thermoplastic PBT
Safety Approvals: CE, RoHS

Application
The Maxair 22060B2H is deployed in industrial machinery, electrical control panels, automation systems, server cabinets, and heavy-duty electronic cooling units requiring reliable forced-air thermal management.
