Description

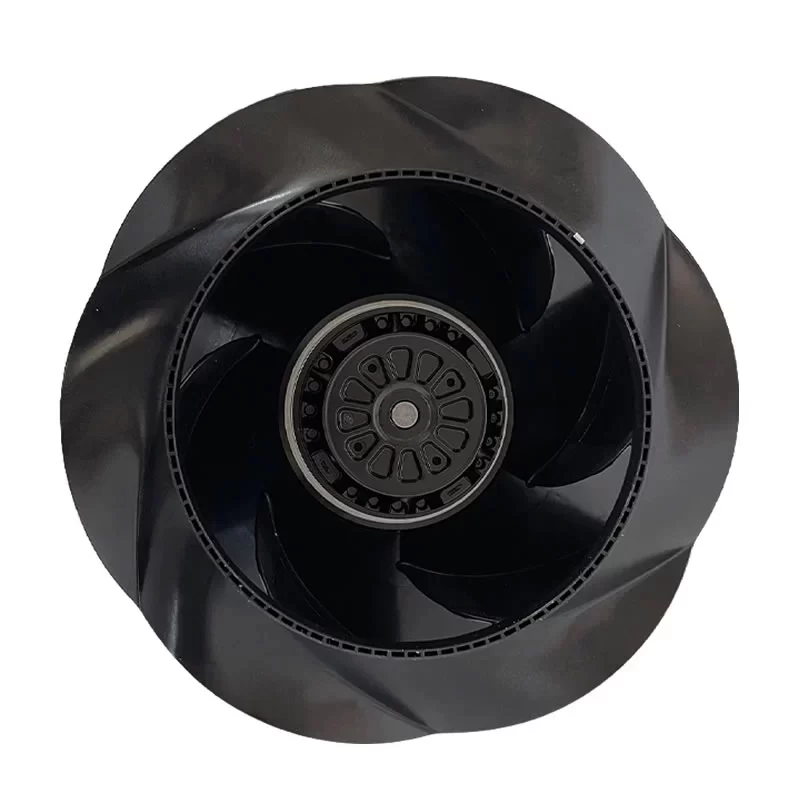

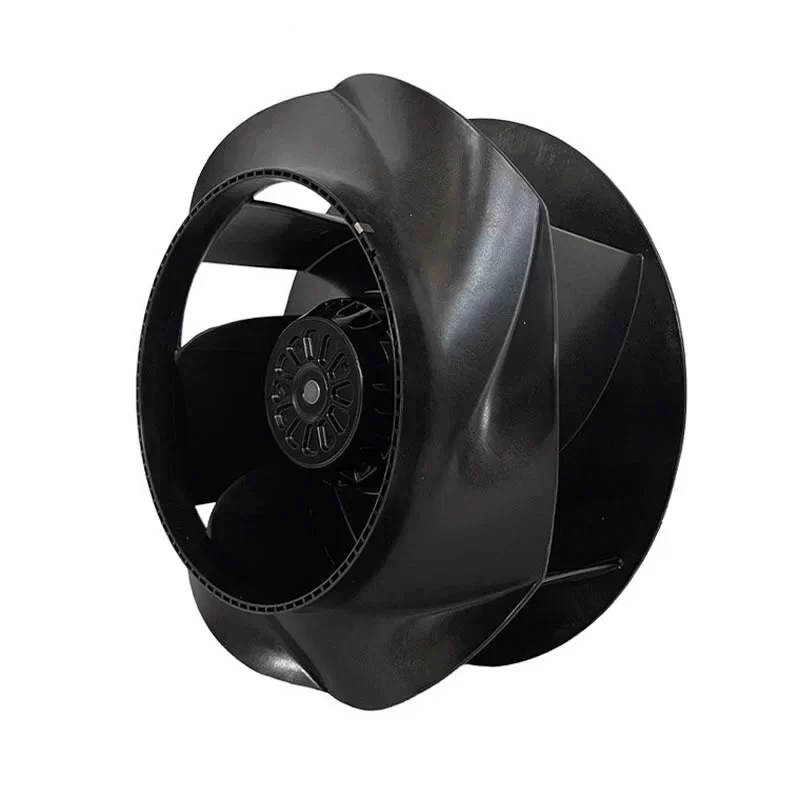

The ebmpapst R2D280-RB06-01 is a high-performance 230/400VAC three-phase AC centrifugal fan with an impeller size of Ø 280 mm and external dimensions of 295 x 295 x 170 mm, specifically engineered for intensive thermal management in industrial ventilation and commercial HVAC systems. Powered by a robust M2D074-GA motor, this single-intake backward-curved motorized impeller delivers high-volume airflow and static pressure capabilities. Operating at a nominal speed of 2,500 RPM under 230V Δ / 400V Y 50Hz configurations, it efficiently draws 1.58 / 0.91 A with a maximum power consumption of 570 W. Built with an IP44 protection rating, Class F insulation, 6 PP plastic blades, and precision ball bearings, the R2D280-RB06-01 weighs 5.4 kg and ensures reliable, continuous-duty performance in demanding thermal environments.
R2D280-RB06-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: R2D280-RB06-01
Motor Model: M2D074-GA
Type: AC Centrifugal Fan (RadiCal, Backward Curved, Single-Intake)
Impeller Size: Ø 280 mm
Dimensions: 295 x 295 x 170 mm
Weight: 5.4 kg
Impeller Material: PP Plastic
Number of Blades: 6
Rotor Surface: Painted black
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing Type: Ball Bearing
Phase: 3~ (Three-Phase)

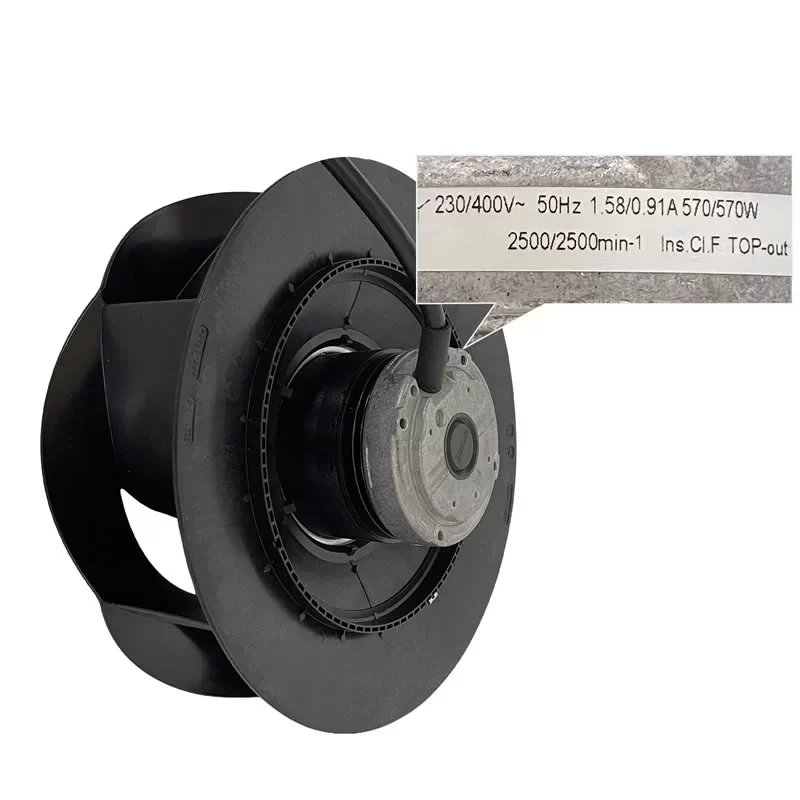

Data Sequence: (230V 50Hz Δ / 400V 50Hz Y)
Nominal Voltage: 230 / 400 VAC
Wiring: Δ / Y
Frequency: 50 / 50 Hz
Max. Current Draw: 1.58 / 0.91 A
Max. Power Consumption: 570 / 570 W
Starting Current: 4.36 / 2.52 A
Rated Speed: 2,500 / 2,500 RPM (min⁻¹)
Min. Back Pressure: 0 Pa (0 in. wg)
Ingress Protection: IP44 (installation- and position-dependent as per EN 60034-5)
Insulation Class: Class F
Environmental Protection Class: H1
Operating Mode: S1 (Continuous duty)
Operating Temperature: -25 – +50 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Motor Protection: Thermal overload protector (TOP) with basic insulation
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EAC, EN 60335-1, RoHS
Application
The ebmpapst R2D280-RB06-01 AC centrifugal fan is specifically designed for cooling industrial frequency converters, commercial air handling units, heat pumps, refrigeration equipment, telecommunications enclosures, and cleanroom ventilation systems requiring reliable high-pressure thermal extraction.
