Description

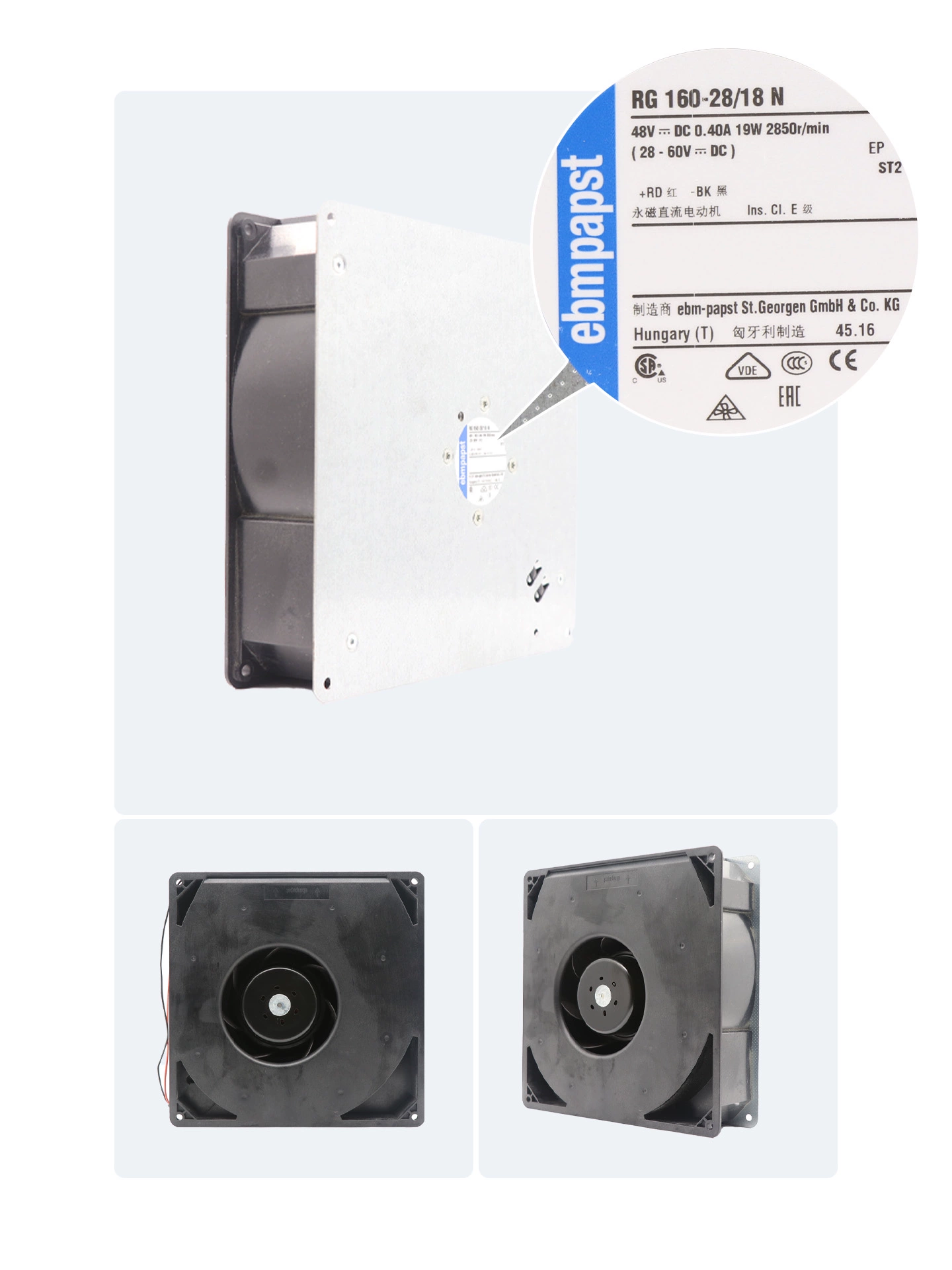

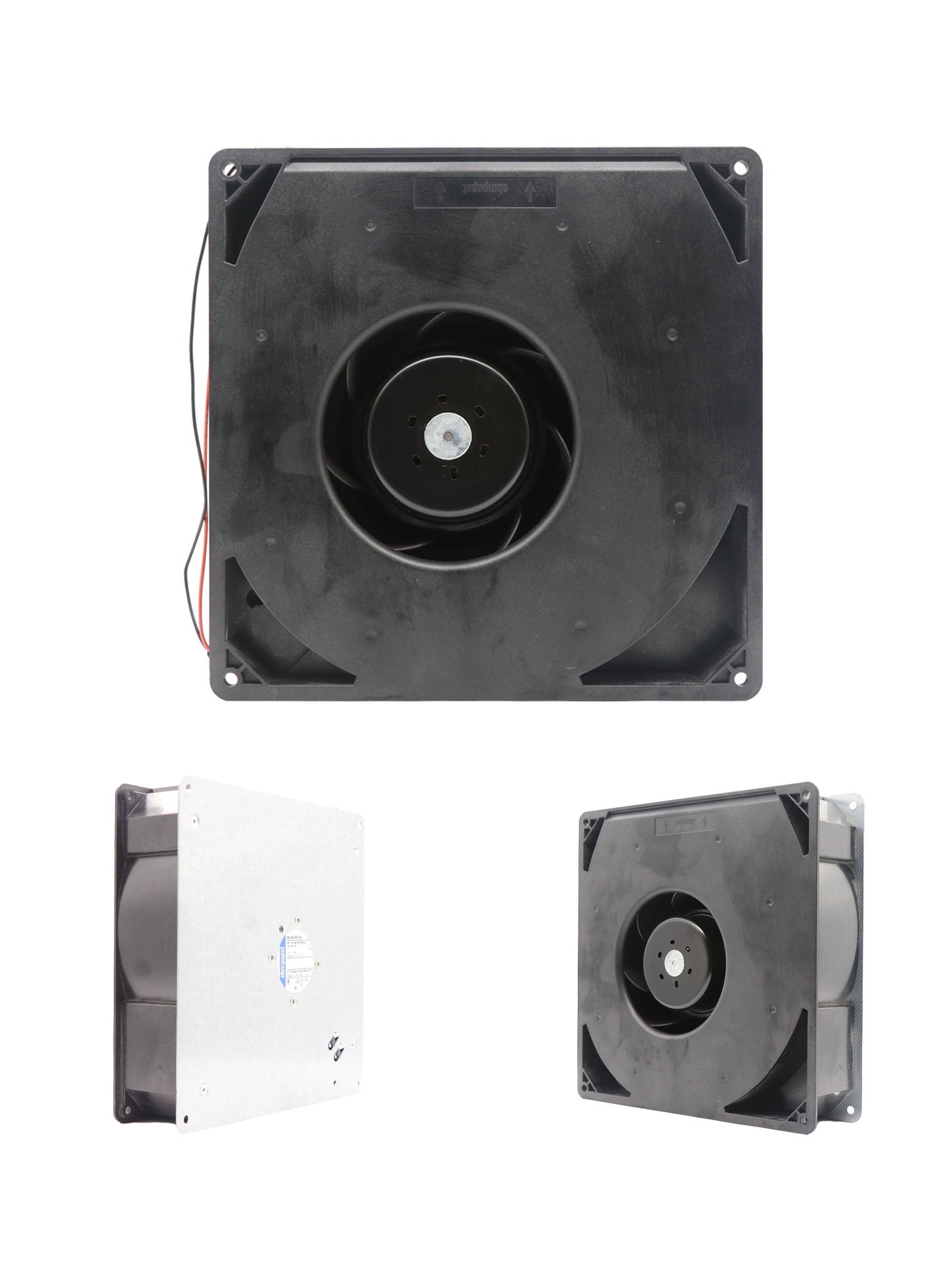

The ebmpapst RG160-28/18N is a robust DC centrifugal fan measuring 220mm x 220mm x 56mm. Operating on a 48V DC power supply, it efficiently draws 0.395A of current for a power consumption of 19W. This fan achieves a speed of 2850 RPM, delivering a strong airflow of 123.0 CFM (209 m³/h) and generating a static pressure of 200 Pa, with a noise output of 66 dB(A). Built with durable ball bearings and featuring a backward-curved impeller, this model is specifically engineered for applications demanding high static pressure and effective air movement within confined spaces, such as industrial control cabinets, power supplies, and various compact electronic enclosures.
RG160-28/18N Fan Parameters
Model: RG160-28/18N
Manufacturer: ebmpapst
Type: DC Centrifugal Fan (Blower, Backward-Curved Impeller)
Dimensions: 220mm x 220mm x 56mm
Rated Voltage: 48 VDC
Operating Voltage Range: 28 VDC – 60 VDC
Rated Current: 0.395A
Power Consumption: 19 W
Speed: 2850 RPM
Airflow: 123.0 CFM (3.44 m³/min or 209 m³/h)
Static Pressure: 0.81 inch H2O (200 Pa)
Noise Level: 66 dB(A)
Bearing Type: Ball Bearing
Frame Material: Fiberglass-reinforced plastic (scroll housing), steel (housing base)
Impeller Material: Fiberglass-reinforced plastic
Termination: 2-Wire Leads
Operating Temperature: -20°C to +70°C
Life Expectancy: 70,000 hours (at 40°C)
Weight: 1.4 kg
Features: Electronically commutated, Backward-curved impeller, Locked rotor protection, Reverse polarity protection, Electronic overload protection
Application: Industrial control cabinets, power supply units, ventilation systems, compact electronic enclosures, air filtration systems
