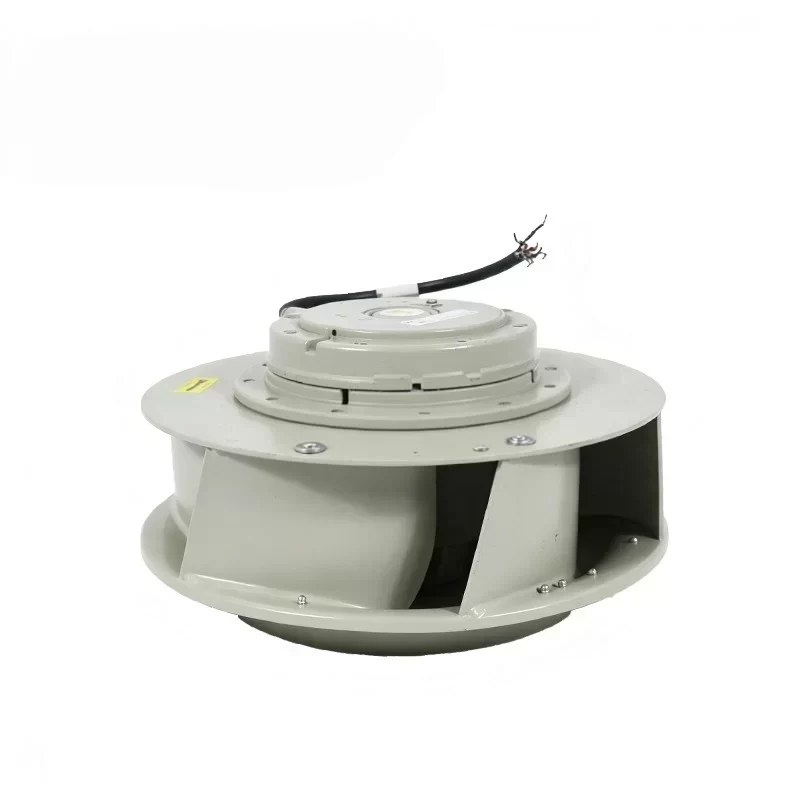

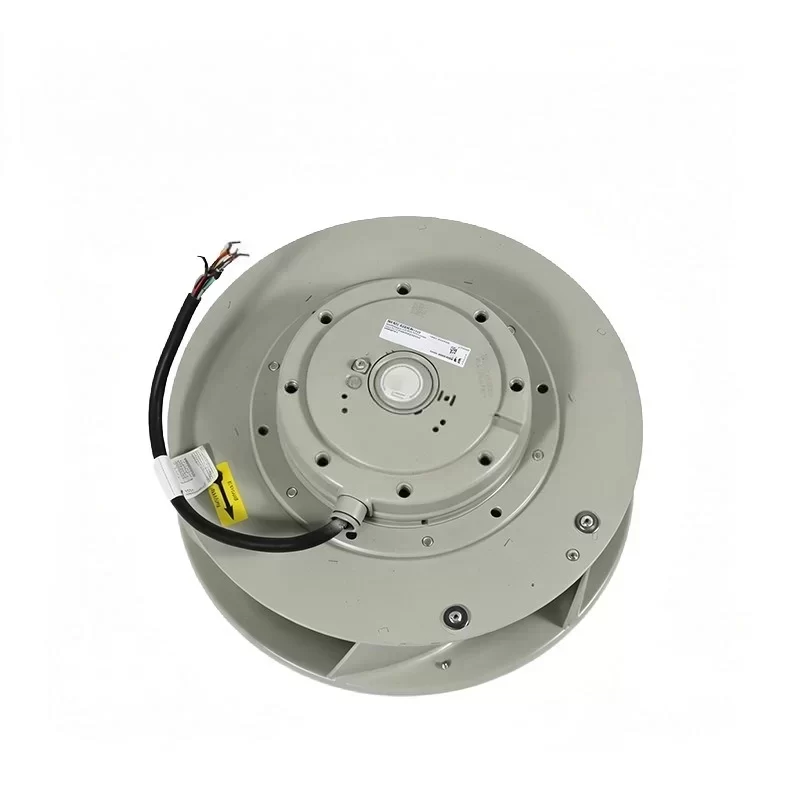

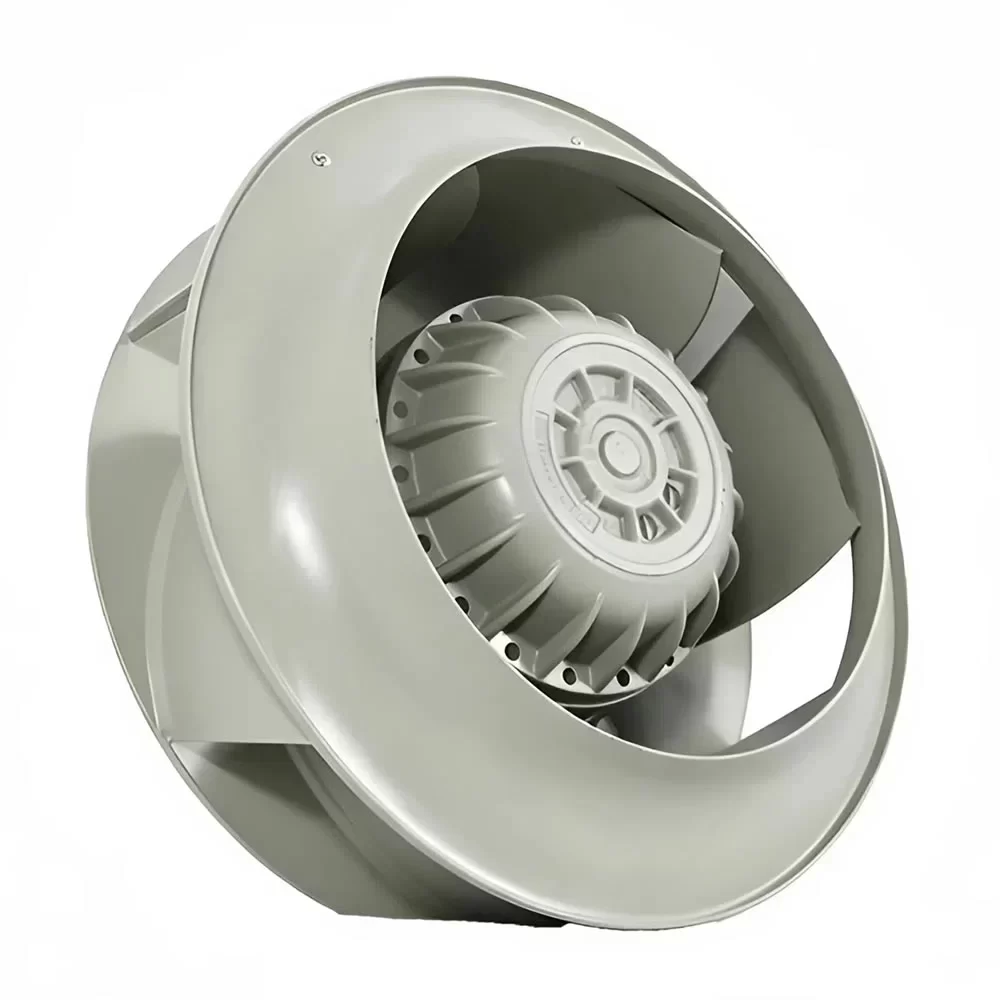

RH35F-QDK.6K.2R Ziehl-Abegg 400VAC 350mm AC Centrifugal Fan

Description

The Ziehl-Abegg RH35F-QDK.6K.2R is a high-performance 400 VAC AC Centrifugal Fan (Motorized Impeller) with an impeller size of 350 mm (13.78 in), engineered to deliver high static pressure and high-volume air movement for demanding HVAC, refrigeration, and industrial ventilation systems. Constructed with a high-efficiency backward-curved motorized impeller, an AC external rotor motor, and precision ball bearings, it has a net weight of 24 kg. Driven by a 3-phase AC motor operating at a nominal voltage of 400 VAC (±10%) at 50 Hz across YY/Y connection modes, it draws a rated current of 3.3 / 0.80 A with a power consumption (P1) of 1.70 / 0.23 kW. Operating at nominal speeds of 2850 / 1460 RPM with a power factor of 0.74, it provides a Max. Air Flow of 3200 / 1650 CFM (5440 / 2805 m³/h / 90.67 / 46.75 m³/min) and a Max. Static Pressure of 115.00 mmH₂O (1127.84 Pa / 4.53 inAq) with a noise level of 74.0 dBA. Designed with a terminal box for electrical connection, IP54 ingress protection, and Class 155 (THCL 155) insulation, it operates reliably across temperatures from -20 to +60 °C and complies with CE, EAC, and RoHS agency approvals.

RH35F-QDK.6K.2R Fan Parameters
Manufacturer: Ziehl-Abegg (Ziehl-Abegg SE)
Model Number: RH35F-QDK.6K.2R
Art. No. / Serial: 122833 / 43176302
Type: AC Centrifugal Fan
Country of Origin: Germany
Nominal Voltage: 400 VAC
Frequency: 50 Hz
Connection Mode: YY / Y
Rated Current: 3.3 / 0.80 A
Power Consumption: 1.70 / 0.23 kW (1700 / 230 W)
Power Factor (COS $varphi$): 0.74
Motor Type: AC External Rotor Motor
Electrical Connection: Terminal Box
IP Rating: IP54
Speed: 2850 / 1460 RPM
Max. Air Flow: 3200 / 1650 CFM (5440 / 2805 m³/h / 90.67 / 46.75 m³/min)
Max. Static Pressure: 115.00 mmH₂O (1127.84 Pa / 4.53 inAq)
Noise Level: 74.0 dBA
Impeller Size: 350 mm (13.78 in)
Weight: 24 kg
Impeller Material: Composite / Sheet Steel
Bearing Type: Ball Bearing
Insulation Class: Class 155 (THCL 155)
Operating Temperature: -20 to +60 °C
Agency Approvals: CE, EAC, RoHS

Application
The Ziehl-Abegg RH35F-QDK.6K.2R is deployed in heavy-duty air handling units (AHUs), industrial ventilation systems, commercial refrigeration equipment, cleanroom filtration fan filter units (FFUs), data center cooling units, and high-pressure heat recovery exchangers requiring robust backward-curved motorized impeller performance.
