Description

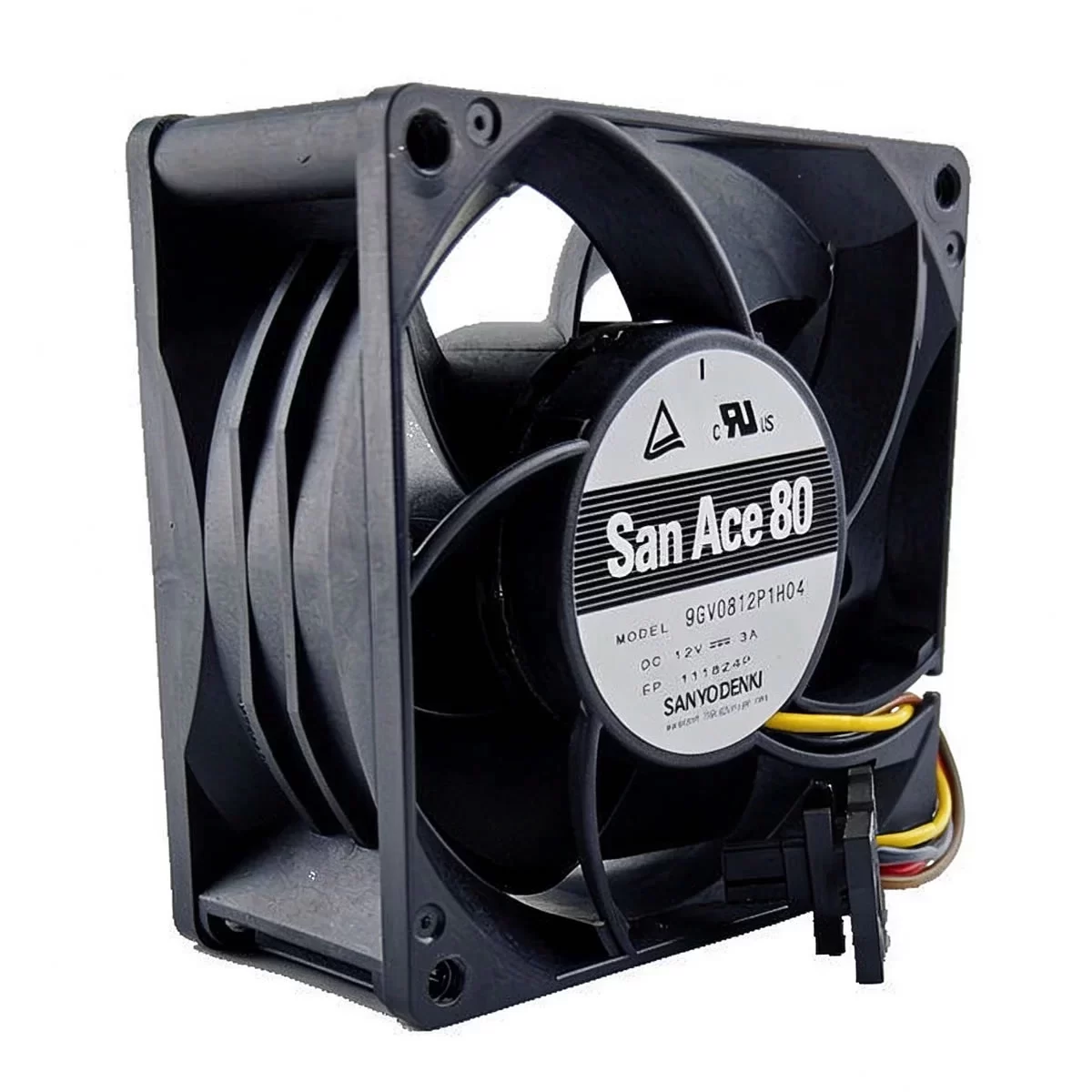

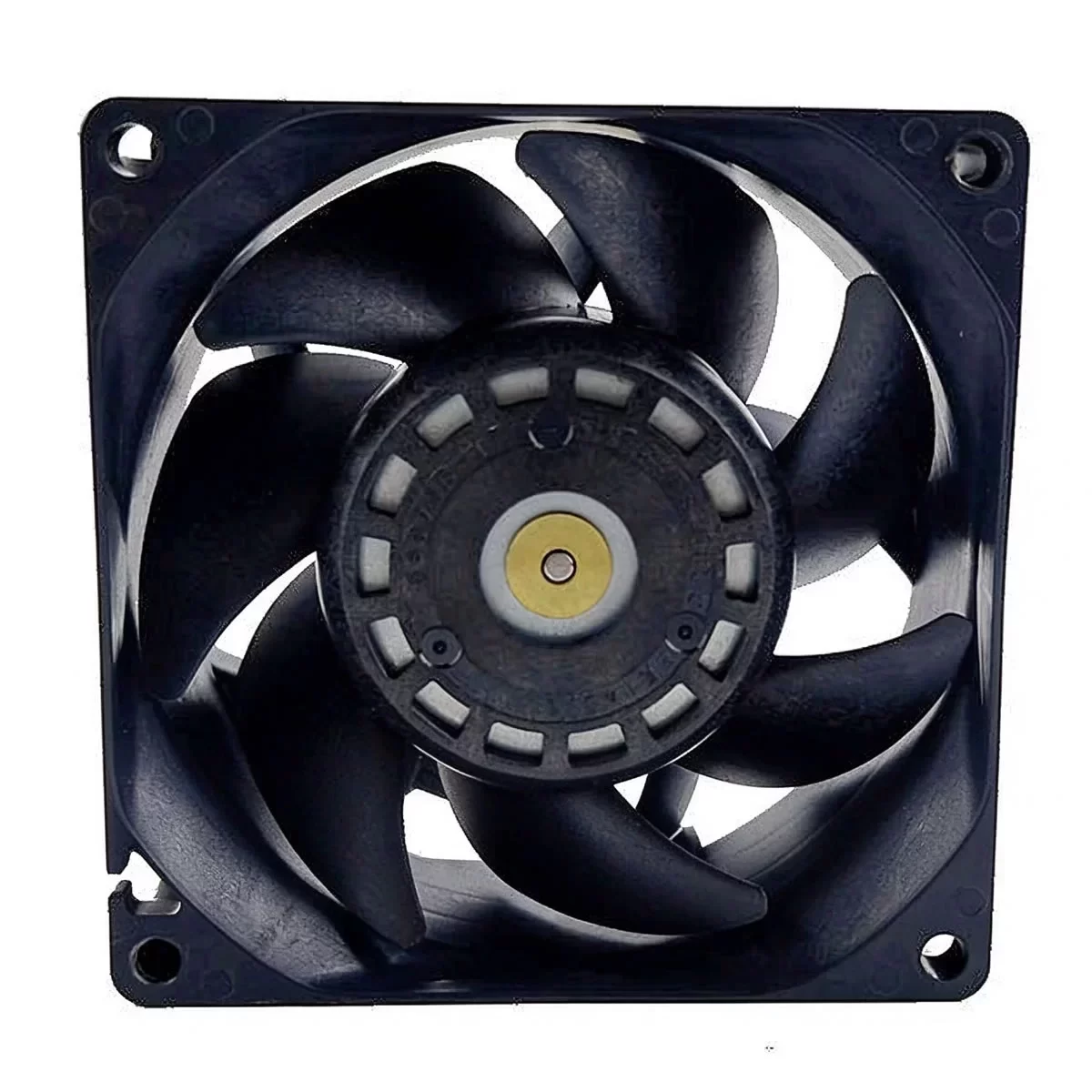

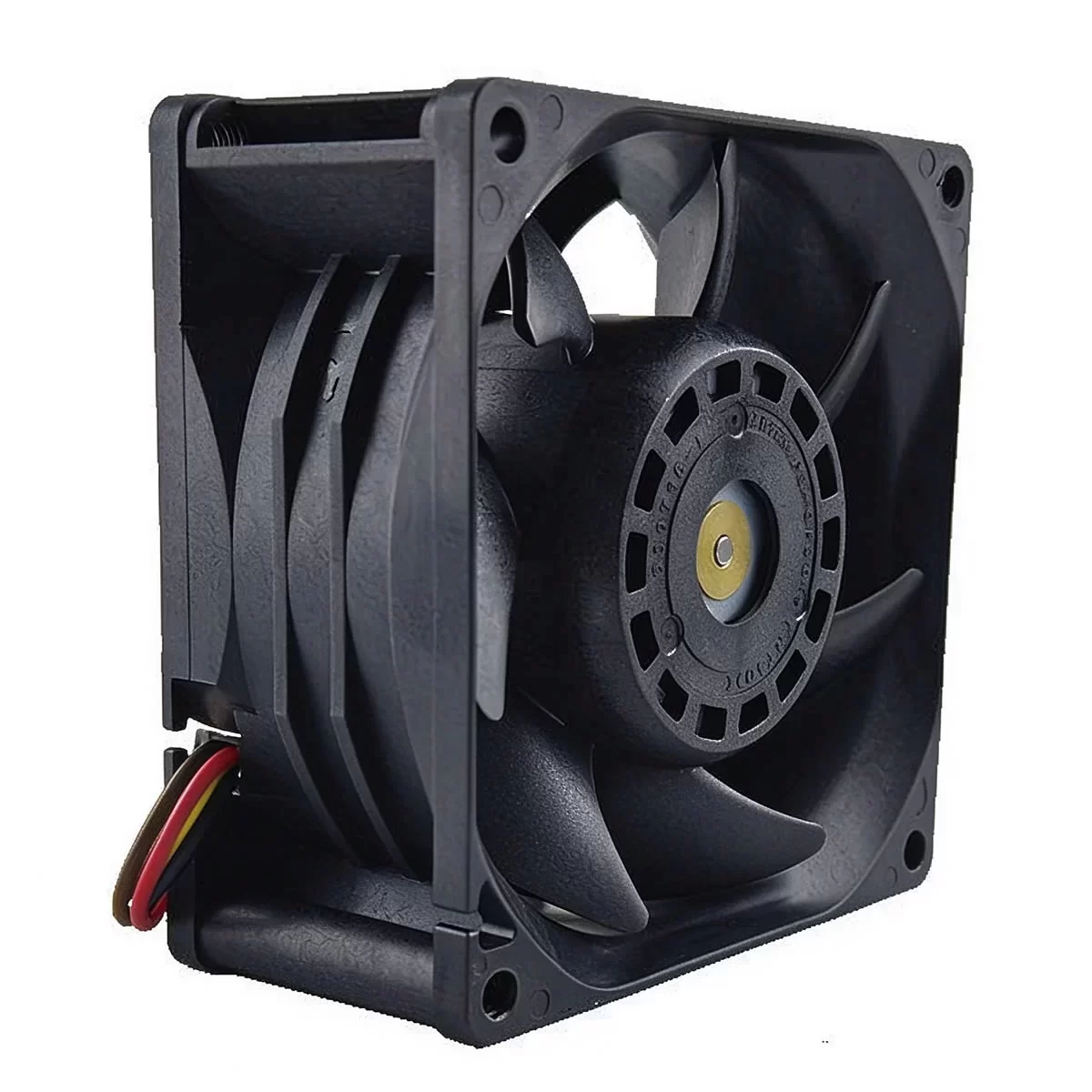

The Sanyo Denki San Ace 80 9GV0812P1H04 is a high-performance 12 VDC DC Axial Fan with dimensions of 80 x 80 x 38 mm, engineered to deliver extreme static pressure and efficient active thermal management for high-density servers, telecommunications equipment, and industrial electronics. Constructed with a durable plastic housing (UL94V-0), a plastic impeller (UL94V-0), and precision dual ball bearings, it has a net weight of 220 g. Driven by an advanced brushless DC motor operating across a voltage range of 10.8 – 13.2 VDC, it draws a rated current of 3.00 A with a power consumption of 36.00 W. Operating at an ultra-high speed of 10500 RPM, it provides a Max. Air Flow of 102.50 CFM (174.15 m³/h / 2.90 m³/min) and a Max. Static Pressure of 52.00 mmH₂O (509.95 Pa / 2.05 inAq) with a noise level of 68.0 dBA. Designed with 4 wire lead connections terminated with a 4-pin connector supporting PWM speed control and FG tachometer signal output, it features locked rotor protection, reverse polarity protection, and complies with UL, TÜV, CE, and RoHS agency approvals.
9GV0812P1H04 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GV0812P1H04
Type: DC Axial Fan
Country of Origin: Philippines
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 3.00 A
Power Consumption: 36.00 W
Motor Type: Brushless DC Motor
Electrical Connection: 4 Wire Leads with Connector
Control Interface & Signal: PWM Speed Control, Tachometer (FG) Speed Sensor Output
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Speed: 10500 RPM
Max. Air Flow: 102.50 CFM (174.15 m³/h / 2.90 m³/min)
Max. Static Pressure: 52.00 mmH₂O (509.95 Pa / 2.05 inAq)
Noise Level: 68.0 dBA
Dimensions: 80 x 80 x 38 mm (3.15 x 3.15 x 1.50 in)
Weight: 220 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Operating Temperature: -20 to +70 °C
Agency Approvals: UL, TÜV, CE, RoHS
Application
The Sanyo Denki 9GV0812P1H04 is deployed in 1U/2U rackmount servers, high-density network switches, telecom power rectifiers, medical diagnostic instruments, industrial frequency inverters, and high-impedance electronic enclosures requiring intensive forced-air cooling.
