Description

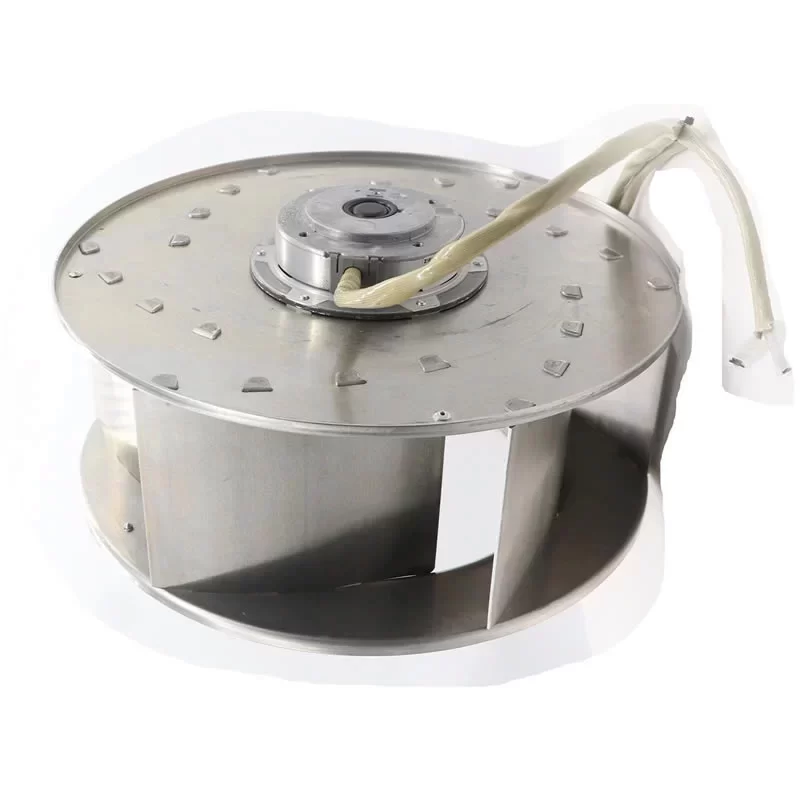

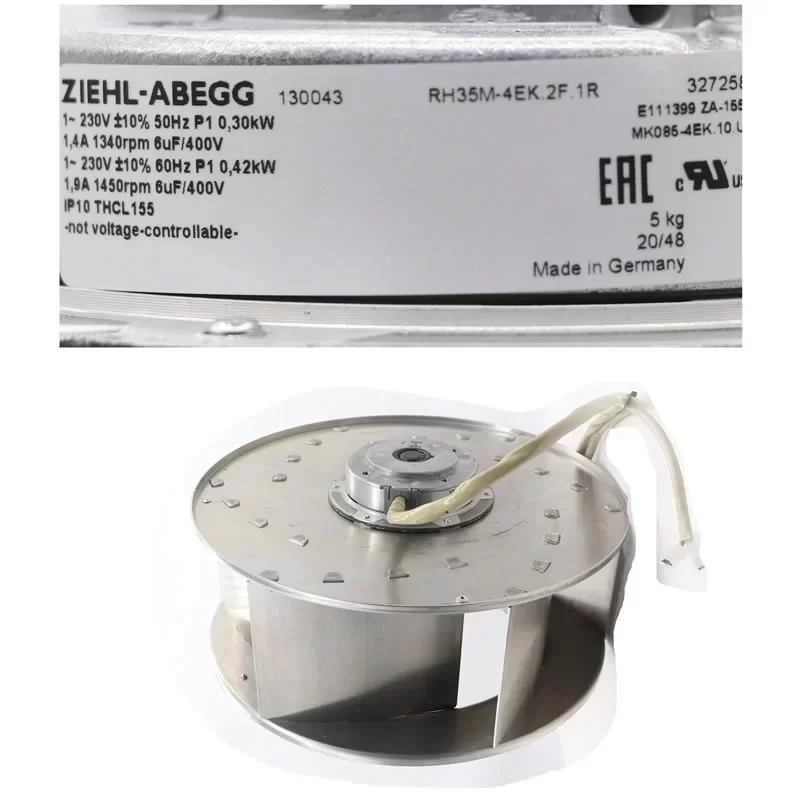

The ZIEHL-ABEGG RH35M-4EK.2F.1R (Article Number: 130043) is a high-performance single-phase AC centrifugal fan featuring a 350 mm motorized impeller with backward-curved blades. Engineered for heavy-duty industrial air movement, ventilation systems, and specialized electronic cooling, this robust unit operates on a multi-frequency 1~ nominal voltage of 230 VAC (±10% tolerance) at 50 / 60 Hz. Based on exact label specifications, it delivers multi-frequency performance: at 50 Hz, it draws a Max. Current of 1.4 A with a Max. Power Consumption (P1) of 0.30 kW (300 W) at a rated speed of 1,340 RPM; at 60 Hz, it draws 1.9 A with a power consumption of 0.42 kW (420 W) at a rated speed of 1,450 RPM. Both operational frequencies utilize a 6 µF / 400 V operating capacitor. Constructed with a net Weight of 5 kg, it features THCL155 winding insulation, IP10 ingress protection, ball-bearing construction, and a non-voltage-controllable design (-not voltage-controllable-), holding EAC safety certification and E111399 recognition.
RH35M-4EK.2F.1R Fan Parameters
Manufacturer: ZIEHL-ABEGG
Article Number: 130043
Model Number: RH35M-4EK.2F.1R
Motor Designation: MK085-4E
Type: AC Centrifugal Fan / Motorized Impeller
Impeller Size: 350 mm
Weight: 5 kg
Bearing Type: Ball Bearing
Phase: 1~
Nominal Voltage: 230 VAC
Voltage Tolerance: ±10%
Frequency: 50 / 60 Hz
Max. Power Consumption (P1): 0.30 / 0.42 kW (300 / 420 W)
Max. Current Draw: 1.4 / 1.9 A
Capacitor: 6 µF / 400 V
Thermal Class: THCL155
Control Characteristic: Not Voltage-Controllable
Rated Speed: 1,340 / 1,450 RPM (min⁻¹)
Degree of Protection: IP10
Safety Approvals: EAC, E111399
Application
The ZIEHL-ABEGG RH35M-4EK.2F.1R is deployed in industrial ventilation systems, commercial air handling equipment, variable frequency drive cooling cabinets, cleanroom technology, and high-density electronic enclosures requiring reliable single-phase centrifugal exhaust and forced-air distribution.
