Description

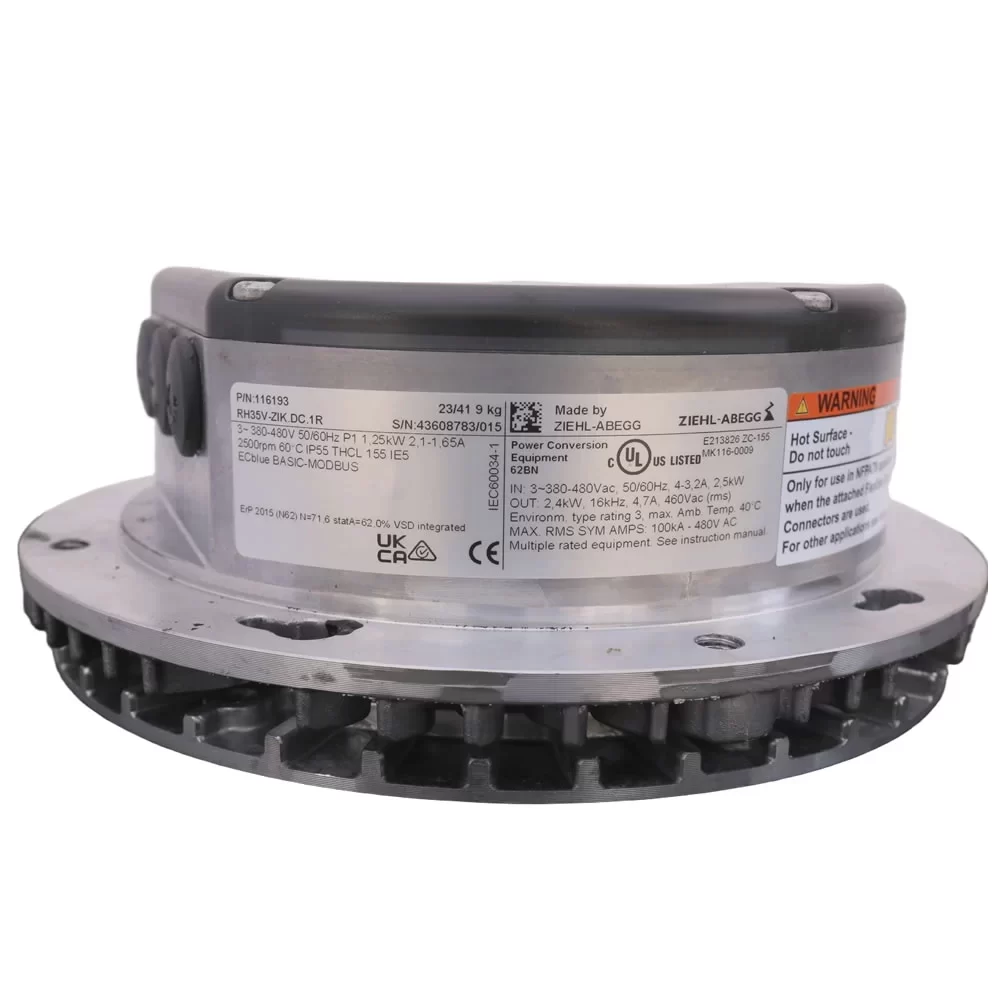

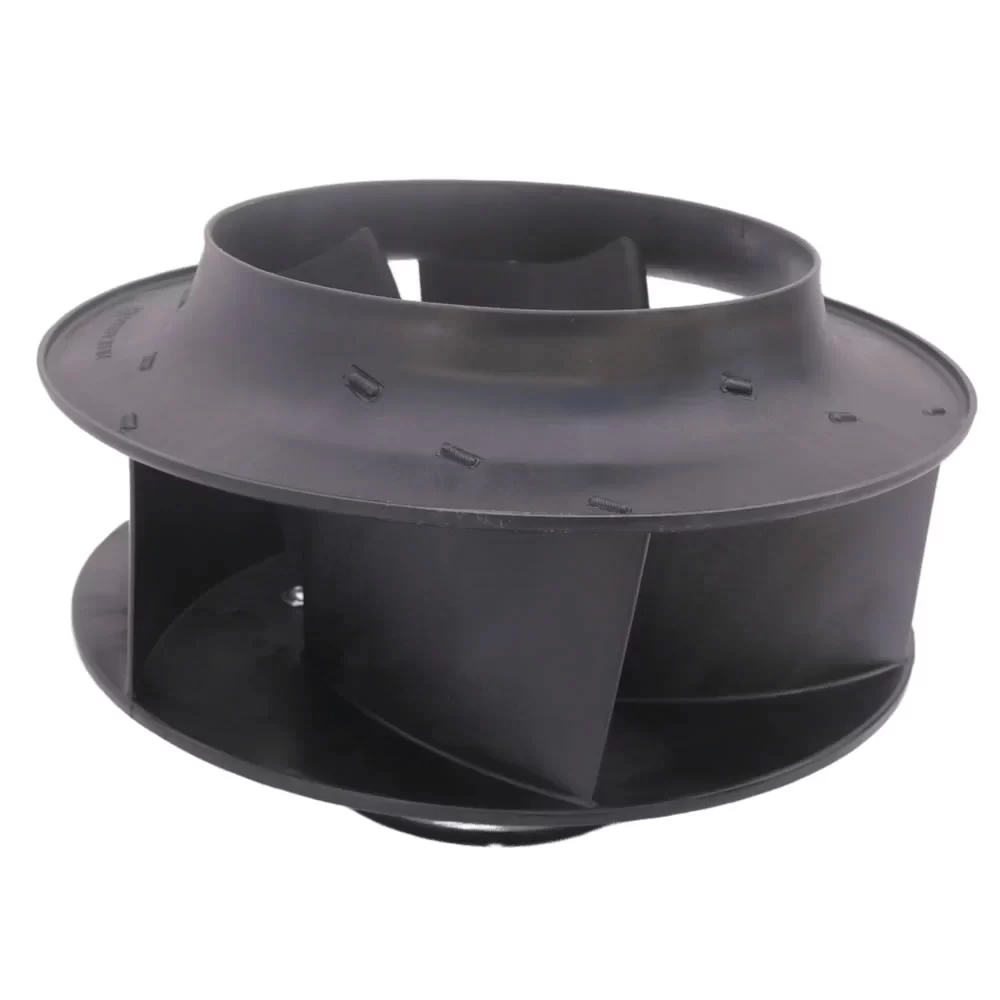

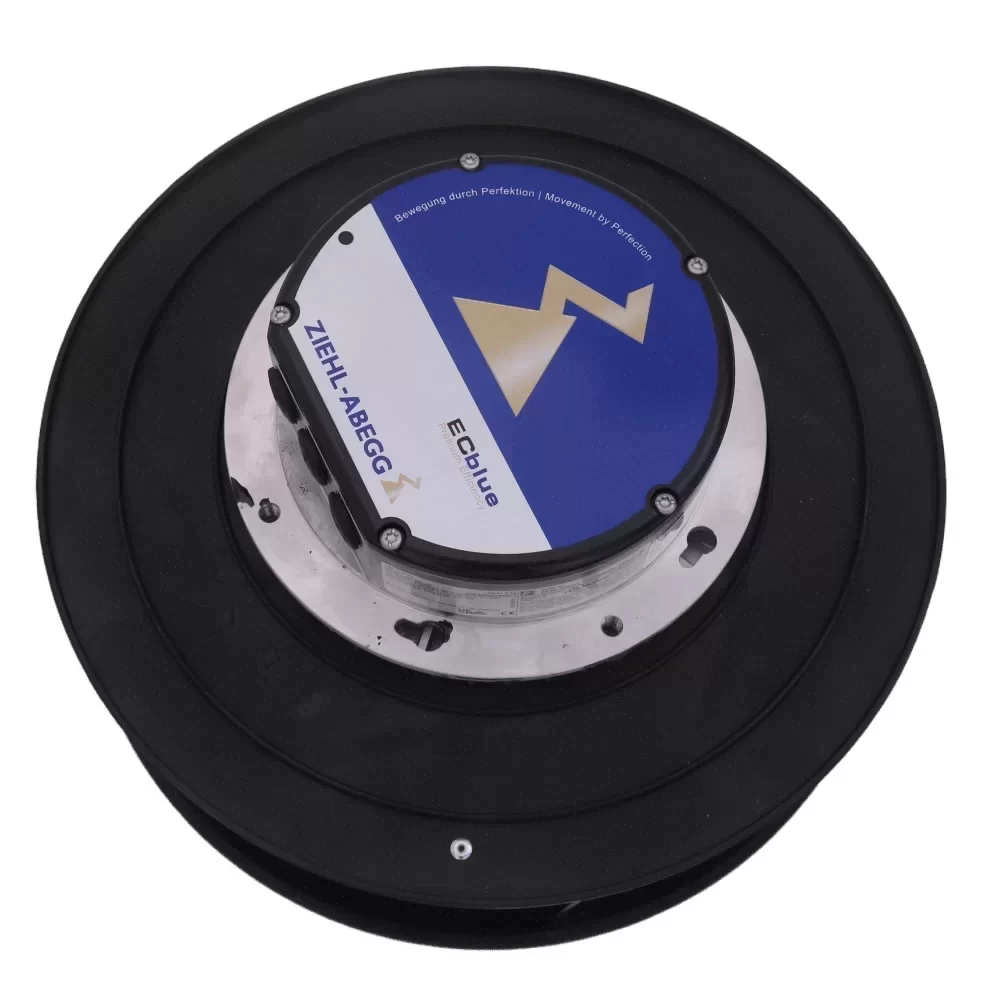

The ZIEHL-ABEGG RH35V-ZIK.DC.1R (P/N: 116193) is a high-performance 400 VAC 350 mm EC Centrifugal Fan featuring a backward-curved sheet aluminum impeller and integrated ECblue BASIC-MODBUS drive electronics. Constructed with a corrosion-resistant aluminum impeller wheel, die-cast aluminum motor housing, and long-life dual ball bearings, it has a total weight of 9.0 kg. Driven by an IE5 ultra-premium efficiency 3-phase EC external rotor motor operating across a voltage range of 380 – 480 VAC at 50 / 60 Hz, it draws a rated current of 2.1 – 1.65 A with an input power consumption (P1) of 1250 W (1.25 kW). Operating at a nominal speed of 2500 RPM, it produces a max. air flow of 2631.0 CFM (4470.0 m³/h / 74.50 m³/min) and a max. static pressure of 94.83 mmH₂O (930.0 Pa / 3.73 inH₂O). Engineered for an operating temperature range of -20 to +60 °C, it features IP55 degree of protection, Class 155 (THCL 155 / Class F) insulation, IEC 60034-1 compliance, RS-485 MODBUS-RTU communication, integrated ErP 2015 efficiency drive (statA=62.0%, N=71.6), and complies with CE, cULus Listed, and UKCA agency approvals.
RH35V-ZIK.DC.1R Fan Parameters
Manufacturer: ZIEHL-ABEGG
Model Number: RH35V-ZIK.DC.1R
Part Number: 116193
Type: EC Centrifugal Fan (Motorized Impeller)
Impeller Size: 350 mm
Weight: 9.0 kg
Impeller Material: Sheet Aluminum
Motor Housing Material: Die-Cast Aluminum
Bearing Type: Dual Ball Bearing
Motor Type: 3-Phase EC External Rotor Motor
Motor Efficiency Class: IE5 (Ultra-Premium Efficiency)
Controller Type: ECblue BASIC-MODBUS
Insulation Class: THCL 155 (Class F)
Degree of Protection: IP55
Standard Conformity: IEC 60034-1
Features: RS-485 MODBUS-RTU Communication, Integrated VSD, Active PFC, Soft Start, Thermal Overload Protection
Nominal Voltage: 400 VAC (3-Phase)
Operating Voltage Range: 380 – 480 VAC
Frequency: 50 / 60 Hz
Rated Current: 2.1 – 1.65 A
Power Consumption (P1): 1250 W (1.25 kW)
Speed: 2500 RPM
Max. Air Flow: 2631.0 CFM (4470.0 m³/h / 74.50 m³/min)
Max. Static Pressure: 94.83 mmH₂O (930.0 Pa / 3.73 inH₂O)
Operating Temperature: -20 to +60 °C
ErP Overall Efficiency (N): 71.6
ErP Static Efficiency (statA): 62.0 %
Agency Approvals: CE, cULus Listed, UKCA
Application
The ZIEHL-ABEGG RH35V-ZIK.DC.1R is deployed in Air Handling Units (AHU), precision air conditioning for data centers, cleanroom ventilation systems, central HVAC units, heat recovery ventilation, and high-power industrial frequency converter cabinet cooling requiring intelligent EC speed regulation.
