Description

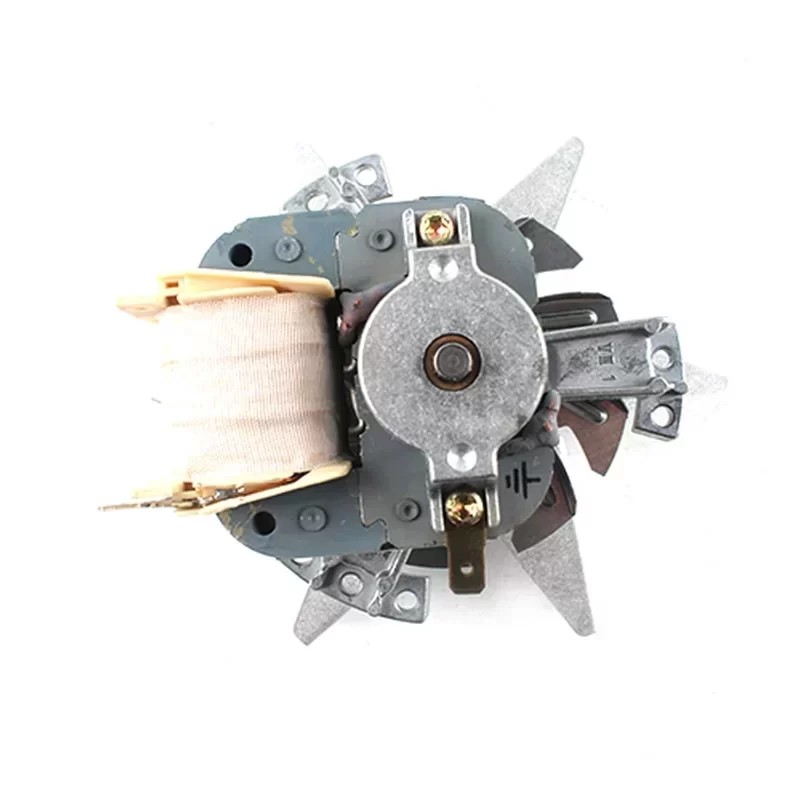

The ebmpapst RRL152/0020 B9 -3025LH/4 adh is a high-performance 230VAC 152 x 101 mm AC centrifugal blower, engineered for reliable thermal management in industrial heating applications. Featuring a robust galvanized sheet steel construction and a durable ball bearing system, this efficient hot air blower delivers a maximum airflow of 105.00 CFM (178.4 m³/h / 2.97 m³/min) and a maximum static pressure of 19.37 mmH₂O (190.00 Pa / 0.76 inH₂O) at a rated speed of 1,800 RPM. Operating on a voltage range of 200 – 240 VAC (50/60 Hz), it has a power consumption of 37 W and includes lead wire connections. Built for continuous high-temperature air circulation, it weighs 2.00 kg, operates at 46 dBA, offers a life expectancy of 50,000 hours, and holds safety certifications including CE and RoHS.

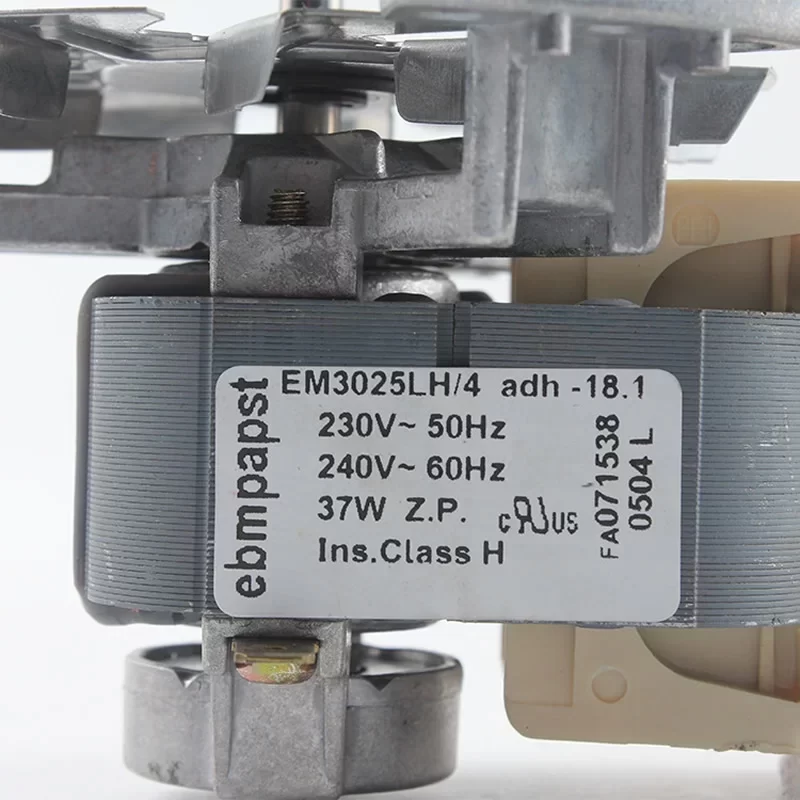

RRL152/0020 B9 -3025LH/4 adh Fan Parameters
Manufacturer: ebmpapst
Model Number: RRL152/0020 B9 -3025LH/4 adh
Type: AC Centrifugal Blower
Dimensions: 152 x 101 mm
Impeller Size: 152 mm
Weight: 2.00 kg
Frame Material: Galvanized sheet steel
Impeller Material: Galvanized sheet steel
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires
Nominal Voltage: 230 VAC
Operating Voltage Range: 200 – 240 VAC (50/60 Hz)
Max. Power Consumption: 37 W
Rated Speed: 1,800 RPM (min⁻¹)
Max. Air Flow: 105.00 CFM (178.4 m³/h / 2.97 m³/min)
Max. Static Pressure: 19.37 mmH₂O (190.00 Pa / 0.76 inH₂O)
Noise Level: 46 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 50,000 hours
Safety Approvals: CE, RoHS
Application
The ebmpapst RRL152/0020 B9 -3025LH/4 adh is exclusively installed within baking ovens, drying cabinets, and advanced industrial thermal process equipment to provide consistent hot air circulation and maintain uniform chamber temperatures.
