Description

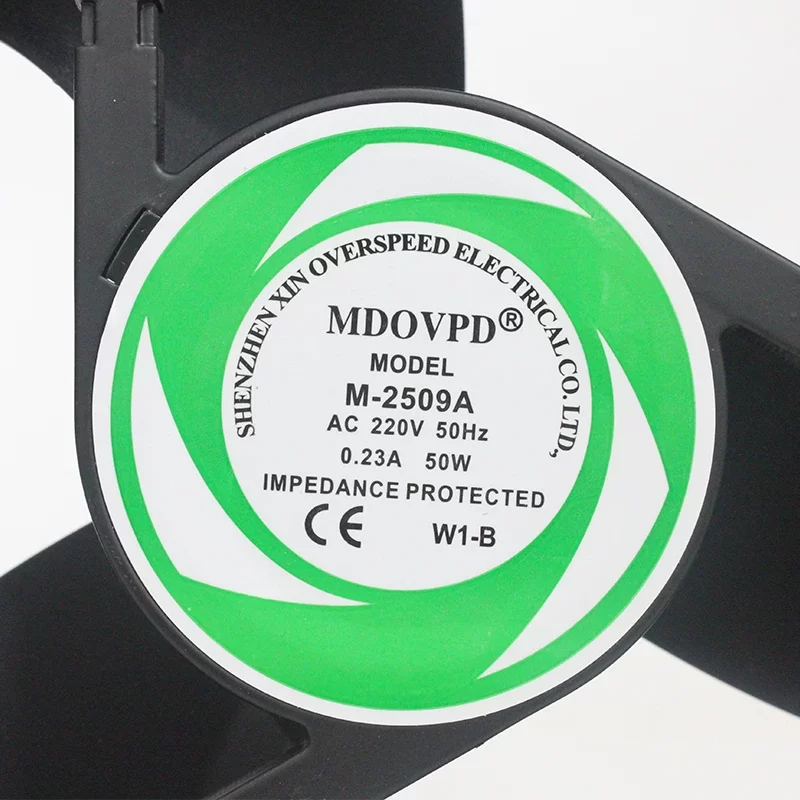

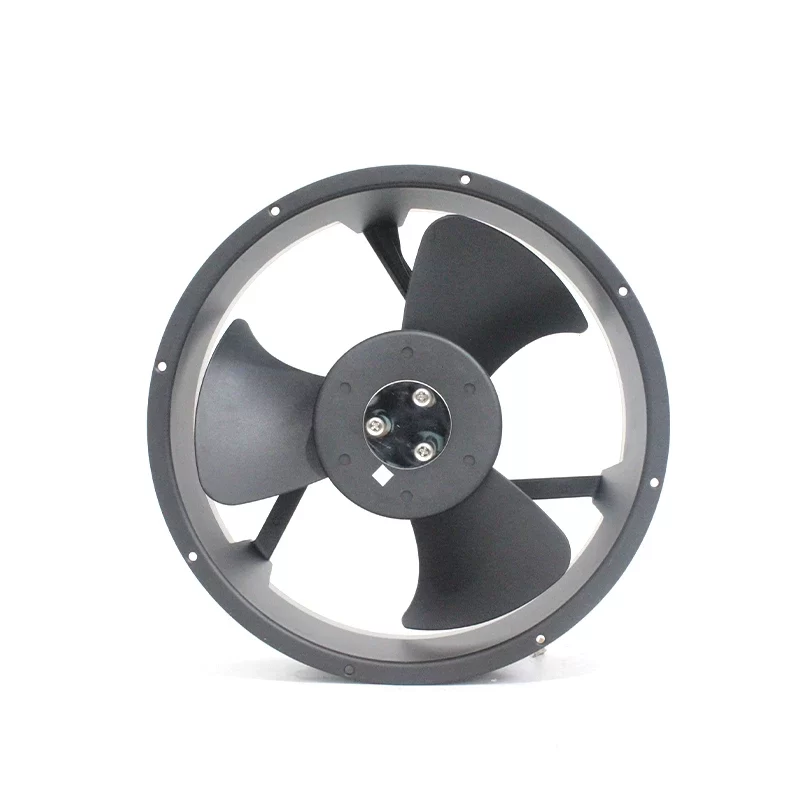

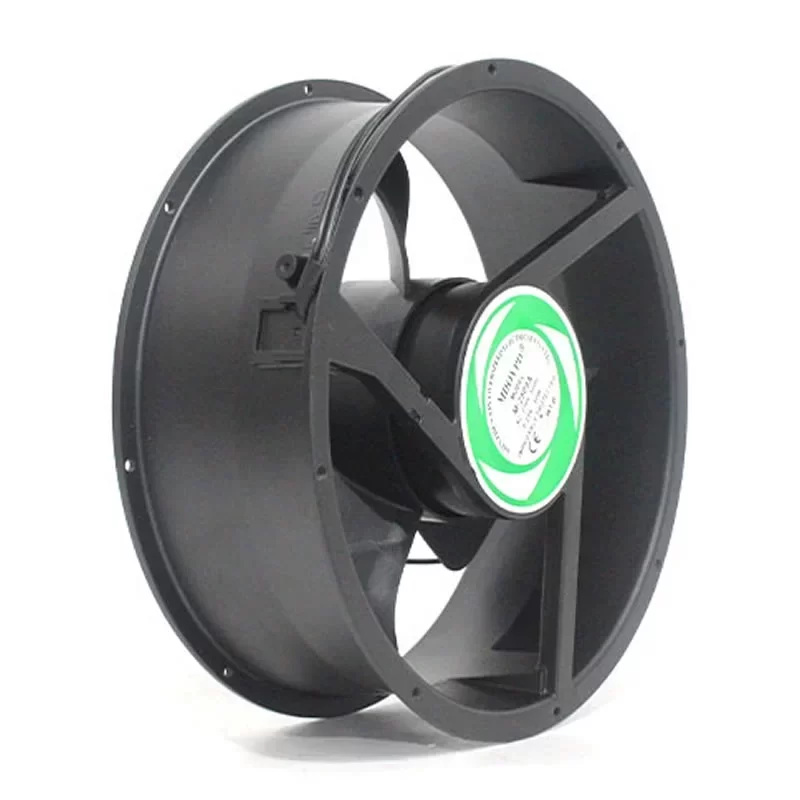

The MDOVPD M-2509A MDOVPD is a high-temperature 220 VAC AC axial fan with dimensions of Ø 250 x 89 mm. Featuring dual high-temperature ball bearings, a die-cast metal aluminum frame, and a 3-blade flame-retardant plastic impeller, this industrial cooling fan delivers a Working Air Flow of 650.00 CFM (1104.4 m³/h / 18.41 m³/min) and a Static Pressure Increase of 12.50 mmH₂O (122.60 Pa / 0.49 inH₂O) at a rated speed of 2,650 RPM. Operating on a nominal voltage of 220 VAC (50 Hz) within an operating voltage range of 180 – 240 VAC, it features a Max. Current Draw of 0.23 A with a Max. Power Consumption of 50 W and includes 2-wire lead connections. Built for continuous operation, it has a Weight of 2.10 kg, operates at 66 dBA within a temperature range of -20 to +80 °C, offers a life expectancy of 50,000 hours, and holds safety certifications including CE and RoHS.
M-2509A MDOVPD Fan Parameters
Manufacturer: MDOVPD
Model Number: M-2509A MDOVPD
Type: AC Axial Fan
Nominal Voltage: 220 VAC
Operating Voltage Range: 180 – 240 VAC (50 Hz)
Dimensions: Ø 250 x 89 mm
Impeller Size: 250 mm
Number of Blades: 3
Weight: 2.10 kg
Frame Material: Metal (Aluminum Alloy)
Impeller Material: Plastic (High-Temperature Resistant PBT UL 94V-0)
Bearing Type: Ball Bearing (High-Temperature Resistant)
Power Connection Type: Lead Wires (2 Wires)
Rated Speed: 2,650 RPM (min⁻¹)
Max. Current Draw: 0.23 A
Max. Power Consumption: 50 W
Max. Air Flow: 650.00 CFM (1104.4 m³/h / 18.41 m³/min)
Max. Static Pressure: 12.50 mmH₂O (122.60 Pa / 0.49 inH₂O)
Noise Level: 66 dBA
Operating Temperature: -20 – +80 °C
Storage Temperature: -40 – +85 °C
Life Expectancy: 50,000 hours
Safety Approvals: CE, RoHS
Application
The MDOVPD M-2509A MDOVPD is deployed in high-temperature industrial environments, electrical control cabinets, power distribution units, frequency converters, industrial ovens, drying equipment, and heavy-duty HVAC ventilation systems.
