Description

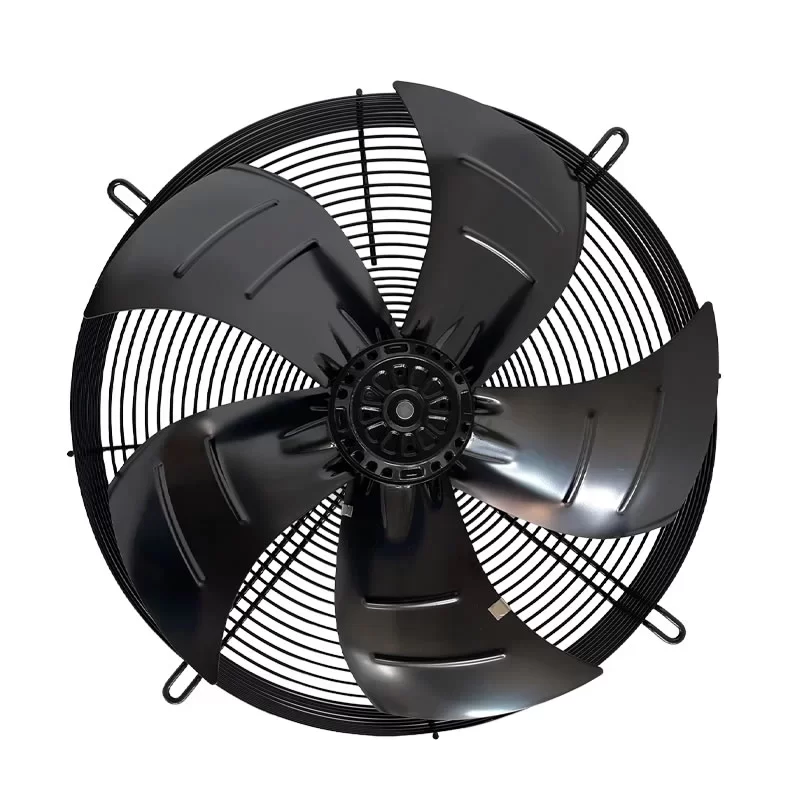

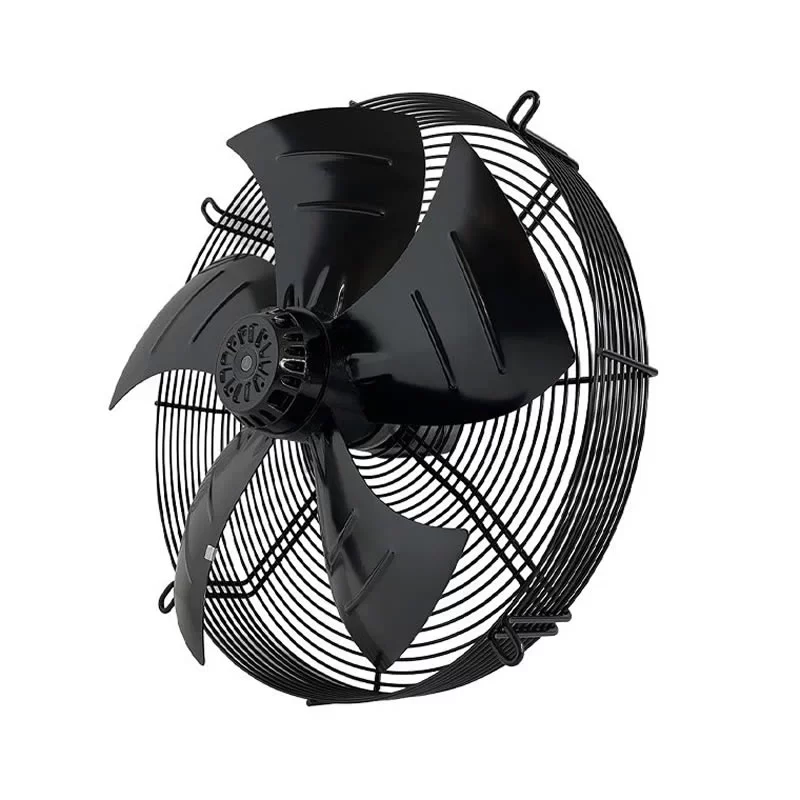

The ebmpapst S4E450-AP01-20/F01 is a high-performance 230VAC single-phase AC axial fan featuring an impeller size of 450 mm and external dimensions of 478 x 478 x 204 mm. Powered by an M4E074-GA motor, this sickle-shaped blade axial fan (S series) with a short nozzle guard grille delivers high-volume airflow and reliable thermal management. Operating at a rated speed of 1,400 / 1,600 RPM under 50 / 60 Hz, it draws a maximum current of 1.1 / 1.55 A with a power consumption of 245 / 355 W and utilizes an integrated 8 µF / 400 VDB motor capacitor (S0 safety class). Built with black-painted sheet steel blades, a phosphated and black-plastic coated steel guard grille, precision ball bearings with low-temperature lubricant, and an IP44 protection rating, it weighs 7.3 kg and supports continuous S1 operation across ambient temperatures ranging from -40 to +40 °C.
S4E450-AP01-20/F01 Fan Parameters
Manufacturer: ebmpapst
Model Number: S4E450-AP01-20/F01
Motor Model: M4E074-GA
Type: AC Axial Fan (Sickle-Shaped Blades, S Series, with Guard Grille for Short Nozzle)
Size: 450 mm
Dimensions: 478 x 478 x 204 mm
Weight: 7.3 kg
Blade Material: Sheet steel, painted black
Guard Grille Material: Steel, phosphated and coated with black plastic
Terminal Box Material: ABS plastic, black
Number of Blades: 5
Surface of Rotor: Painted black
Airflow Direction: “V”
Direction of Rotation: Counterclockwise, viewed toward rotor
Bearing Type: Ball bearing with low-temperature lubricant
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz / 230V 60Hz)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 1.1 / 1.55 A
Starting Current: 2.8 / 2.6 A
Max. Power Consumption: 245 / 355 W
Motor Capacitor: 8 µF / 400 VDB
Capacitor Standard: S0
Rated Speed: 1,400 / 1,600 RPM (min⁻¹)
Max. Back Pressure: 85 / 35 Pa (0.34 / 0.14 in. wg)
Ingress Protection: IP44
Insulation Class: Class B
Environmental Protection Class: H1
Operating Mode: S1 (Continuous operation)
Operating Temperature: -40 – +40 °C (at 50 Hz), -40 – 0 °C (at 60 Hz)
Storage / Transport Temperature: -40 – +70 °C
Touch Current: < 0.75 mA (per IEC 60990)

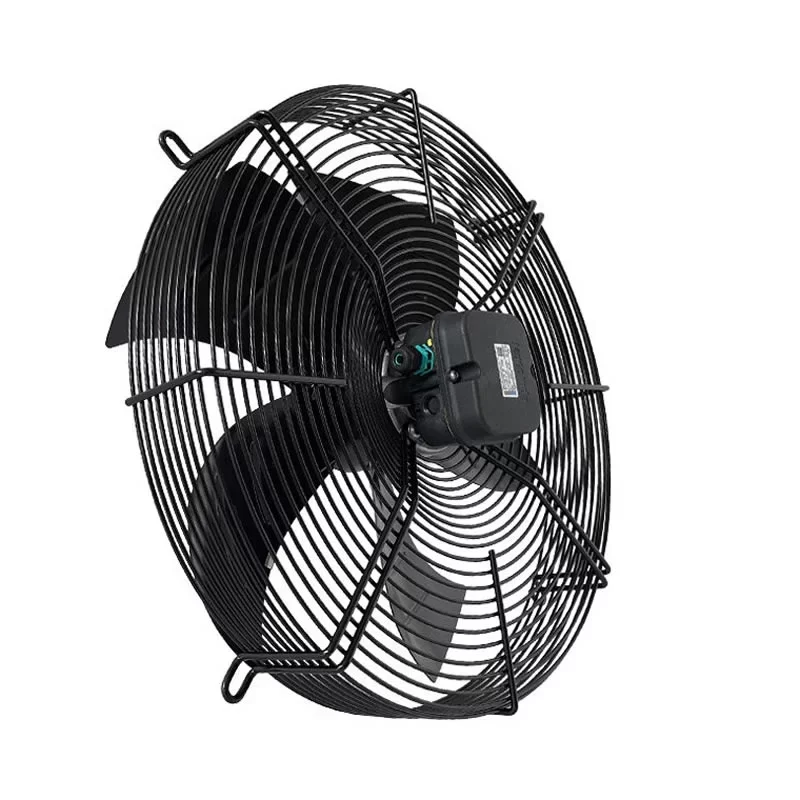

Electrical Hookup: Terminal box; Via terminal box, capacitor integrated and connected
Motor Protection: Thermal overload protector (TOP) internally connected
Cable Exit: Variable
Protection Class: Class I (with customer connection of protective earth)
Condensation Drainage Holes: On rotor side
Safety Approvals: EN 60335-1, CE, EAC
Application
The ebmpapst S4E450-AP01-20/F01 is deployed in industrial ventilation systems, commercial air conditioning units, heat exchangers, refrigeration equipment, and agricultural ventilation systems.
