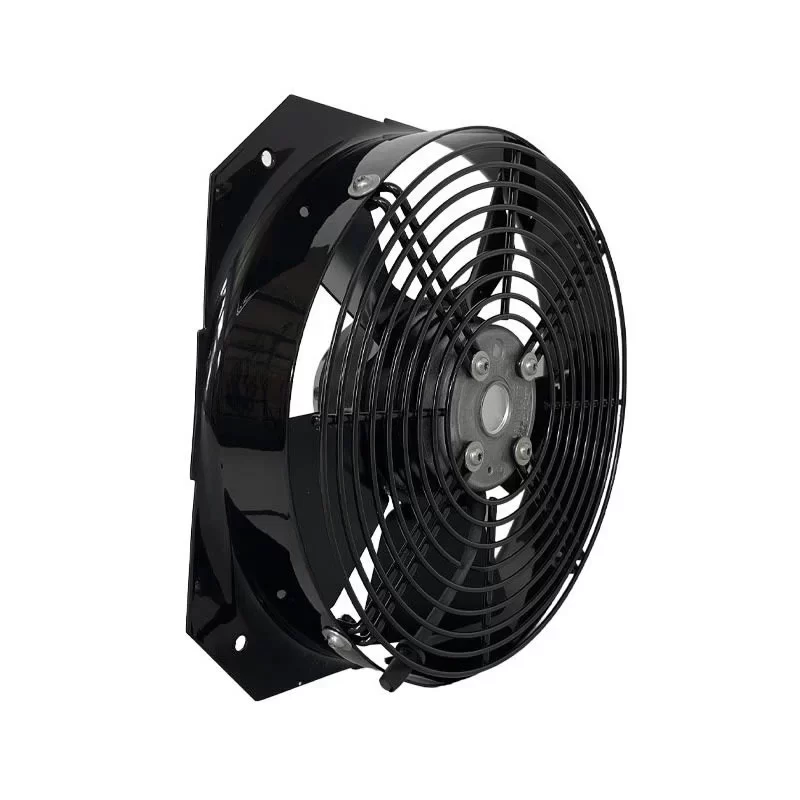

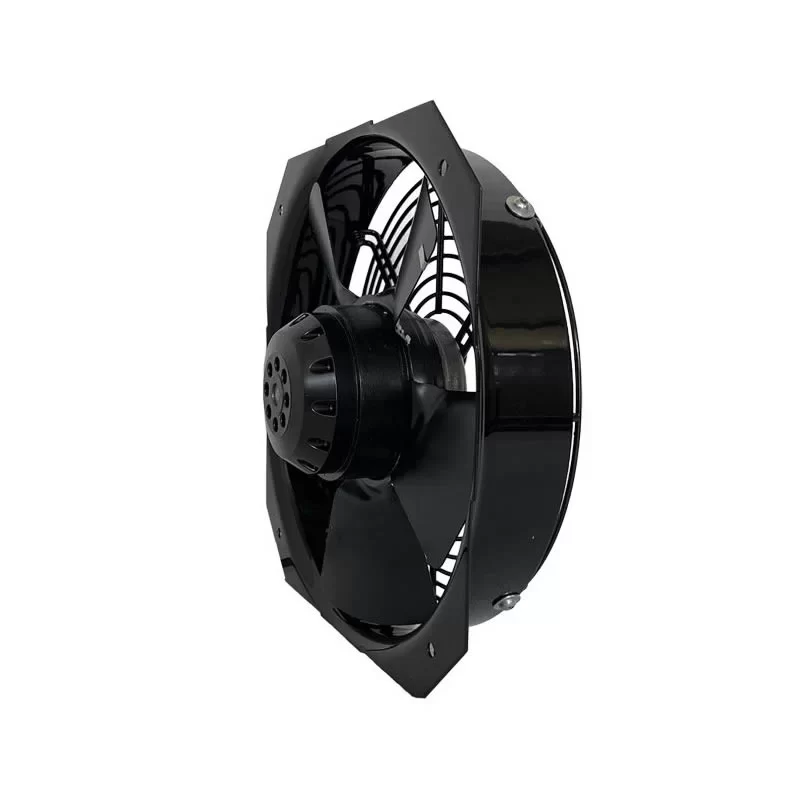

W2E250-EC01-06 ebmpapst 230VAC 250mm AC Axial Fan

Description

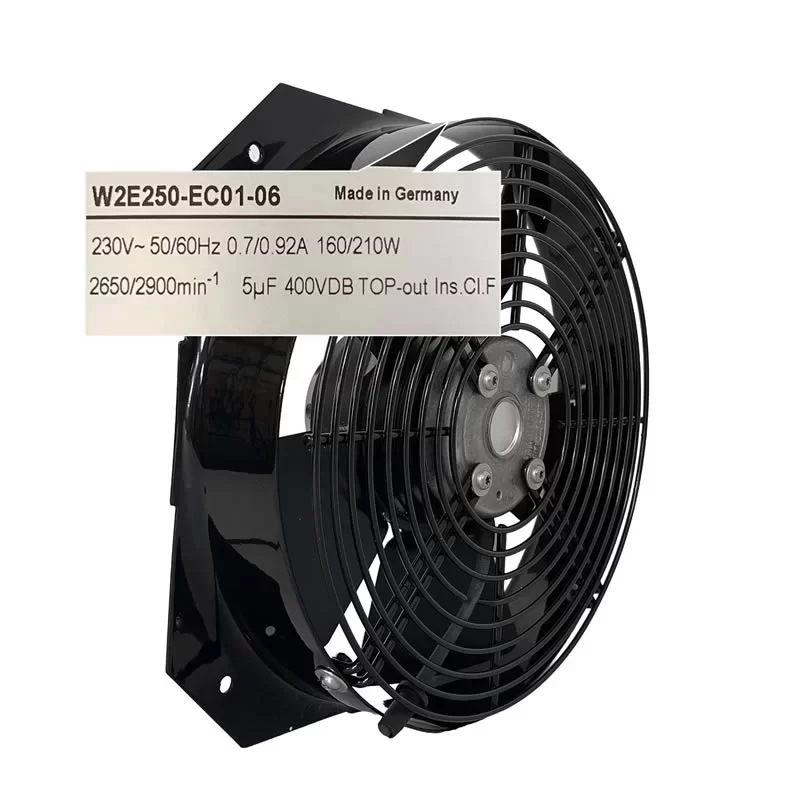

The ebmpapst W2E250-EC01-06 is a high-performance 230VAC single-phase AC axial fan with an impeller size of Ø 250 mm and external dimensions of 290 x 290 x 98 mm. Powered by an M2E068-EC motor, this straight-blade axial fan featuring a wall ring and guard grille delivers reliable airflow and cooling performance. Operating at a rated speed of 2,650 / 2,900 RPM under 50 / 60 Hz, it draws a maximum current of 0.70 / 0.92 A with a power consumption of 160 / 210 W and uses a 5 µF / 400 VDB motor capacitor. Built with a black-coated sheet steel impeller, pre-galvanised steel wall ring, precision ball bearings, an IP44 protection rating, and Insulation Class F, it weighs 3.5 kg and supports continuous S1 operation across operating temperatures from -25 to +70 °C.

W2E250-EC01-06 Fan Parameters
Manufacturer: ebmpapst
Model Number: W2E250-EC01-06
Motor Model: M2E068-EC
Type: AC Axial Fan (Straight Blades, Wall Ring with Guard Grille)
Impeller Size: Ø 250 mm
Dimensions: 290 x 290 x 98 mm
Weight: 3.5 kg
Blade Material: Sheet steel, coated in black
Wall Ring Material: Sheet steel, pre-galvanised and coated in black plastic (RAL 9005)
Guard Grille Material: Steel, coated in black plastic (RAL 9005)
Number of Blades: 5
Surface of Rotor: Coated in black
Direction of Rotation: Counter-clockwise (seen on rotor)
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz / 230V 60Hz)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 0.70 / 0.92 A
Max. Power Consumption: 160 / 210 W
Rated Speed: 2,650 / 2,900 RPM (min⁻¹)
Motor Capacitor: 5 µF / 400 VDB
Ingress Protection: IP44 (depending on installation and position)
Insulation Class: Class F
Environmental Protection Class: F0
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +70 °C (at 50 Hz), -25 – +65 °C (at 60 Hz)
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Motor Protection: Thermal overload protector (TOP) brought out
Cable Exit: Lateral
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: CE, EN 60335-1, RoHS

Application
The ebmpapst W2E250-EC01-06 is deployed in industrial ventilation systems, commercial air conditioning units, heat exchangers, refrigeration equipment, and electrical control cabinet cooling units.
