Description

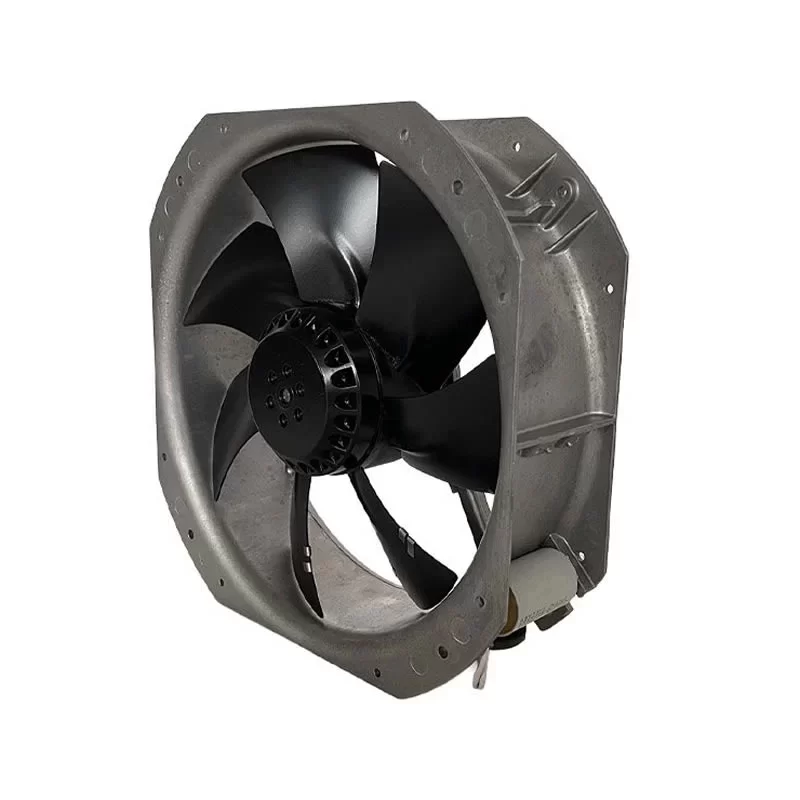

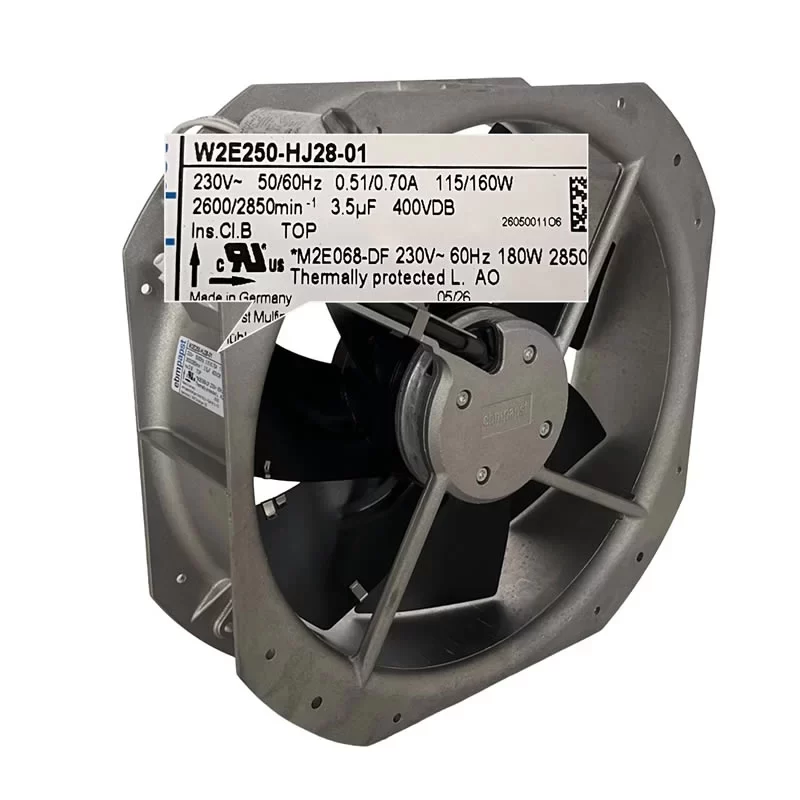

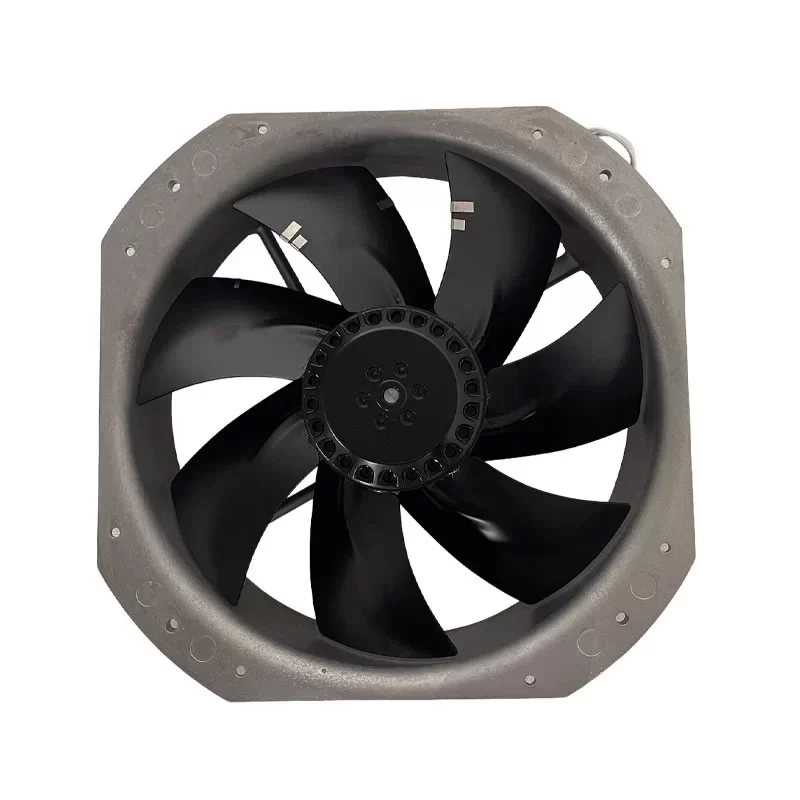

The ebmpapst W2E250-HJ28-01 is a high-performance 230VAC single-phase AC axial compact fan featuring an impeller size of Ø 250 mm and external dimensions of 280 x 280 x 80 mm. Powered by an M2E068-DF motor, this 7-blade sickled-blade axial fan (S series) with a die-cast aluminium wall ring delivers high-volume airflow and reliable thermal management. Operating at a rated speed of 2,600 / 2,850 RPM under 50 / 60 Hz, it draws a maximum current of 0.51 / 0.7 A with a power consumption of 115 / 160 W and utilizes an integrated 3.5 µF / 400 VDB motor capacitor. Built with a black-coated sheet steel blade design, precision ball bearings, Insulation Class B, and an IP44 protection rating, it weighs 3.2 kg and supports continuous S1 operation across ambient temperatures ranging from -25 to +70 °C.
W2E250-HJ28-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: W2E250-HJ28-01
Motor Model: M2E068-DF
Type: AC Axial Compact Fan (Sickled Blades, S Series, Wall Ring with Die-Cast Aluminium Frame)
Impeller Size: Ø 250 mm
Dimensions: 280 x 280 x 80 mm
Weight: 3.2 kg
Blade Material: Sheet steel, coated in black
Wall Ring Material: Die-cast aluminium
Number of Blades: 7
Surface of Rotor: Coated in black
Direction of Air Flow: “V”
Direction of Rotation: Counter-clockwise (seen on rotor)
Bearing Type: Ball Bearing
Phase: 1~ (Single-Phase)
Data Sequence: (230V 50Hz / 230V 60Hz)
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Current Draw: 0.51 / 0.7 A
Max. Power Consumption: 115 / 160 W
Rated Speed: 2,600 / 2,850 RPM (min⁻¹)
Motor Capacitor: 3.5 µF / 400 VDB (Capacitor Standard: P0 / CE)
Max. Back Pressure: 150 / 120 Pa (0.6 / 0.48 in. wg)
Working Air Flow: 1,100 CFM (1,885.0 m³/h / 31.4 m³/min)
Max. Static Pressure: 0.44 inAq (110.0 Pa / 11.2 mmH₂O)
Ingress Protection: IP44
Insulation Class: Class B
Environmental Protection Class: F0
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +70 °C (at 50 Hz), -25 – +55 °C (at 60 Hz)
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Electrical Leads: Via terminal strips, integrated capacitor connected via terminal strips
Motor Protection: Thermal overload protector (TOP) wired internally
Cable Exit: Variable
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: CE, EN 60335-1, UL 2111, CSA C22.2 Nr.77
Application
The ebmpapst W2E250-HJ28-01 is deployed in industrial ventilation systems, electrical control cabinets, frequency converters, commercial refrigeration equipment, and high-capacity HVAC cooling assemblies.
