Description

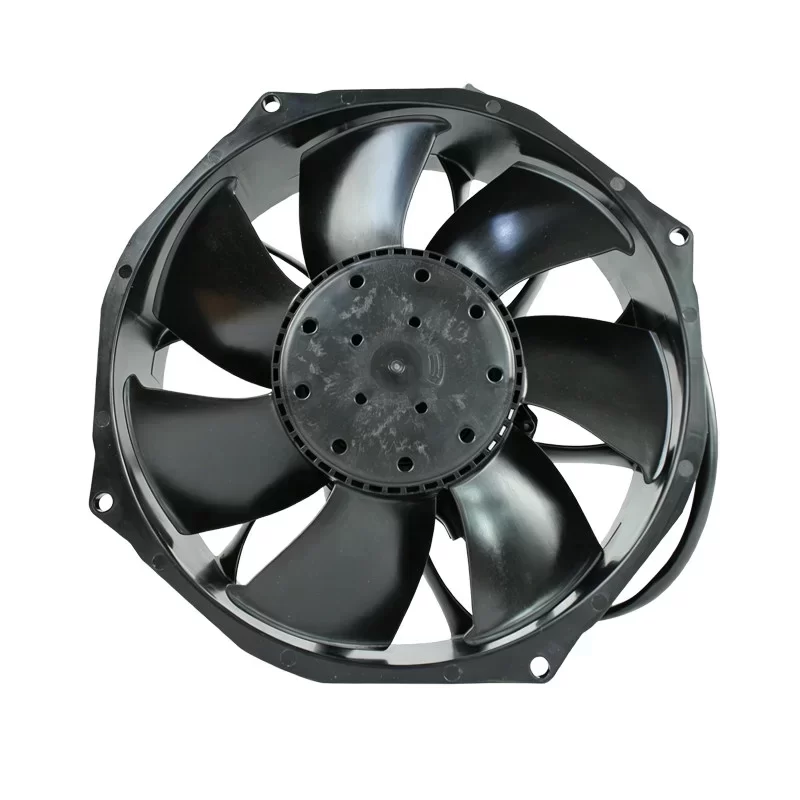

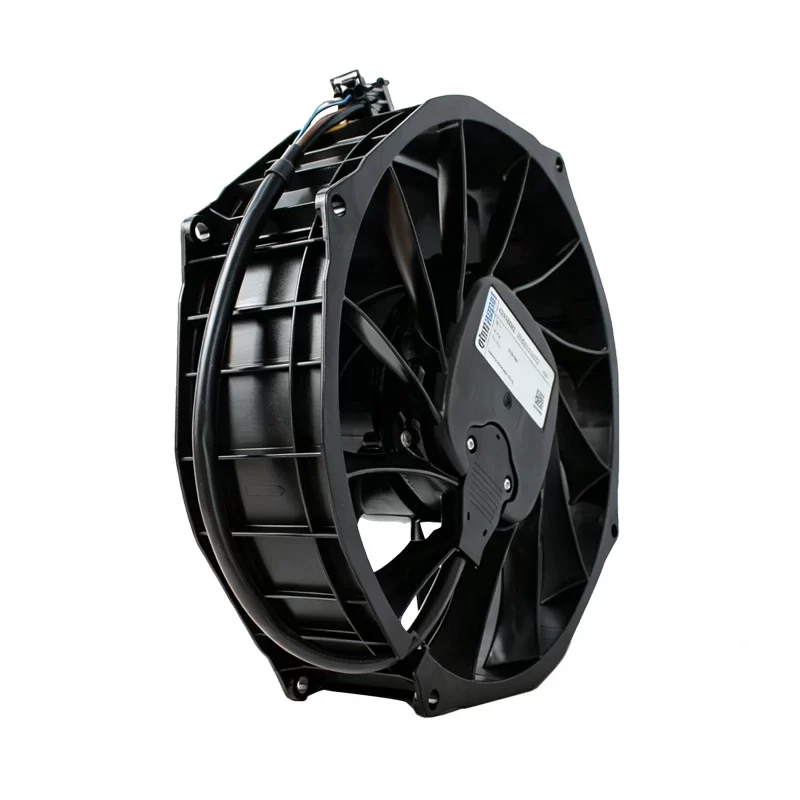

The ebmpapst W3G250-8317080551 is a high-performance axial fan with an impeller size of Ø 250 mm, engineered for intensive thermal management applications. Operating at a rated voltage of 26 V, this fan delivers an exceptional maximum air flow of 882.87 CFM (1,500 m³/h) at a high-speed nominal rating of 4,240 RPM. It features a robust power consumption of 270 W and a current draw of 10.4 A. Built with a durable plastic frame and blade construction, precision ball bearings, and a wide operating temperature range of -40 to +85 °C, it ensures reliable continuous-duty performance in demanding industrial environments with an expected service life of 40,000 hours.
W3G250-8317080551 Fan Parameters
Manufacturer: ebmpapst
Model Number: W3G250-8317080551
Type: Axial Fan
Impeller Size: Ø 250 mm
Weight: 1.8 kg
Frame / Blade Material: Plastic
Bearing Type: Ball Bearing
Rated Voltage: 26 V
Max. Current Draw: 10.4 A
Max. Power Consumption: 270 W
Rated Speed: 4,240 RPM (min⁻¹)
Max. Air Flow: 882.87 CFM (1,500 m³/h / 25.0 m³/min)
Expected Life: 40,000 h
Operating Temperature: -40 – +85 °C
Termination: Lead Wires
Application
The ebmpapst W3G250-8317080551 axial fan is specifically designed for cooling high-performance industrial equipment, electronics enclosures, ventilation systems, and commercial machinery requiring high-volume airflow and reliable thermal extraction.
