XXD501012VH XINGXINDA 12V 0.08A DC axial fan

Description

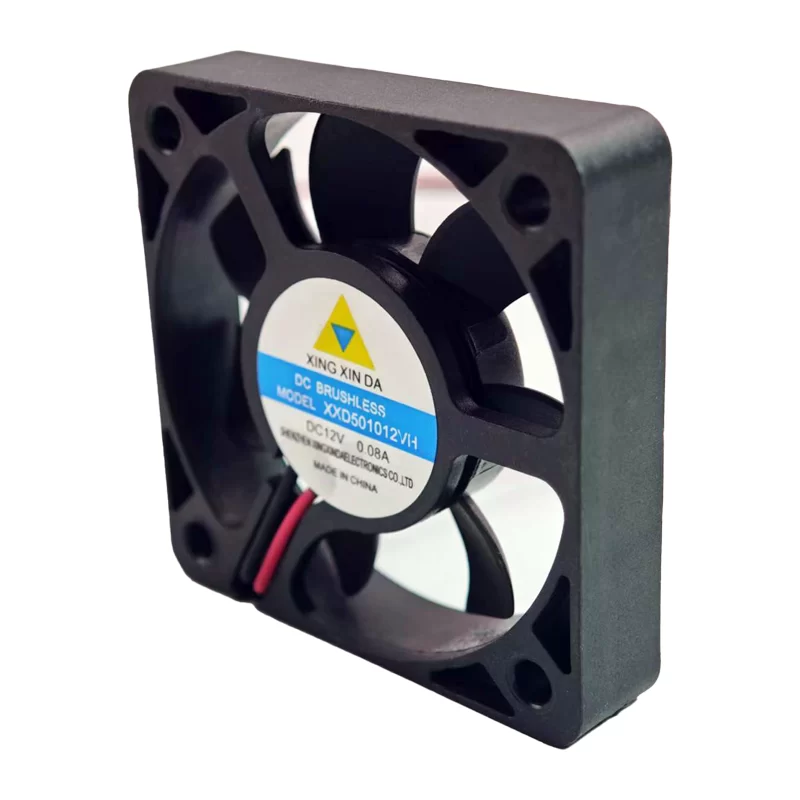

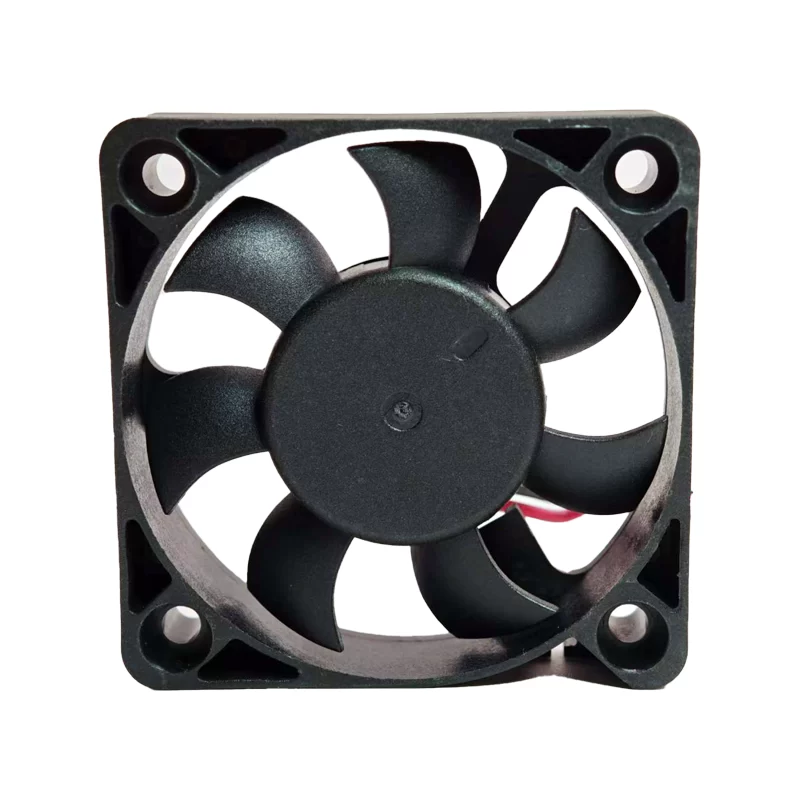

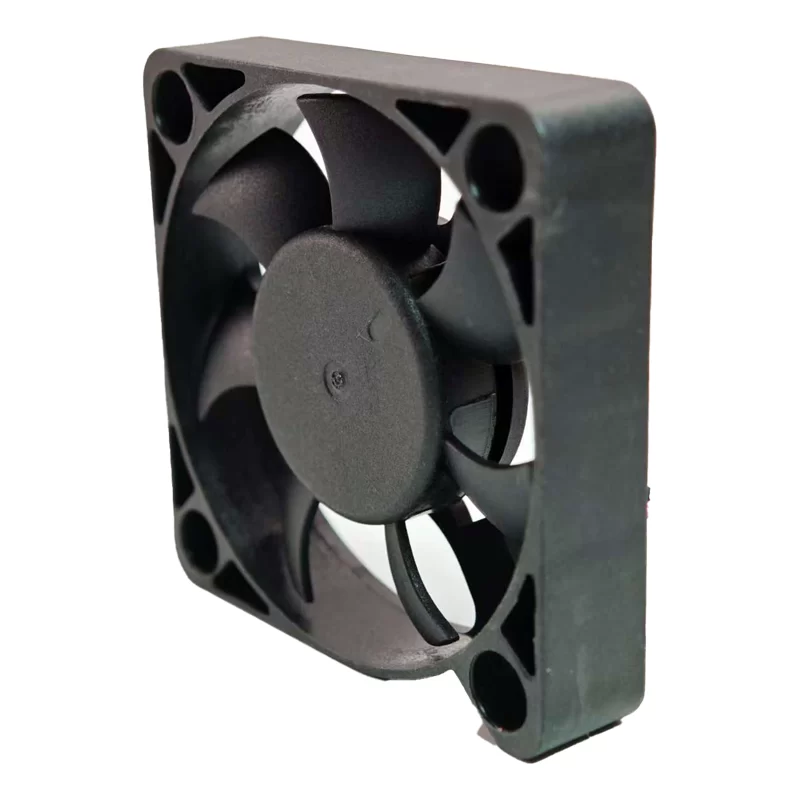

The XINGXINDA XXD501012VH is a compact DC axial fan with dimensions of 50mm x 50mm x 10mm. It operates on 12 VDC, drawing 0.08A of current and consuming 0.96W of power. This fan is designed for cooling small electronic devices, 3D printers, and other equipment where space is limited. It typically features a dual ball bearing for durability.

XXD501012VH Fan Parameters
Model: XXD501012VH
Manufacturer: XINGXINDA
Type: DC Axial Fan
Dimensions: 50mm x 50mm x 10mm
Rated Voltage: 12 VDC
Rated Current: 0.08A
Power Consumption: 0.96 W
Bearing Type: Dual Ball Bearing
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Pin or 3-Pin
Operating Temperature: -10°C to +65°C
Weight: 30 g
Application: Small electronic devices, 3D printers, mini PCs, embedded systems, component cooling.
Life Expectancy: 70,000 hours (at 40°C with dual ball bearing)
