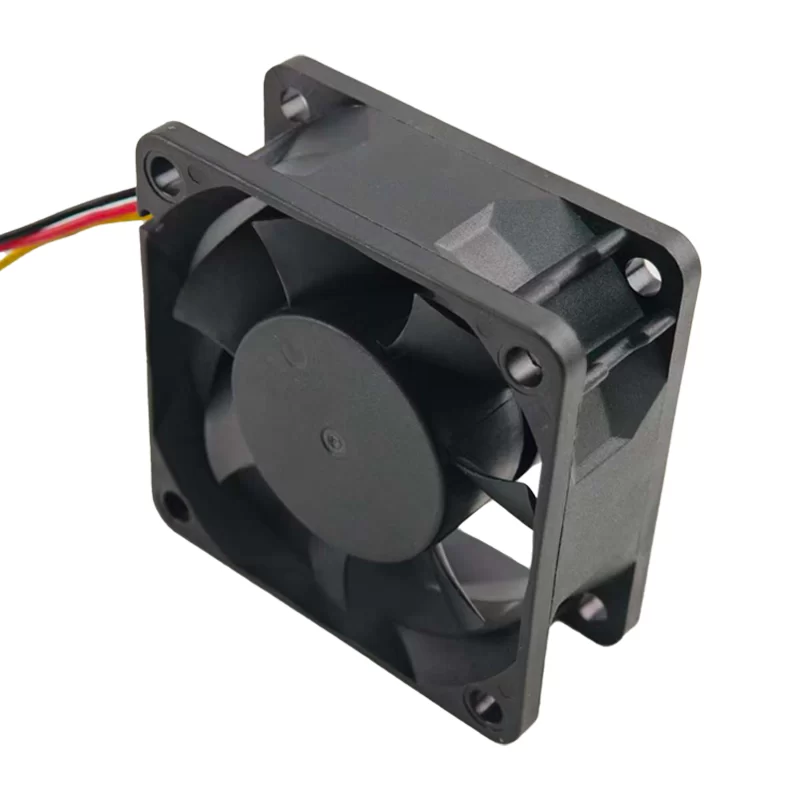

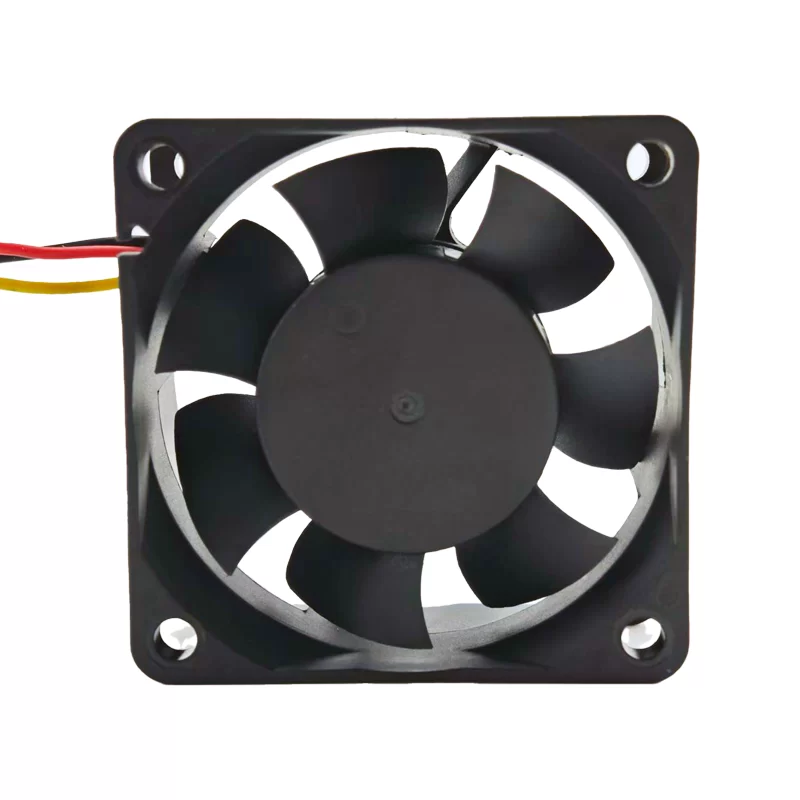

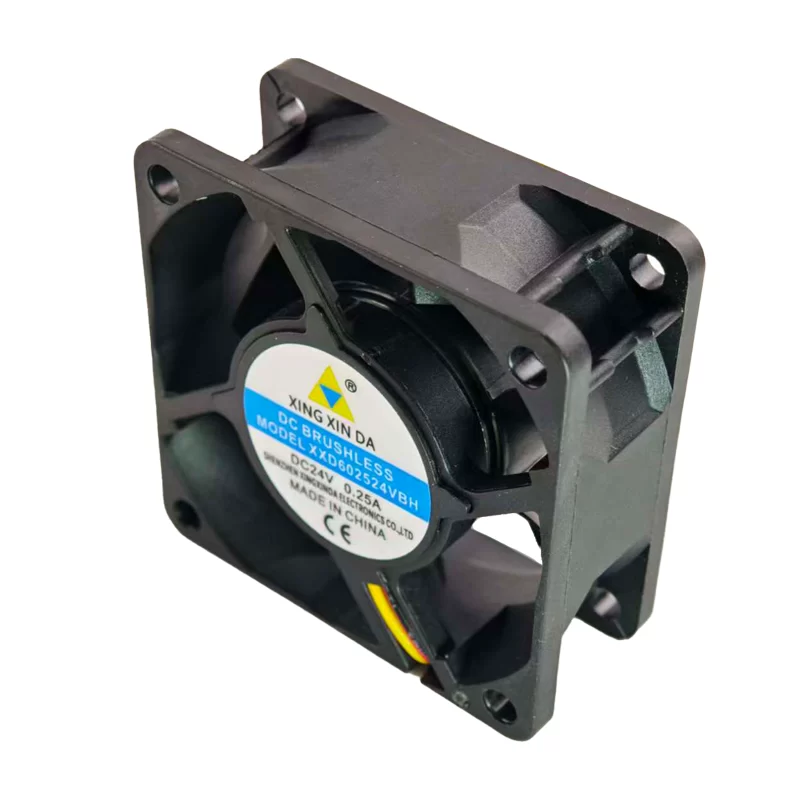

XXD602524VBH XINGXINDA 24V 0.25A 60mm DC Axial Fan

Description

The XINGXINDA XXD602524VBH is a high-performance DC Axial Fan with dimensions of 60 x 60 x 25 mm. It operates on a nominal voltage of 24 V DC with a current draw of 0.25 A. This fan is designed for cooling high-density electronic assemblies, power modules, and compact industrial control units where the 24V DC standard is utilized and aggressive airflow is required in a small footprint.

XXD602524VBH Fan Parameters
Model: XXD602524VBH
Manufacturer: XINGXINDA
Type: DC Axial Fan (Tubeaxial)
Series: High-Speed
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 14.0 V DC to 26.0 V DC
Rated Current: 0.25 A
Rated Power Consumption: 6.0 W
Speed: 6000 RPM
Max. Airflow (Free Air): 30.0 CFM (51.0 m³/h)
Max. Static Pressure: 0.40 inAq (99.7 Pa)
Noise Level: 45.0 dB(A)
Number of Blades: 7
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Termination: 3 Wire Leads
Housing Material: Thermoplastic (PBT UL94V-0)
Impeller Material: Thermoplastic (PBT UL94V-0)
Life Expectancy: 50000 h (at 40 °C)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C

Application
The XINGXINDA XXD602524VBH fan is a compact, high-speed solution suitable for forced air cooling in systems demanding a 60 mm frame size. Its high performance, derived from the power input (6.0 W) and high speed, makes it ideal for dense telecommunications boards, power supply ventilation, small form factor embedded computers, and industrial equipment relying on 24V DC power.
