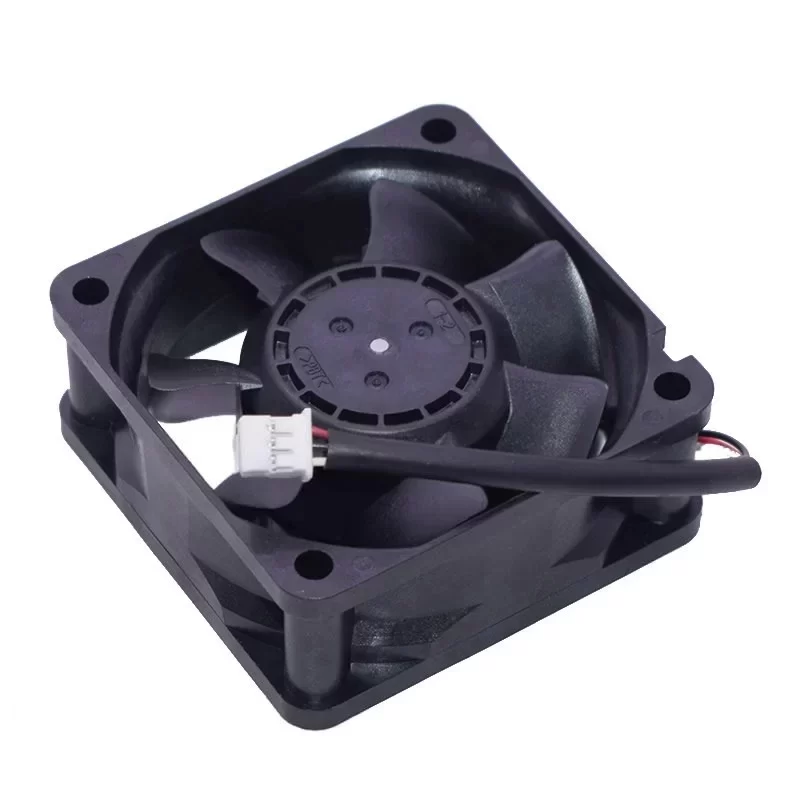

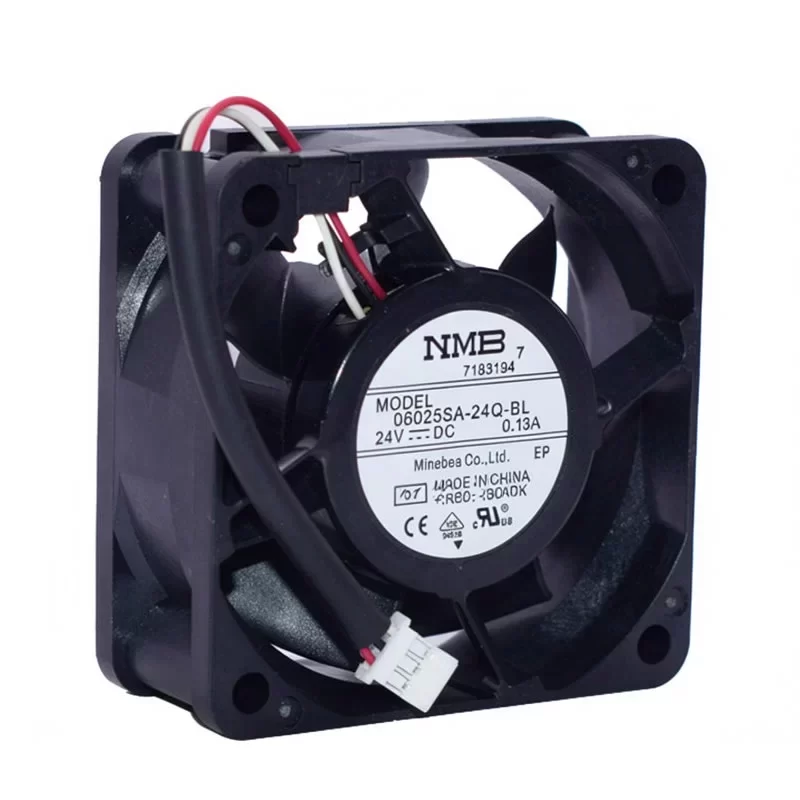

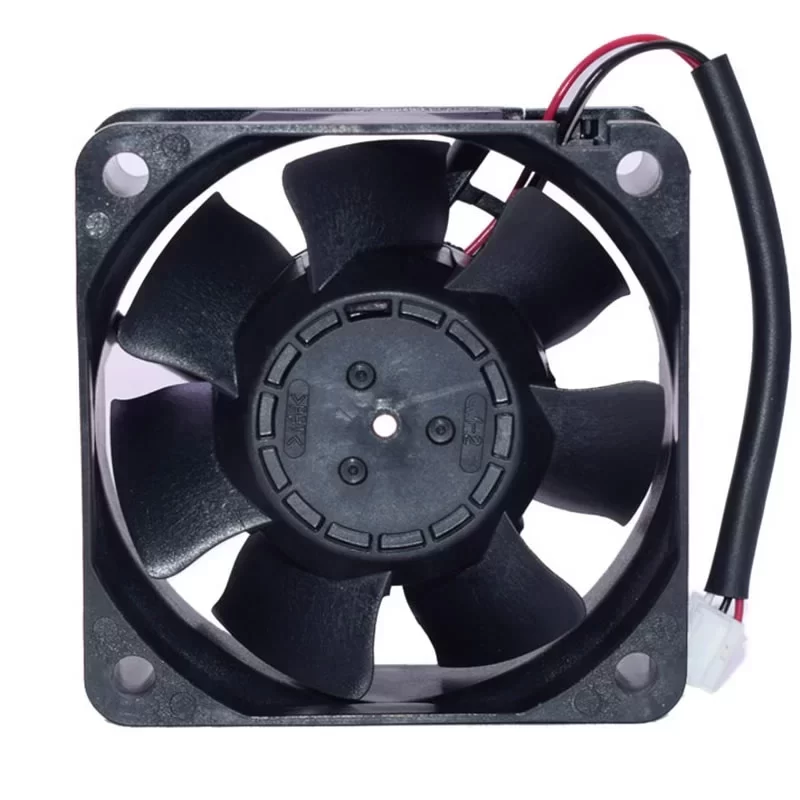

06025SA-24Q-BL NMB 24VDC 60x60x25mm DC Axial Fan

Description

The NMB 06025SA-24Q-BL is a high-performance 24 VDC DC Axial Fan with dimensions of 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 in), engineered to deliver efficient forced-air cooling and active thermal management for industrial electronics, power supplies, and telecommunications equipment. Constructed with a durable PBT plastic housing (UL94V-0), a PBT plastic impeller, and precision dual ball bearings, it has a net weight of 56 g. Driven by an advanced brushless DC motor operating across a voltage range of 14.0 – 27.6 VDC, it draws a rated current of 0.13 A with a power consumption of 3.12 W. Operating at a nominal speed of 5300 RPM, it provides a Max. Air Flow of 26.80 CFM (45.53 m³/h / 0.76 m³/min) and a Max. Static Pressure of 8.16 mmH₂O (80.00 Pa / 0.32 inAq) with a noise level of 35.0 dBA. Designed with a 3-wire lead configuration featuring an integrated tachometer (FG) speed sensor output, it includes auto-restart and reverse polarity protection, complying with UL, CSA, VDE, CE, and RoHS agency approvals.

06025SA-24Q-BL Fan Parameters
Manufacturer: NMB (NMB Technologies / MinebeaMitsumi)
Model Number: 06025SA-24Q-BL
Type: DC Axial Fan
Country of Origin: Japan
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.13 A
Power Consumption: 3.12 W
Motor Type: Brushless DC Motor
Electrical Connection: 3 Wire Leads
Control Interface & Signal: Tachometer (FG) Speed Sensor Output
Motor Protection: Auto Restart, Reverse Polarity Protection, Locked Rotor Protection
Speed: 5300 RPM
Max. Air Flow: 26.80 CFM (45.53 m³/h / 0.76 m³/min)
Max. Static Pressure: 8.16 mmH₂O (80.00 Pa / 0.32 inAq)
Noise Level: 35.0 dBA
Dimensions: 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 in)
Weight: 56 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Operating Temperature: -10 to +70 °C
Agency Approvals: UL, CSA, VDE, CE, RoHS

Application
The NMB 06025SA-24Q-BL is deployed in industrial automation controllers, server power supply units, network switches, medical diagnostic instruments, frequency inverters, and compact electronic enclosures requiring reliable continuous active thermal management.
