Description

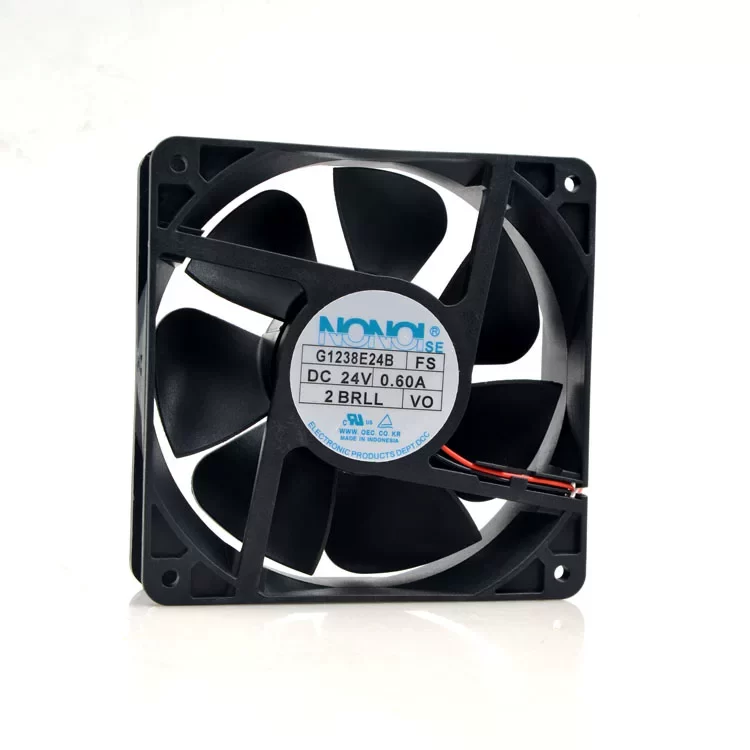

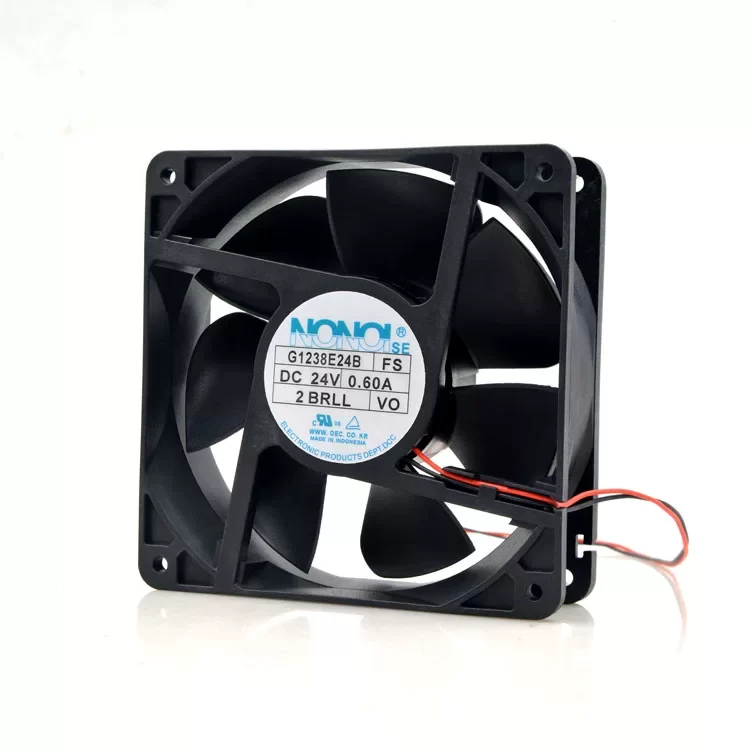

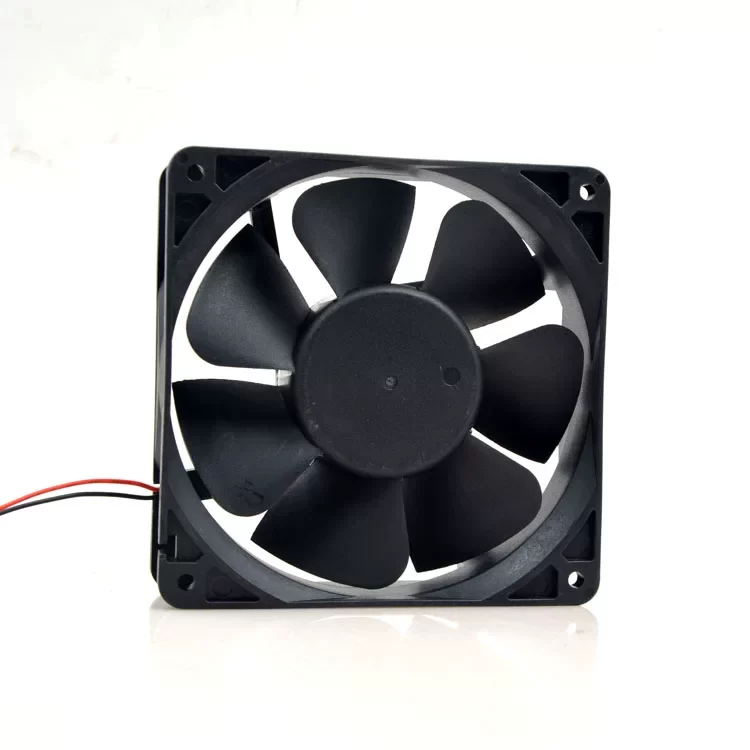

The NONOISE G1238E24B FS is a high-performance 24 VDC DC Axial Fan with dimensions of 120 x 120 x 38 mm, engineered to deliver reliable forced-air cooling and efficient thermal management for industrial electronics, power supplies, and server enclosures. Constructed with a robust PBT plastic housing (UL94V-0), a PBT plastic impeller, and precision dual ball bearings, it has a net weight of 335 g. Driven by an advanced brushless DC motor operating at a nominal voltage of 24 VDC, it draws a rated current of 0.60 A with a power consumption of 14.40 W. Operating at a nominal speed of 3600 RPM, it provides a Max. Air Flow of 130.00 CFM (220.86 m³/h / 3.68 m³/min) and a Max. Static Pressure of 12.45 mmH₂O (122.05 Pa / 0.49 inAq) with a noise level of 49.0 dBA. Designed with wire lead connections, it features thermal overload protection, locked rotor protection, and complies with CE, cULus, TÜV, and RoHS agency approvals.
G1238E24B FS Fan Parameters
Manufacturer: NONOISE
Model Number: G1238E24B FS
Type: DC Axial Fan
Country of Origin: Indonesia
Nominal Voltage: 24 VDC
Rated Current: 0.60 A
Power Consumption: 14.40 W
Motor Type: Brushless DC Motor
Electrical Connection: 2 Wire Leads
Motor Protection: Thermal Overload Protection, Locked Rotor Protection, Reverse Polarity Protection
Speed: 3600 RPM
Max. Air Flow: 130.00 CFM (220.86 m³/h / 3.68 m³/min)
Max. Static Pressure: 12.45 mmH₂O (122.05 Pa / 0.49 inAq)
Noise Level: 49.0 dBA
Dimensions: 120 x 120 x 38 mm (4.69 x 4.69 x 1.50 in)
Weight: 335 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing (2 BRLL)
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, cULus, TÜV, RoHS
Application
The NONOISE G1238E24B FS is deployed in industrial automation control cabinets, telecommunications power equipment, network switches, server racks, and power supply units requiring reliable continuous active cooling.
