Description

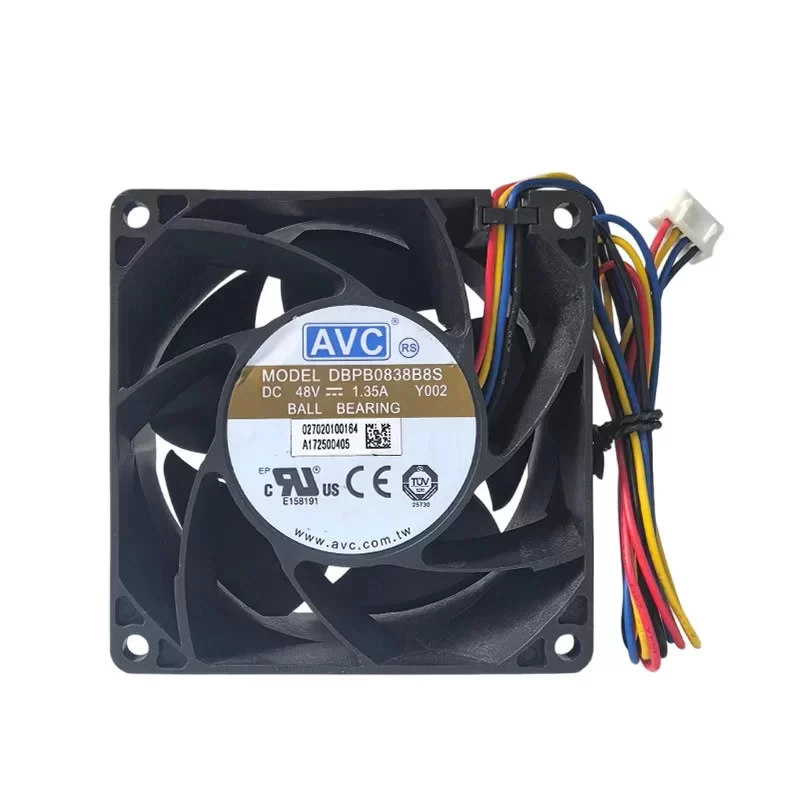

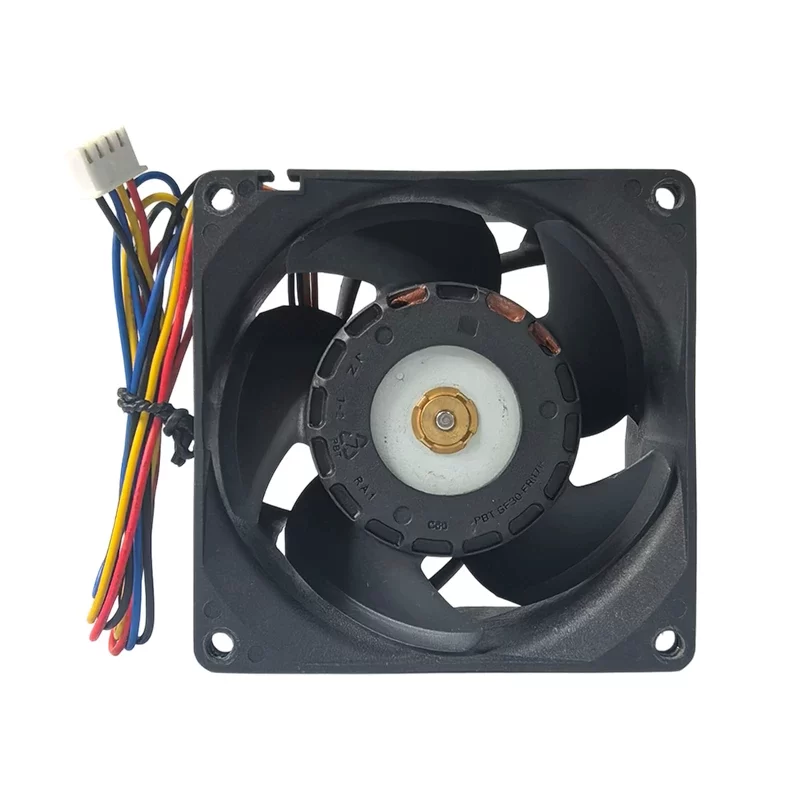

The AVC DBPB0838B8S-Y002 is a high-performance 48 VDC DC Axial Fan with dimensions of 80 x 80 x 38 mm, engineered to deliver high air volume and extreme static pressure cooling for high-density servers, telecom power infrastructure, and industrial electronics. Constructed with a heavy-duty PBT plastic housing (UL94V-0), a PBT plastic impeller (UL94V-0), and precision dual ball bearings, it has a net weight of 220 g. Driven by an advanced brushless DC motor operating across a voltage range of 36.0 – 56.0 VDC, it draws a rated current of 1.35 A with a power consumption of 64.80 W. Operating at an ultra-high speed of 13000 RPM, it provides a Max. Air Flow of 125.00 CFM (212.38 m³/h / 3.54 m³/min) and a Max. Static Pressure of 58.00 mmH₂O (568.79 Pa / 2.28 inAq) with a noise level of 71.5 dBA. Designed with 4 wire lead connections with a connector supporting PWM speed control and FG tachometer signal output, it features reverse polarity protection, locked rotor protection, and complies with CE, cURus, TÜV, and RoHS agency approvals.
DBPB0838B8S-Y002 Fan Parameters
Manufacturer: AVC (Asia Vital Components Co., Ltd.)
Model Number: DBPB0838B8S-Y002
Type: DC Axial Fan
Country of Origin: China
Nominal Voltage: 48 VDC
Operating Voltage Range: 36.0 – 56.0 VDC
Rated Current: 1.35 A
Power Consumption: 64.80 W
Motor Type: Brushless DC Motor
Electrical Connection: 4 Wire Leads with Connector
Control Interface & Signal: PWM Speed Control, Tachometer (FG) Speed Sensor Output
Motor Protection: Reverse Polarity Protection, Locked Rotor Protection
Speed: 13000 RPM
Max. Air Flow: 125.00 CFM (212.38 m³/h / 3.54 m³/min)
Max. Static Pressure: 58.00 mmH₂O (568.79 Pa / 2.28 inAq)
Noise Level: 71.5 dBA

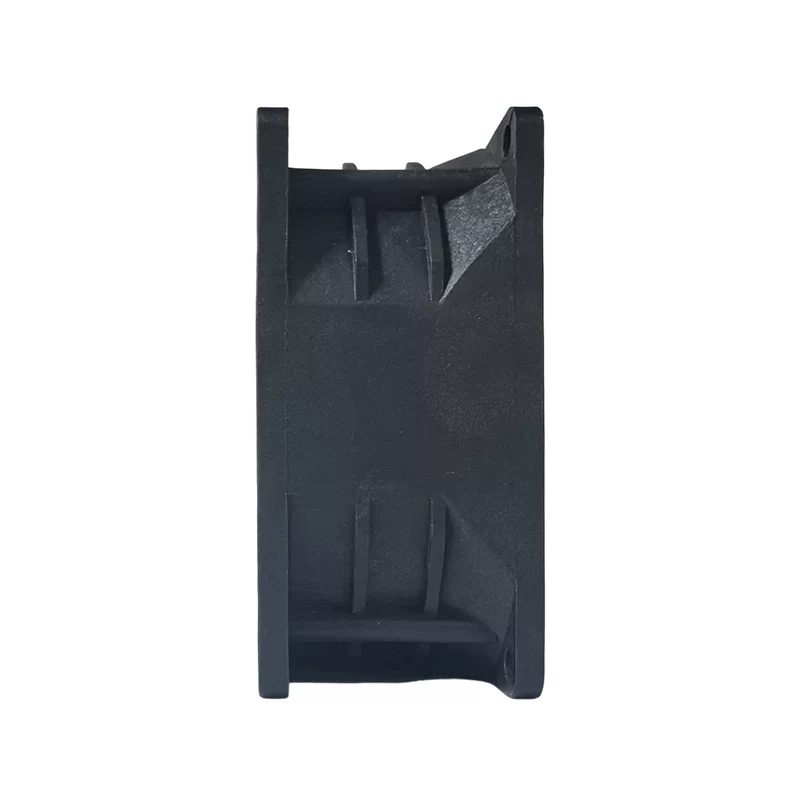

Dimensions: 80 x 80 x 38 mm
Weight: 220 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, cURus, TÜV, RoHS
Application
The AVC DBPB0838B8S-Y002 is deployed in 1U/2U rackmount servers, high-density network switches, telecommunications power rectifiers, industrial frequency inverters, and energy storage system (ESS) cabinets requiring intensive forced-air thermal management under high thermal loads.
