Description

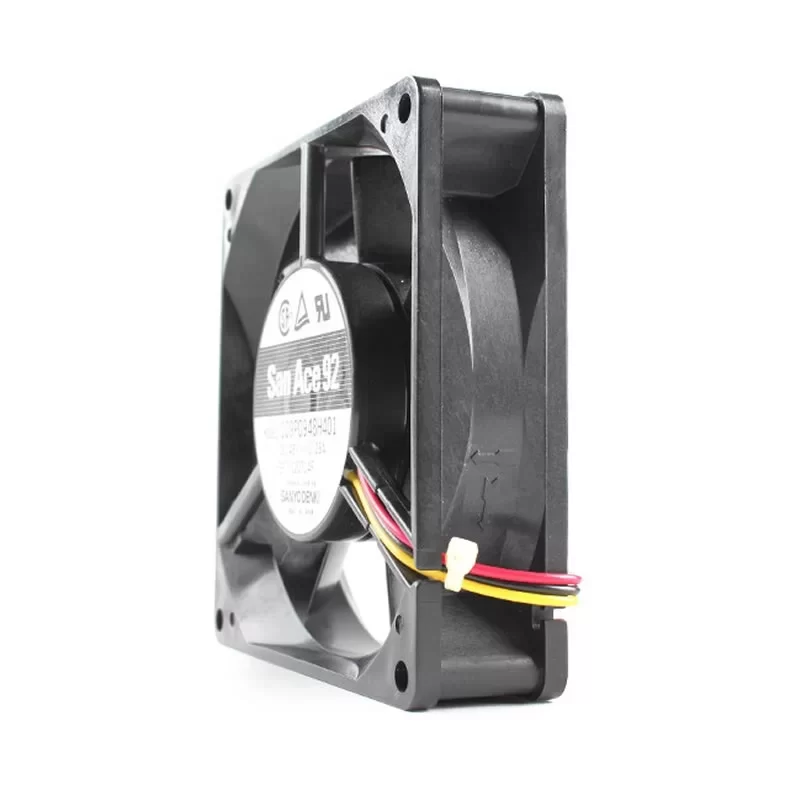

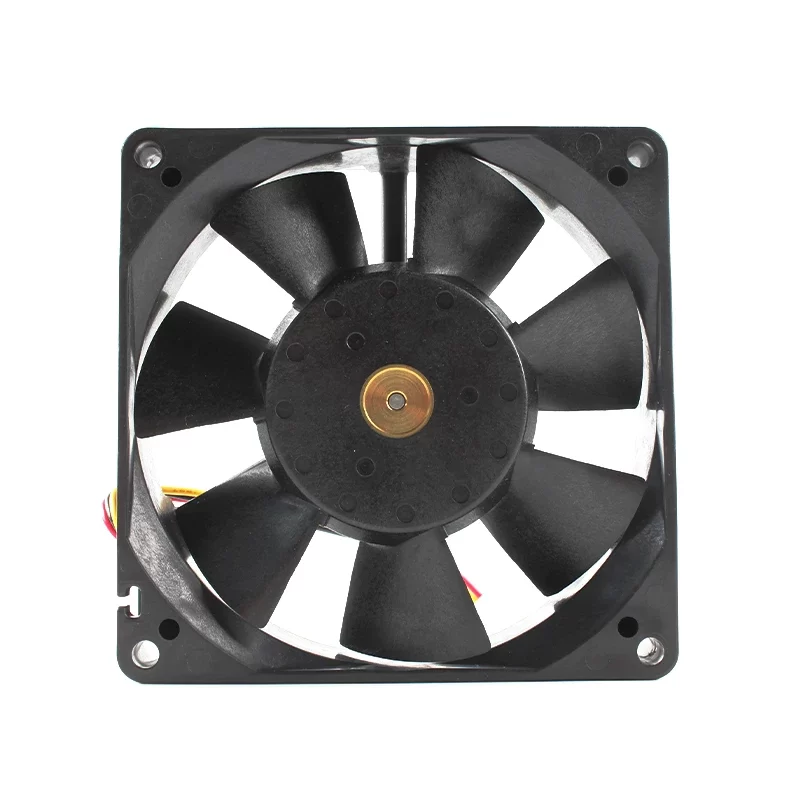

The Sanyo Denki 109P0948H401 is a high-performance 48VDC 92 x 92 x 25 mm DC axial fan, engineered for reliable thermal management in industrial and IT systems. Featuring dual ball bearings and a flame-retardant plastic frame and impeller (UL 94V-0), this compact cooling fan delivers an airflow of 51.2 CFM (86.99 m³/h / 1.45 m³/min) and a static pressure of 4.57 mmH₂O (44.84 Pa / 0.18 inH₂O) at a rated speed of 2,850 RPM. Operating on a voltage range of 28.0 – 53.0 VDC, it draws a maximum current of 0.06 A with a power consumption of 2.88 W. Built for continuous high-reliability cooling, it weighs 0.15 kg, operates within a temperature range of -10 to +70 °C (storage temperature -30 to +70 °C), offers a life expectancy of 50,000 hours, and holds safety certifications including UL, CSA, TUV, and CE.
109P0948H401 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 109P0948H401
Type: DC Axial Fan
Nominal Voltage: 48 VDC
Operating Voltage Range: 28.0 – 53.0 VDC
Dimensions: 92 x 92 x 25 mm
Weight: 0.15 kg
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires
Rated Speed: 2,850 RPM (min⁻¹)
Current Draw: 0.06 A
Power Consumption: 2.88 W
Air Flow: 51.2 CFM (86.99 m³/h / 1.45 m³/min)
Static Pressure: 4.57 mmH₂O (44.84 Pa / 0.18 inH₂O)
Noise Level: 33 dBA
Operating Temperature: -10 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 50,000 hours
Safety Approvals: UL, CSA, TUV, CE
Application
The Sanyo Denki 109P0948H401 is deployed in server enclosures, telecommunication power systems, networking equipment, industrial control cabinets, and medical electronic devices.
