Description

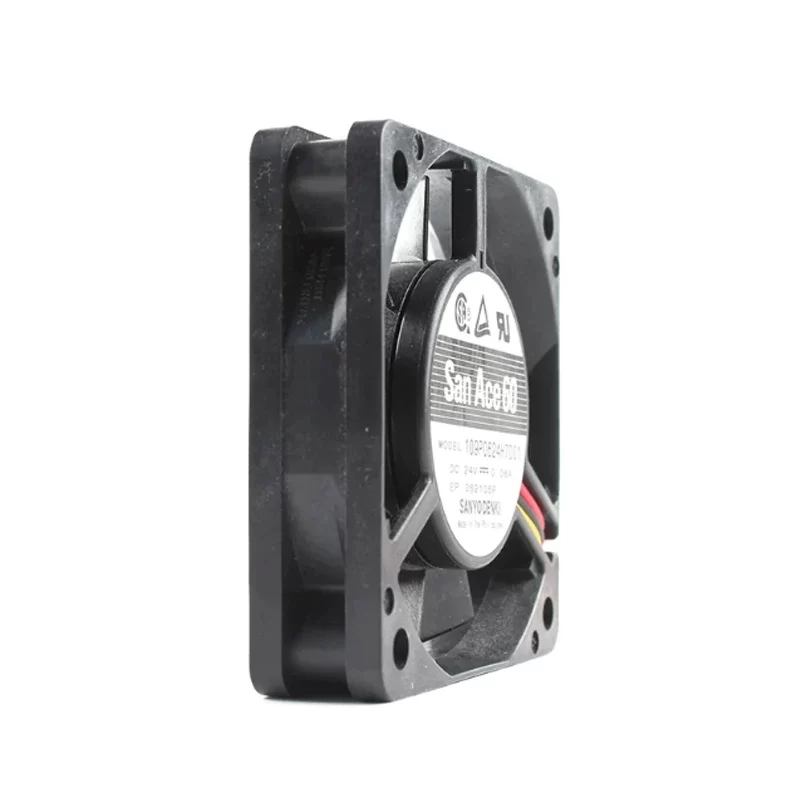

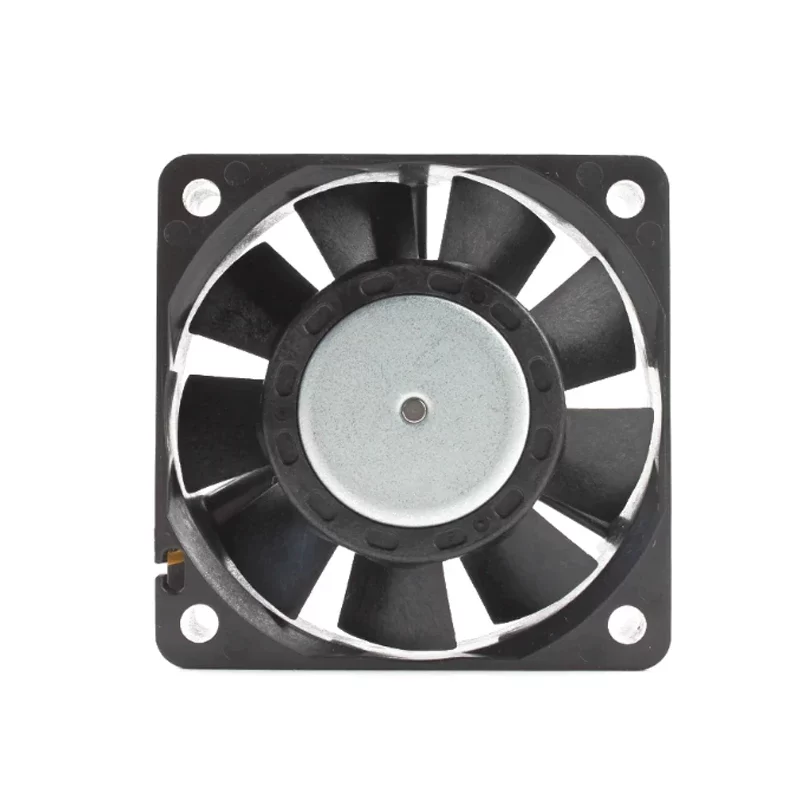

The Sanyo Denki 109P0624H7D01 is a high-performance 24VDC 60 x 60 x 15 mm DC axial fan, engineered for reliable thermal management in industrial and IT systems. Featuring dual ball bearings and a flame-retardant plastic frame and impeller (UL 94V-0), this compact cooling fan delivers an airflow of 14.1 CFM (24.0 m³/h / 0.40 m³/min) and a static pressure of 3.89 mmH₂O (38.2 Pa / 0.153 inH₂O) at a rated speed of 4,100 RPM. Operating on a voltage range of 14.0 – 27.6 VDC, it draws a maximum current of 0.06 A with a power consumption of 1.44 W and includes 3-wire lead connections with an integrated lock sensor. Built for continuous high-reliability cooling, it weighs 0.06 kg, operates quietly at 32 dBA within a temperature range of -20 to +70 °C, offers a life expectancy of 50,000 hours, and holds safety certifications including UL, CSA, TUV, and CE.
109P0624H7D01 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 109P0624H7D01
Type: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Dimensions: 60 x 60 x 15 mm
Weight: 0.06 kg
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (3 Wires)
Sensor Signal: Lock Sensor
Rated Speed: 4,100 RPM (min⁻¹)
Max. Current Draw: 0.06 A
Max. Power Consumption: 1.44 W
Max. Air Flow: 14.1 CFM (24.0 m³/h / 0.40 m³/min)
Max. Static Pressure: 3.89 mmH₂O (38.2 Pa / 0.153 inH₂O)
Noise Level: 32 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 50,000 hours
Safety Approvals: UL, CSA, TUV, CE
Application
The Sanyo Denki 109P0624H7D01 is deployed in server enclosures, telecommunication power systems, networking equipment, industrial control cabinets, power distribution units, and medical electronic devices.
