Description

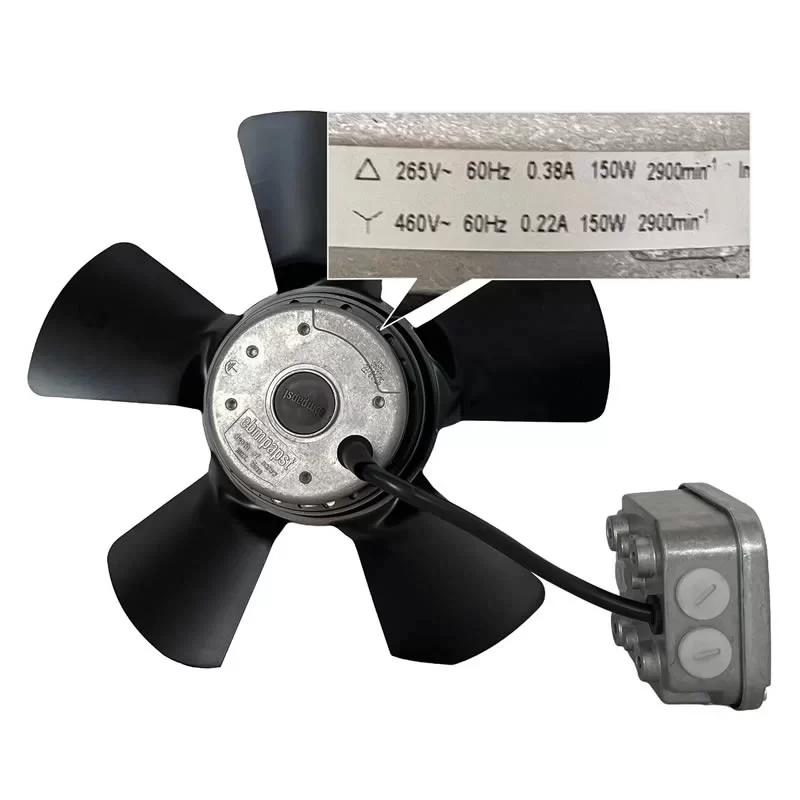

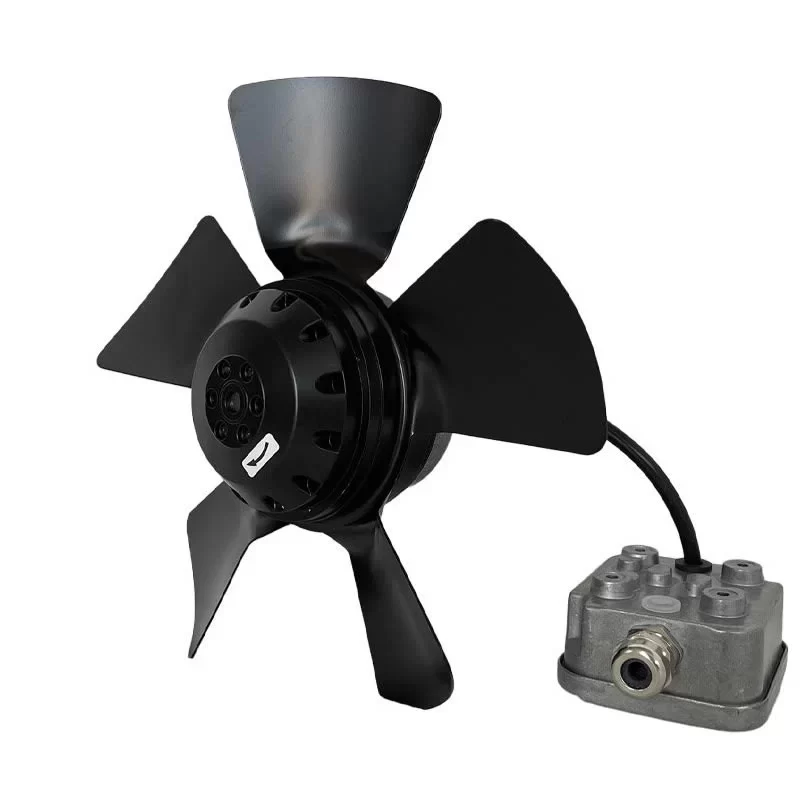

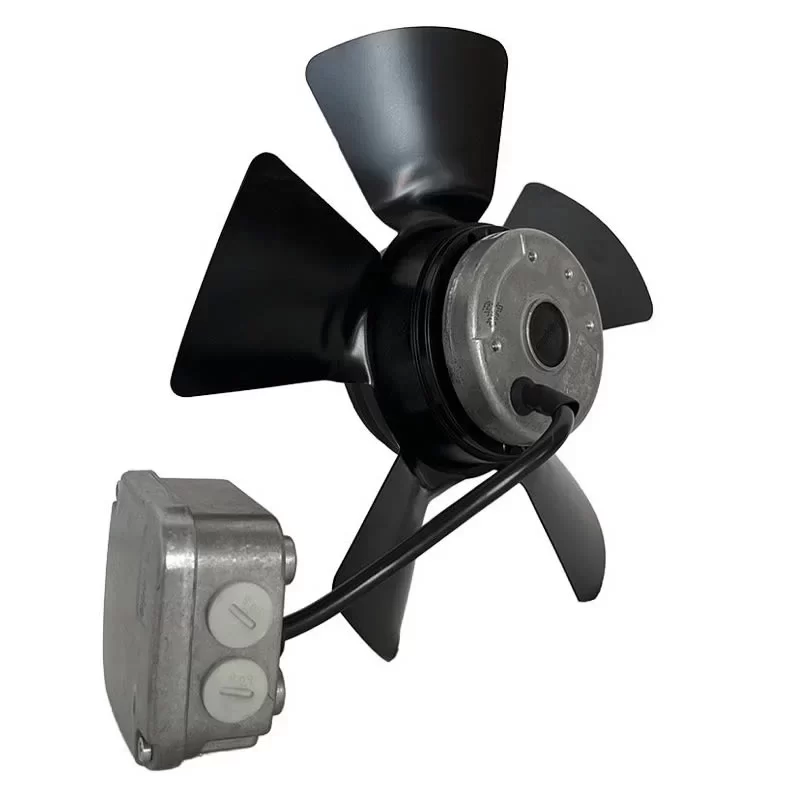

The ebmpapst A2D250-AA06-84 is a high-performance 265VAC / 460VAC three-phase AC axial fan featuring an impeller size of 250 mm. Powered by an M2D068-DF motor, this A-series axial fan utilizes straight, black-painted sheet steel blades and a robust die-cast aluminum terminal box. Operating at a rated speed of 2,900 RPM at 60 Hz, it maintains an efficient power consumption of 150 W, with a current draw of 0.38 A (at 265V Δ) or 0.22 A (at 460V Y). Engineered for reliability, it features an IP54 protection rating, ball bearings, and S1 continuous operation mode, supporting ambient temperatures up to +65 °C. This fan conforms to EN 60335-1 standards and is designed for demanding industrial environments.
A2D250-AA06-84 Fan Parameters
Manufacturer: ebmpapst
Model Number: A2D250-AA06-84
Motor Model: M2D068-DF
Type: AC Axial Fan (Straight Blades, A Series)
Impeller Size: 250 mm
Weight: 2.5 kg
Impeller Material: Sheet steel, painted black
Terminal Box Material: Die-cast aluminum
Number of Blades: 5
Airflow Direction: “A”
Direction of Rotation: Clockwise, viewed toward rotor
Bearing Type: Ball Bearing
Phase: 3~ (Three-Phase)
Nominal Voltage: 265 VAC (Δ) / 460 VAC (Y)
Frequency: 60 Hz
Max. Current Draw: 0.38 A (at 265V Δ), 0.22 A (at 460V Y)
Max. Power Consumption: 150 W
Rated Speed: 2,900 min⁻¹
Max. Back Pressure: 125 Pa
Ingress Protection: IP54
Insulation Class: Class B
Environmental Protection Class: F3-1
Operating Mode: S1 (Continuous operation)
Operating Temperature: -25 – +65 °C
Storage / Transport Temperature: -40 – +80 °C
Touch Current: < 0.75 mA (per IEC 60990)
Electrical Hookup: Via terminal box
Motor Protection: Thermal overload protector (TOP)
Protection Class: Class I (with customer connection of protective earth)
Safety Approvals: EN 60335-1
Application
The ebmpapst A2D250-AA06-84 is deployed in industrial ventilation systems, commercial air conditioning equipment, heat exchangers, refrigeration units, and electronic enclosure thermal management setups.
