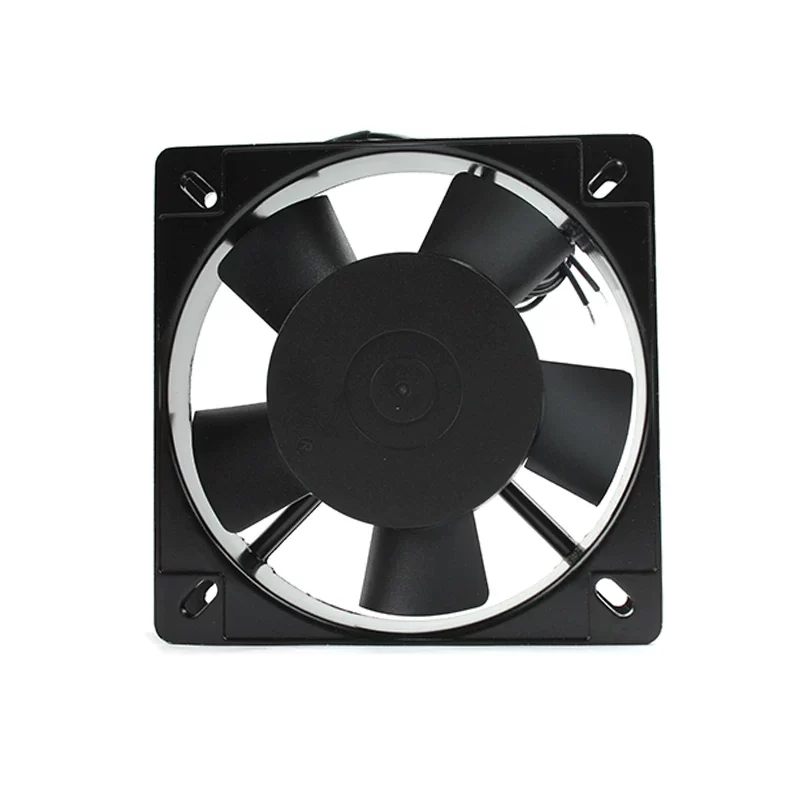

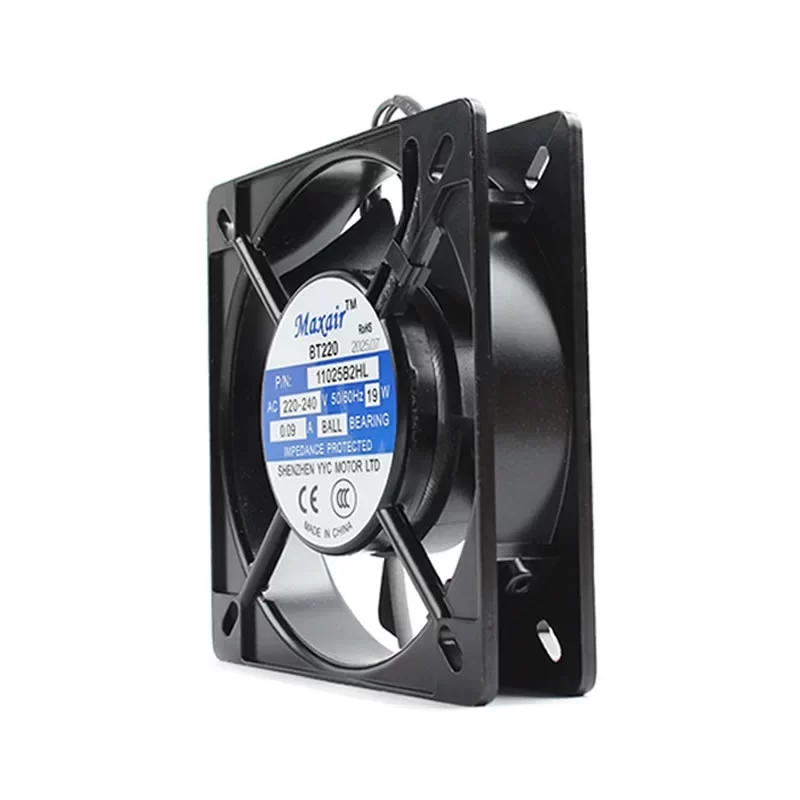

11025B2HL Maxair 220VAC 110x110x25mm AC Axial Fan

Description

The Maxair 11025B2HL is a high-performance 220 VAC AC Axial Fan with dimensions of 110 x 110 x 25 mm. Constructed with an aluminum frame, a plastic impeller (UL 94V-0), and ball bearings, it is driven by an AC motor operating with a current draw of 0.09 A and a power consumption of 19 W. Operating at a nominal speed of 2250 RPM, it produces a max. air flow of 47 CFM (79.85 m³/h / 1.33 m³/min) with a noise level of 33.0 dBA. Engineered for an operating temperature range of -10 to +70 °C and a life expectancy of 50,000 hours, it features a lead wire connection.

11025B2HL Fan Parameters
Manufacturer: Maxair
Model Number: 11025B2HL
Type: AC Axial Fan
Dimensions: 110 x 110 x 25 mm
Frame Material: Aluminum
Impeller Material: Plastic (PBT UL 94V-0)
Bearing Type: Ball Bearing
Connection: Lead Wire
Nominal Voltage: 220 VAC
Current Draw: 0.09 A
Power Consumption: 19 W
Speed: 2250 RPM
Max. Air Flow: 47 CFM (79.85 m³/h / 1.33 m³/min)
Noise Level: 33.0 dBA
Operating Temperature: -10 to +70 °C
Life Expectancy: 50000 h

Application
The Maxair 11025B2HL is deployed in instrumentation enclosures, power supplies, industrial control panels, ventilation equipment, and electronic cabinets requiring reliable AC forced-air cooling.
