Description

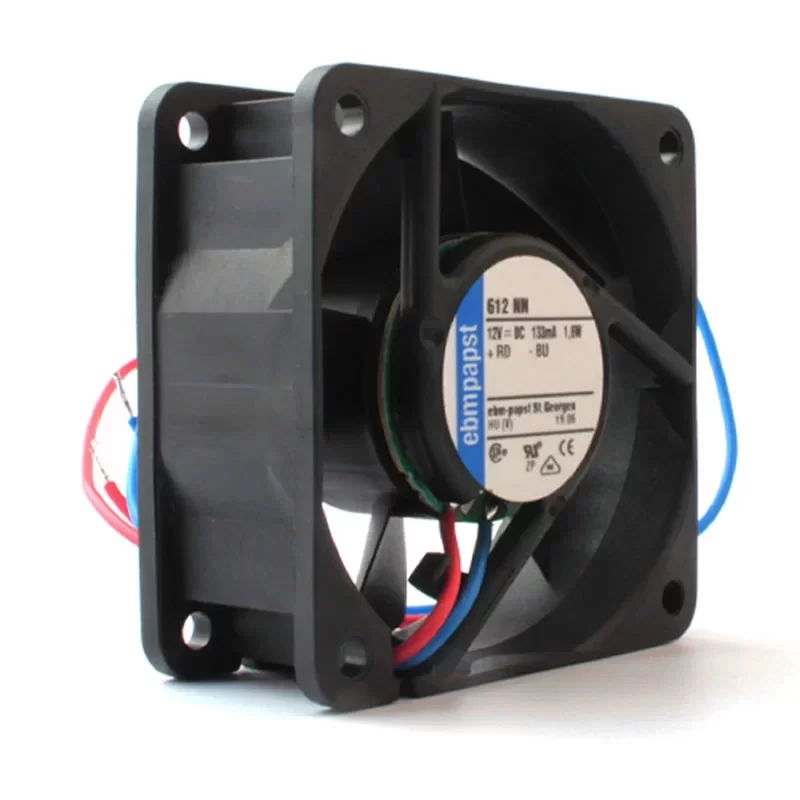

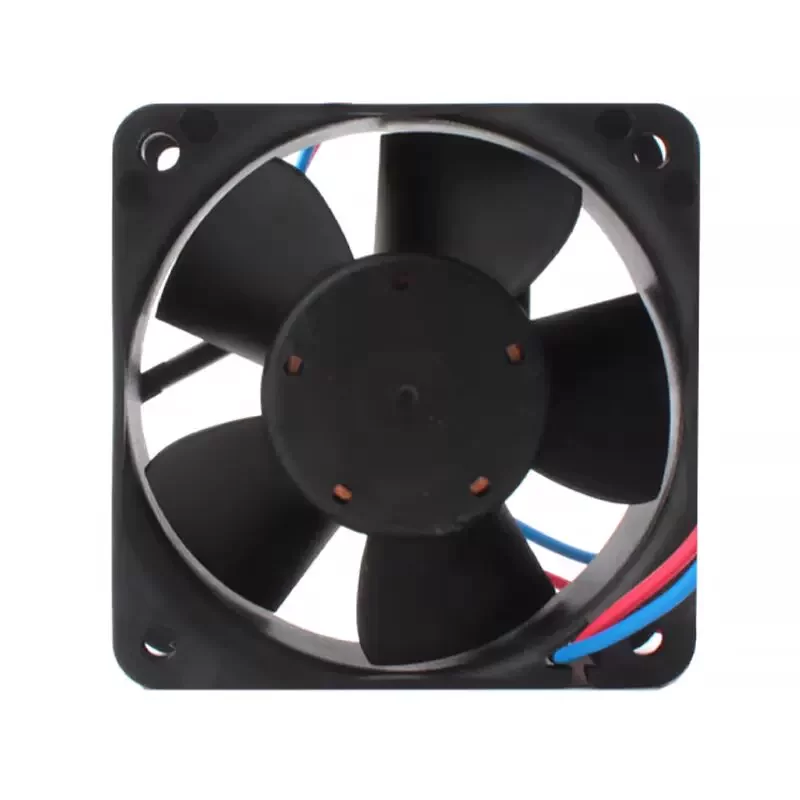

The ebmpapst 612NN (9272206018) is a high-performance 12 VDC DC axial fan with dimensions of 60 x 60 x 25 mm. Featuring dual ball bearings, a fibreglass-reinforced plastic frame (PBT), and a 5-blade fibreglass-reinforced plastic impeller (PA), this compact cooling fan delivers a Working Air Flow of 24.70 CFM (42.0 m³/h / 0.70 m³/min) and a Static Pressure Increase of 5.10 mmH₂O (50.0 Pa / 0.20 inH₂O) at a rated speed of 5,100 RPM. Operating on a nominal voltage of 12 VDC within an operating voltage range of 8.0 – 15.0 VDC, it features a Max. Current Draw of 0.125 A with a Max. Power Consumption of 1.5 W and includes 2-wire lead connections (AWG 22, TR 64). Built for continuous high-reliability operation with reverse polarity and locked-rotor protection, it has a Weight of 0.066 kg, operates at 35.0 dBA within a temperature range of -20 to +70 °C, offers a life expectancy of 70,000 hours, and holds safety certifications including UL, CSA, VDE, CE, and RoHS.
612NN Fan Parameters
Manufacturer: ebmpapst
Model Number: 612NN
Article Number: 9272206018
Alternative Code: VWC0060YUEBS
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 8.0 – 15.0 VDC
Dimensions: 60 x 60 x 25 mm
Impeller Size: 60 mm
Number of Blades: 5
Weight: 0.066 kg
Frame Material: Plastic (Fibreglass-reinforced PBT)
Impeller Material: Plastic (Fibreglass-reinforced PA)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (2 Wires, AWG 22, TR 64)
Motor Protection: Reverse polarity and locked-rotor protection
Rated Speed: 5,100 RPM (min⁻¹)
Max. Current Draw: 0.125 A
Max. Power Consumption: 1.5 W
Max. Air Flow: 24.70 CFM (42.0 m³/h / 0.70 m³/min)
Max. Static Pressure: 5.10 mmH₂O (50.0 Pa / 0.20 inH₂O)
Noise Level: 35.0 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +80 °C
Life Expectancy: 70,000 hours
Safety Approvals: UL, CSA, VDE, CE, RoHS
Application
The ebmpapst 612NN (9272206018) is deployed in compact electronic enclosures, medical equipment, power supply units, IT hardware, telecommunications equipment, and laboratory automation devices requiring compact and quiet cooling.
