Description

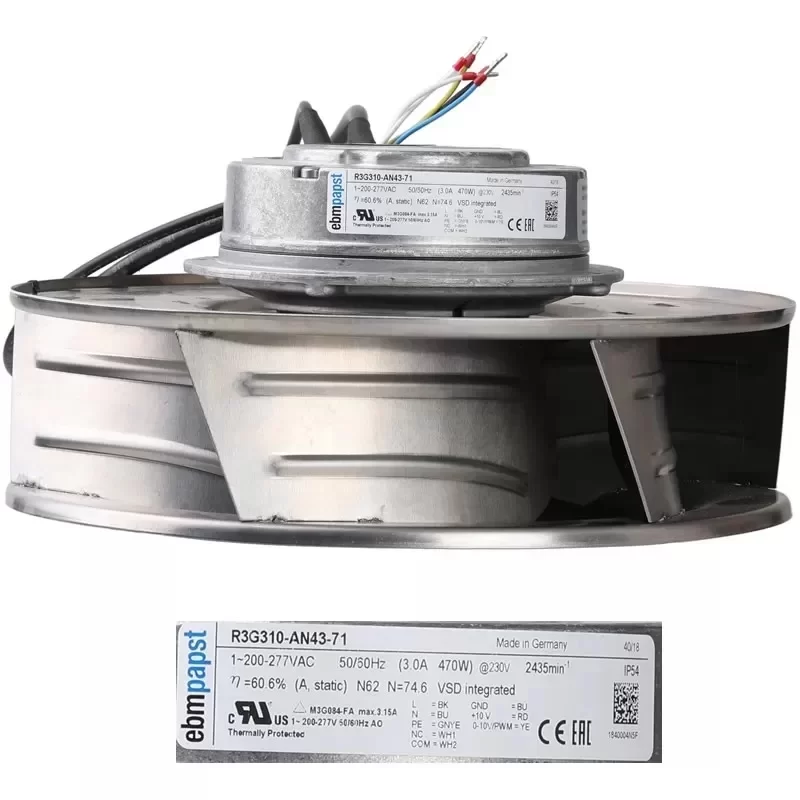

The ebmpapst R3G310-AN43-71 is a high-efficiency 230 VAC EC centrifugal fan with dimensions of Ø 318 x 210 mm. Driven by an M3G084-FA motor, this unit features dual ball bearings, a die-cast aluminum electronics housing, a black-painted rotor, and a 6-blade sheet aluminum backward-curved impeller. It delivers a Working Air Flow of 1065.3 CFM (1810.0 m³/h / 30.17 m³/min) and a Static Pressure Increase of 51.70 mmH₂O (507.0 Pa / 2.04 inH₂O) at a rated speed of 2,435 RPM. Operating on a single-phase nominal voltage of 230 VAC (50/60 Hz) within an operating voltage range of 200 – 277 VAC, it features a Max. Current Draw of 3.0 A with a Max. Power Consumption of 470 W. Equipped with a 0-10 VDC / PWM control interface, 10 VDC output (max 1.1 mA), alarm relay, soft start, and line undervoltage detection, it provides IP54 protection, insulation class B, protection class I, and operates continuously (S1) within an ambient temperature range of -25 to +45 °C (storage -40 to +80 °C). Weighing 4.56 kg, it carries safety certifications including CSA, CCC, EAC, UL, CE, and RoHS.
R3G310-AN43-71 Fan Parameters
Manufacturer: ebmpapst
Model Number: R3G310-AN43-71
Motor Model: M3G084-FA
Type: EC Centrifugal Fan (Backward-Curved, Single-Intake)
Phase: 1~
Nominal Voltage: 230 VAC
Operating Voltage Range: 200 – 277 VAC (50/60 Hz)
Dimensions: Ø 318 x 210 mm
Impeller Size: 310 mm
Motor Size: 84
Number of Blades: 6
Weight: 4.56 kg
Electronics Housing Material: Die-cast aluminum
Impeller Material: Sheet aluminum
Rotor Surface: Painted black
Bearing Type: Ball Bearing
Direction of Rotation: Clockwise, viewed toward rotor
Power & Control Connection: Variable lead wires / cable
Technical Features: 10 VDC output (max 1.1 mA), Alarm relay, Motor current limitation, Soft start, Control input 0-10 VDC / PWM, Line undervoltage detection
Motor Protection: Thermal overload protector (TOP) internally connected
Degree of Protection: IP54
Insulation Class: “B”
Environmental Protection Class: H1
Protection Class: I (with customer protective earth connection)
Operation Mode: S1
Touch Current: <= 3.5 mA
Rated Speed: 2,435 RPM (min⁻¹)
Max. Current Draw: 3.0 A
Max. Power Consumption: 470 W
Max. Air Flow: 1065.3 CFM (1810.0 m³/h / 30.17 m³/min)
Max. Static Pressure: 51.70 mmH₂O (507.0 Pa / 2.04 inH₂O)
Operating Temperature: -25 – +45 °C
Storage Temperature: -40 – +80 °C
Safety Approvals: CSA (C22.2 No. 77 + CAN/CSA-E60730-1), CCC, EAC, UL (1004-3 + 60730-1), CE, RoHS
Application
The ebmpapst R3G310-AN43-71 is deployed in air handling units (AHU), computer room air conditioning (CRAC) systems, cleanroom ventilation, industrial cabinet cooling, heat pumps, and high-efficiency commercial HVAC equipment.
