Description

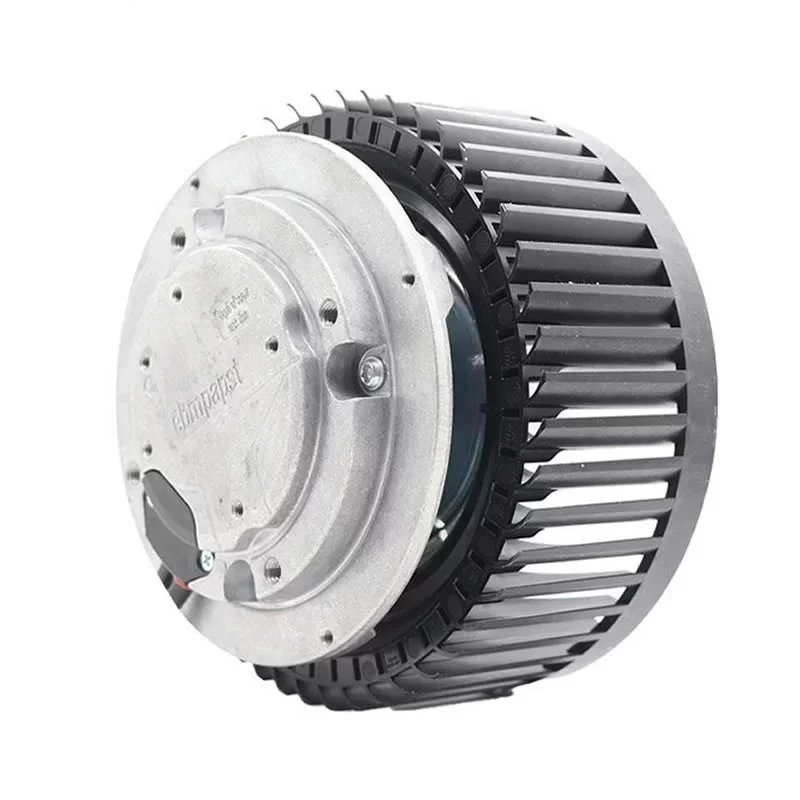

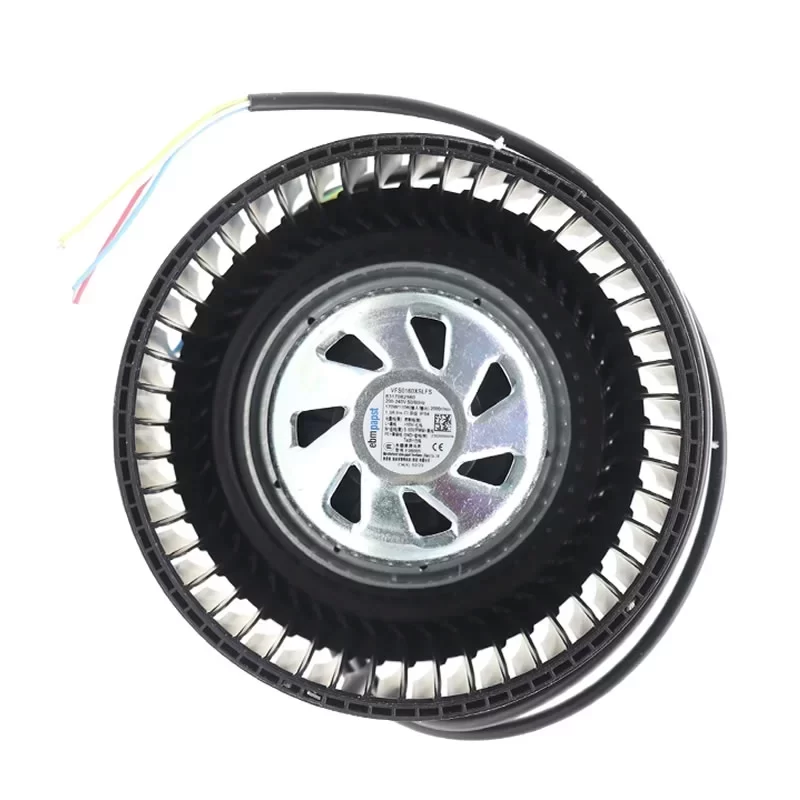

The ebmpapst 8317082560 (VFS0160XSLFS) is a high-efficiency 230 VAC EC centrifugal fan with dimensions of Ø 160 x 98 mm. Driven by an E06005 permanent magnet DC motor, this forward-curved single-intake centrifugal fan features dual ball bearings, IP54 protection, and insulation class B construction. Operating on a nominal voltage of 230 VAC (200 – 240 VAC, 50/60 Hz), it delivers a rated speed of 2,000 RPM with a Max. Current Draw of 1.3 A and a Max. Power Consumption of 170 W (110 W output). Designed with separate power and control lead connections, it includes line wires for power (L=Black, N=Blue, PE=Yellow/Green) and signal control (+10V=Red, 0-10V/PWM=Yellow, GND=Blue, Tach=White). Built for continuous industrial duty, it holds safety certifications including CCC, CE, and RoHS.
8317082560 (VFS0160XSLFS) Fan Parameters
Manufacturer: ebmpapst
Item Number: 8317082560
Designation Code: VFS0160XSLFS
Motor Model: E06005 (Permanent Magnet DC Motor)
Type: EC Centrifugal Fan (Forward-Curved, Single-Intake)
Phase: 1~
Nominal Voltage: 230 VAC
Operating Voltage Range: 200 – 240 VAC (50/60 Hz)
Dimensions: Ø 160 x 98 mm
Impeller Size: 160 mm
Bearing Type: Ball Bearing

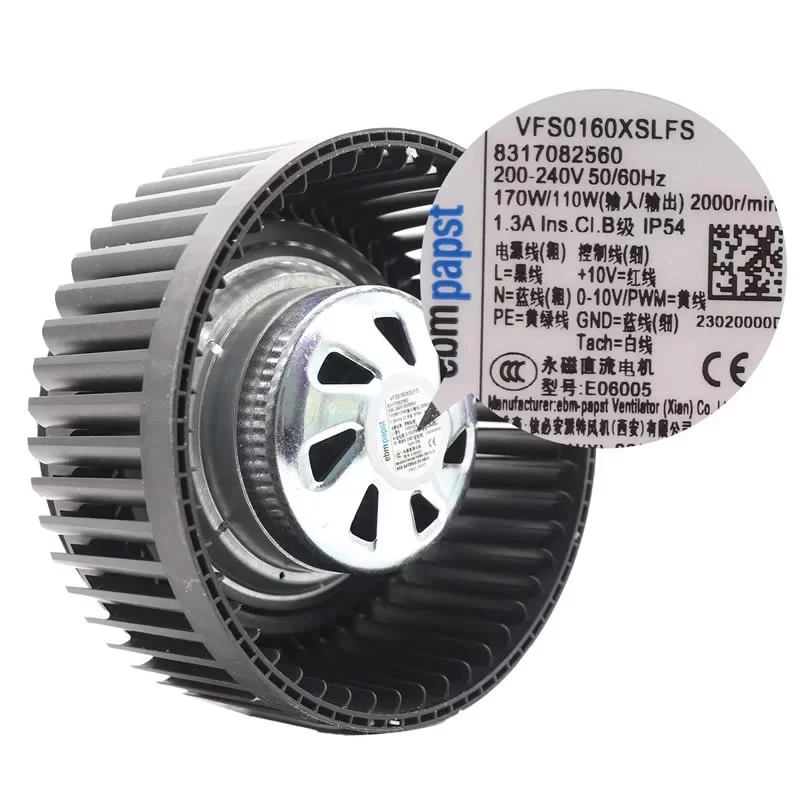

Power Connection Type: Lead Wires (Power Cable: L=Black, N=Blue, PE=Yellow-Green)
Control Interface: Signal Cable (+10V=Red, 0-10V/PWM=Yellow, GND=Blue, Tach=White)
Degree of Protection: IP54
Insulation Class: “B”
Rated Speed: 2,000 RPM (min⁻¹)
Max. Current Draw: 1.3 A
Max. Power Consumption: 170 W (Input) / 110 W (Output)
Safety Approvals: CCC, CE, RoHS
Application
The ebmpapst 8317082560 (VFS0160XSLFS) is deployed in industrial ventilation systems, electronic cabinet cooling units, air conditioning filtration modules, heat recovery ventilation, and compact HVAC equipment requiring energy-efficient forward-curved EC blowers.
