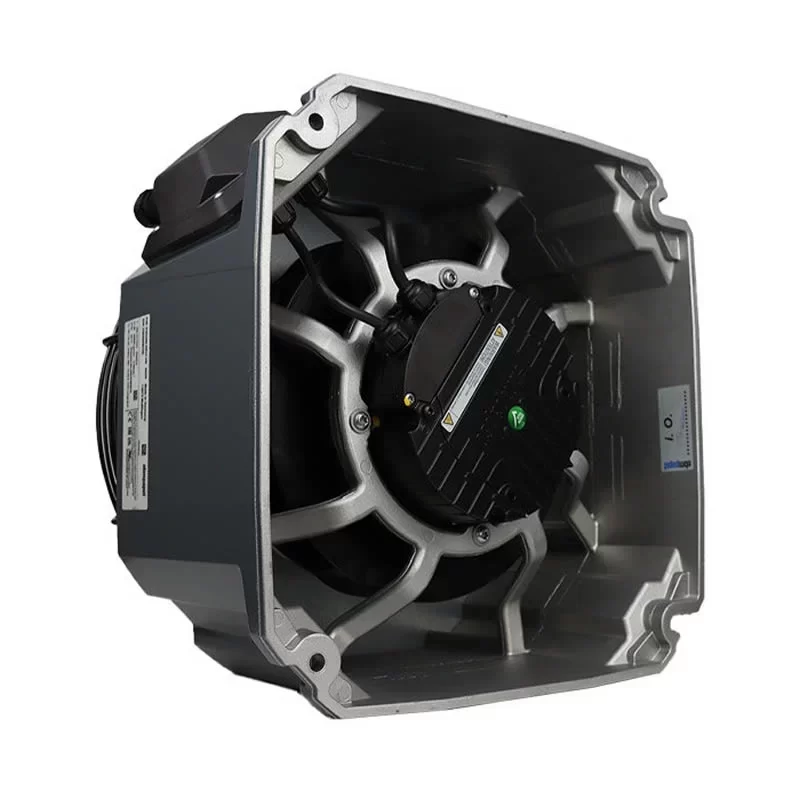

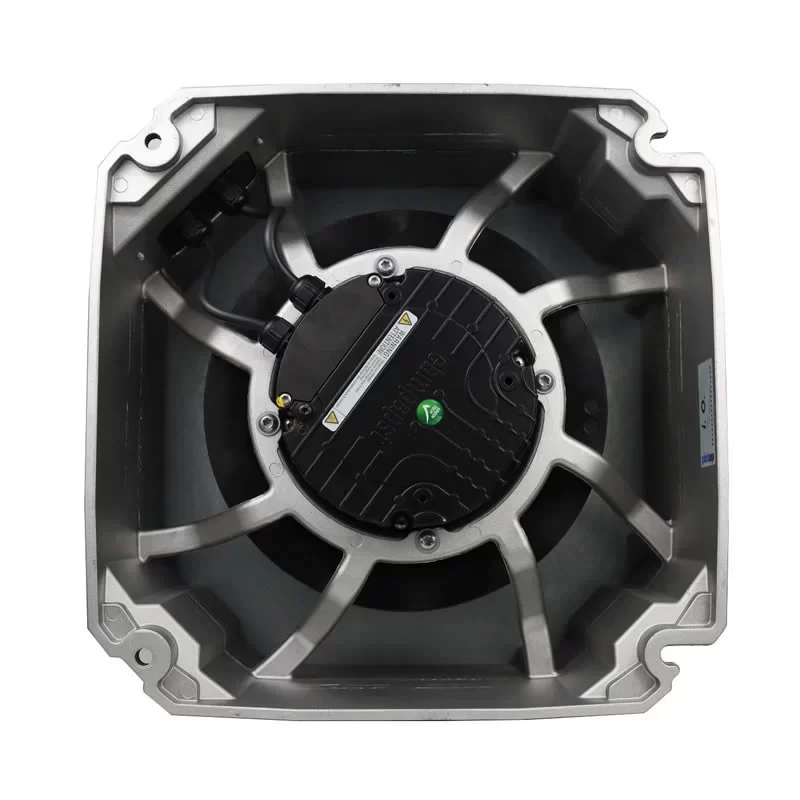

K3G250-RR17-H9 A5E37084910 ebmpapst 230V EC Centrifugal Fan

Description

The ebmpapst K3G250-RR17-H9 (Siemens A5E37084910) is a high-performance 230 VAC EC centrifugal fan with dimensions of Ø 250 x 156 mm. Engineered in Germany as an OEM cooling component for Siemens drive systems, this single-phase backward-curved fan features an integrated Variable Speed Drive (VSD), dual ball bearings, and IP55 ingress protection for demanding industrial environments. Delivering a Working Air Flow of 1412.00 CFM (2400.0 m³/h / 40.00 m³/min) and a Static Pressure Increase of 86.70 mmH₂O (850.0 Pa / 3.41 inH₂O) at a rated speed of 3,100 RPM, it operates on a nominal voltage of 230 VAC within an operating voltage range of 200 – 277 VAC (50/60 Hz). At rated operation (230 V), it features a Max. Current Draw of 1.3 A with a Max. Power Consumption of 300 W and achieves an overall static efficiency of 49.7%. Built for continuous heavy-duty service, it operates in ambient temperatures up to +60 °C and holds safety certifications including CE and RoHS.

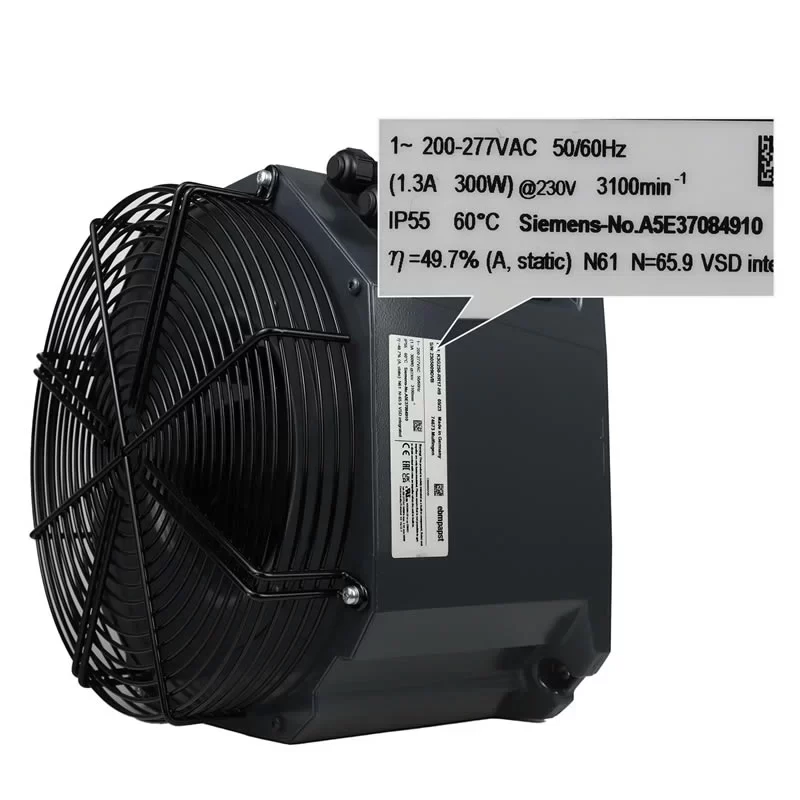

K3G250-RR17-H9 (A5E37084910) Fan Parameters
Manufacturer: ebmpapst / Siemens
Model Number: K3G250-RR17-H9
Siemens Part Number: A5E37084910
Type: EC Centrifugal Fan (Backward-Curved)
Phase: 1~
Nominal Voltage: 230 VAC
Operating Voltage Range: 200 – 277 VAC (50/60 Hz)
Impeller Size: 250 mm
Motor Features: VSD Integrated
Bearing Type: Ball Bearing
Degree of Protection: IP55
Rated Speed: 3,100 RPM (min⁻¹)
Max. Current Draw: 1.3 A (@ 230 VAC)
Max. Power Consumption: 300 W (@ 230 VAC)
Max. Air Flow: 1412.00 CFM (2400.0 m³/h / 40.00 m³/min)
Max. Static Pressure: 86.70 mmH₂O (850.0 Pa / 3.41 inH₂O)
Overall Static Efficiency (η): 49.7%
Efficiency Grade: N61 (N=66)
Max. Operating Temperature: +60 °C
Country of Origin: Made in Germany
Safety Approvals: CE, RoHS

Application
The ebmpapst K3G250-RR17-H9 (Siemens A5E37084910) is deployed in Siemens SINAMICS S120 / G120 frequency converters, industrial variable speed drive (VSD) cabinets, high-power inverter enclosures, and heavy-duty automation systems requiring IP55-rated forced-air thermal management.
