Description

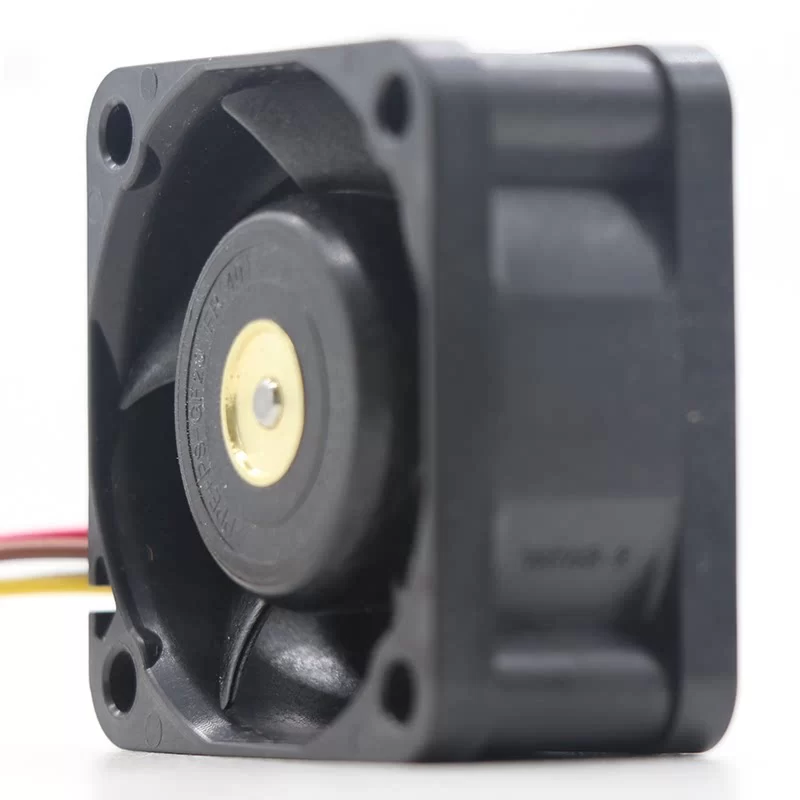

The Sanyo Denki 9GA0424P6H001 is a high-performance 24 VDC DC axial fan with dimensions of 40 x 40 x 20 mm (San Ace 40 series). Featuring dual ball bearings, a molded plastic frame, and a precision plastic impeller, this compact cooling fan delivers a Working Air Flow of 11.70 CFM (19.9 m³/h / 0.33 m³/min) and a Static Pressure Increase of 1.95 mmH₂O (191.0 Pa / 0.77 inAq) at a rated speed of 12,400 RPM. Operating on a nominal voltage of 24 VDC within an operating voltage range of 20.4 – 27.6 VDC, it features a Max. Current Draw of 0.08 A with a Max. Power Consumption of 1.92 W and includes 4 lead wires supporting integrated PWM speed control and pulse sensor (tachometer) output. Built for continuous high-density thermal management, it has a Weight of 0.035 kg, operates at 40.0 dBA within an ambient temperature range of -20 to +70 °C, offers a life expectancy of 60,000 hours (at 60 °C), and holds international safety approvals.
9GA0424P6H001 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GA0424P6H001
Product Range: San Ace 40
Type: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 20.4 – 27.6 VDC
Dimensions: 40 x 40 x 20 mm
Frame Size: 40 mm
Frame Thickness: 20 mm
Weight: 0.035 kg
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Bearing Type: Ball Bearing
Power Connection Type: Lead Wires (4 Wires)
Control Interface: PWM Speed Control & Pulse Sensor (Tachometer)
Motor Protection: Locked Rotor Protection / Reverse Polarity Protection
Rated Speed: 12,400 RPM (min⁻¹)
Max. Current Draw: 0.08 A
Max. Power Consumption: 1.92 W
Max. Air Flow: 11.70 CFM (19.9 m³/h / 0.33 m³/min)
Max. Static Pressure: 1.95 mmH₂O (191.0 Pa / 0.77 inAq)
Noise Level: 40.0 dBA
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Life Expectancy: 60,000 hours (at 60 °C)
Safety Approvals: UL, CSA, TUV, CE, RoHS
Application
The Sanyo Denki 9GA0424P6H001 is deployed in 1U servers, storage systems, telecommunications equipment, power supplies, and high-density industrial electronics requiring efficient forced-air cooling in compact enclosures.
