Description

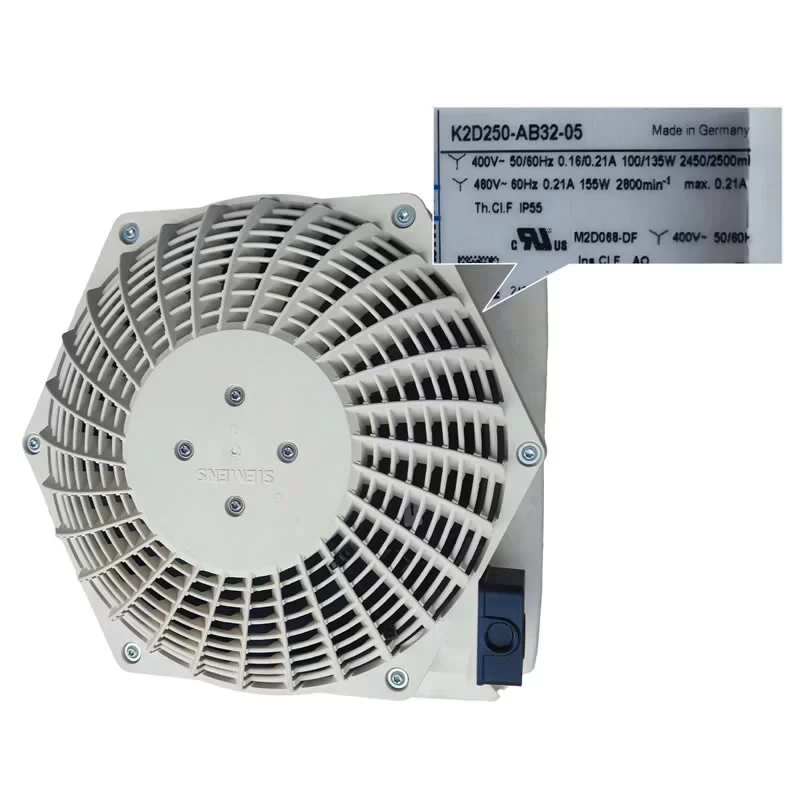

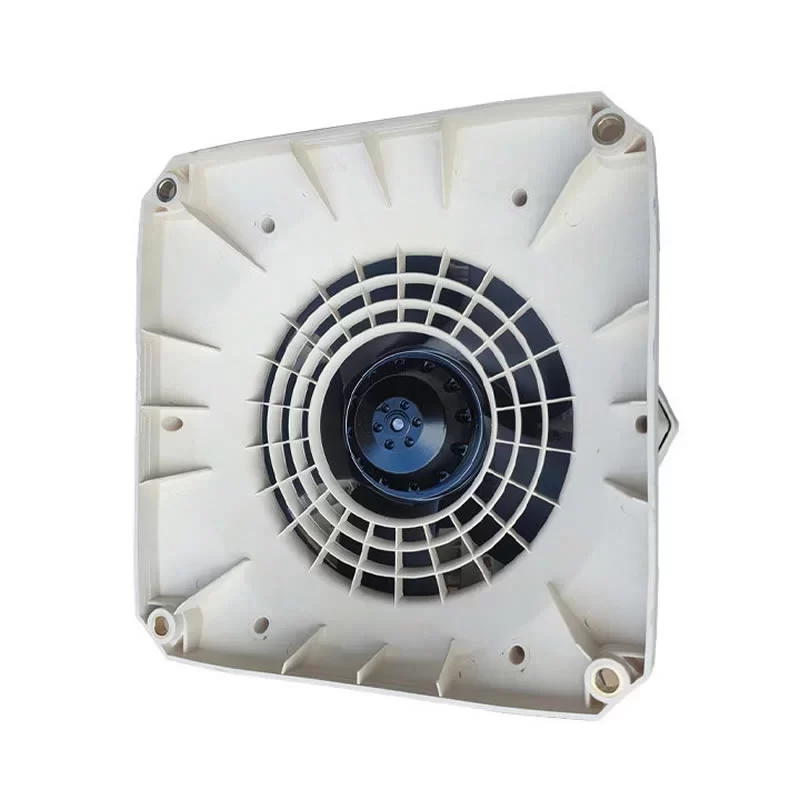

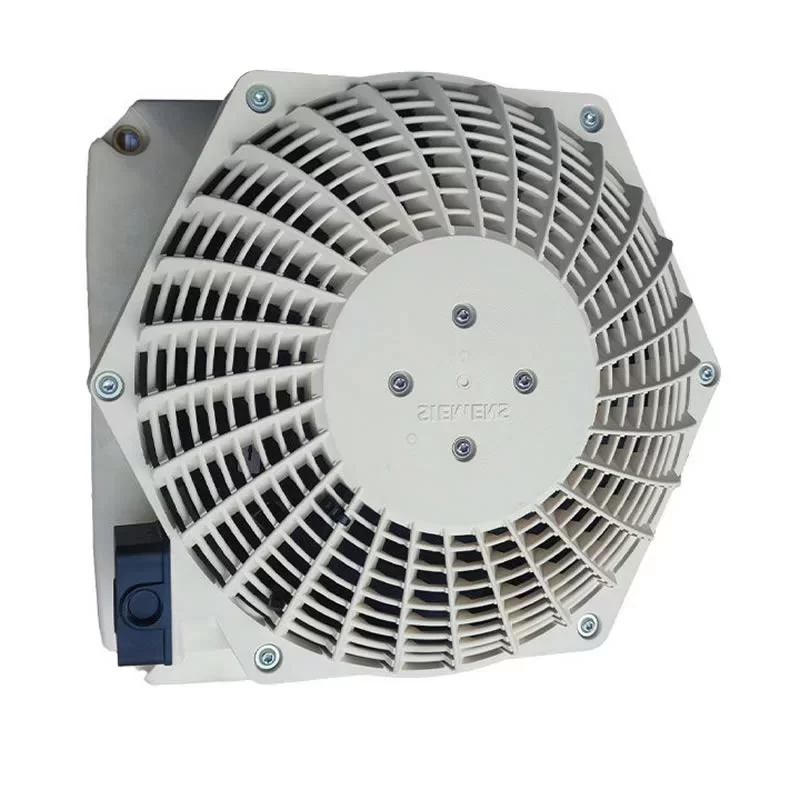

The ebmpapst K2D250-AB32-05 is a high-performance 400 / 480 VAC AC axial fan, with Impeller Size of 250mm. Driven by a robust M2D068-DF 3-phase AC motor, this industrial cooling fan features a Y (Star) electrical connection, dual ball bearings, IP55 protection, and insulation class F construction. Operating on a nominal voltage of 400 VAC (50/60 Hz) or 480 VAC (60 Hz), it delivers precise multi-frequency performance: at 400 VAC, it draws 0.16 / 0.21 A with a Max. Power Consumption of 100 / 135 W and a rated speed of 2,450 / 2,500 RPM. At 480 VAC, it operates at a peak 2,800 RPM with a Max. Current Draw of 0.21 A and a Max. Power Consumption of 155 W. Manufactured in Germany for demanding continuous-duty factory environments, it holds safety certifications including cURus.
K2D250-AB32-05 Fan Parameters
Manufacturer: ebmpapst
Model Number: K2D250-AB32-05
Motor Model: M2D068-DF
Type: AC Axial Fan
Phase: 3~
Motor Wiring: Y (Star Connection)
Nominal Voltage: 400 / 480 VAC
Frequency: 50 / 60 Hz
Impeller Size: 250 mm
Bearing Type: Ball Bearing
Degree of Protection: IP55
Insulation Class: “F”
Rated Speed: 2,450 / 2,500 RPM (@ 400 VAC) / 2,800 RPM (@ 480 VAC)
Max. Current Draw: 0.16 / 0.21 A (@ 400 VAC) / 0.21 A (@ 480 VAC)
Max. Power Consumption: 100 / 135 W (@ 400 VAC) / 155 W (@ 480 VAC)
Country of Origin: Made in Germany
Safety Approvals: cURus
Application
The ebmpapst K2D250-AB32-05 is deployed in industrial servo motors, CNC spindle drives, variable frequency drives (VFD), automation control cabinets, and heavy-duty robotics equipment requiring reliable 3-phase forced-air thermal management.
